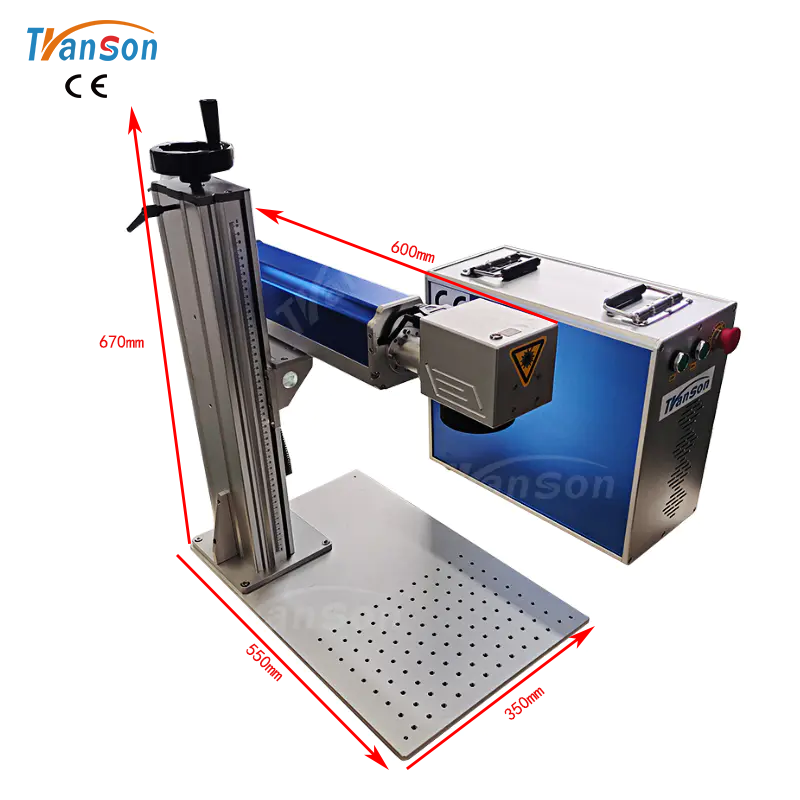

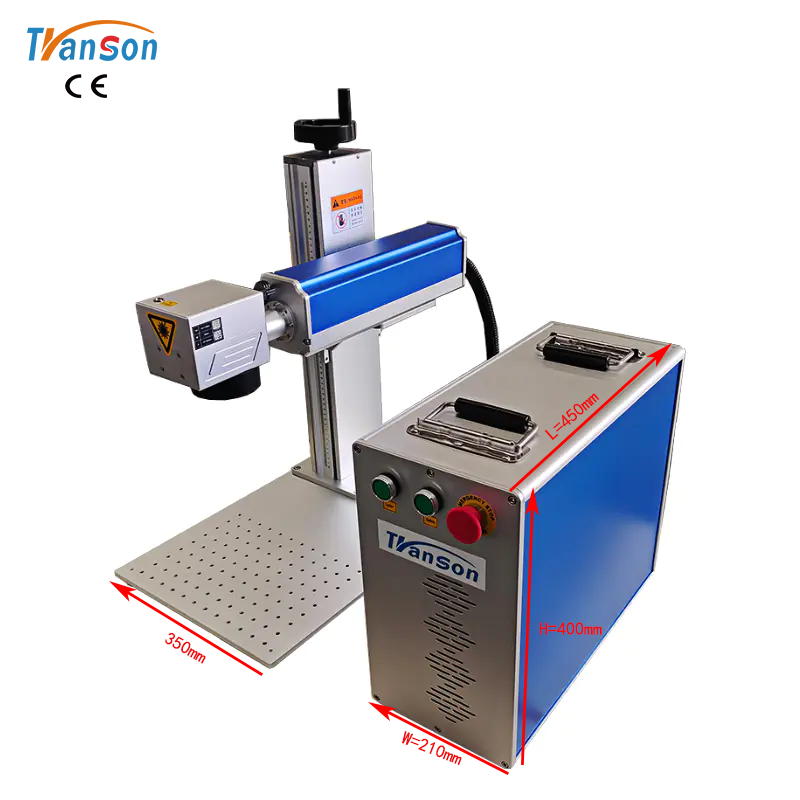

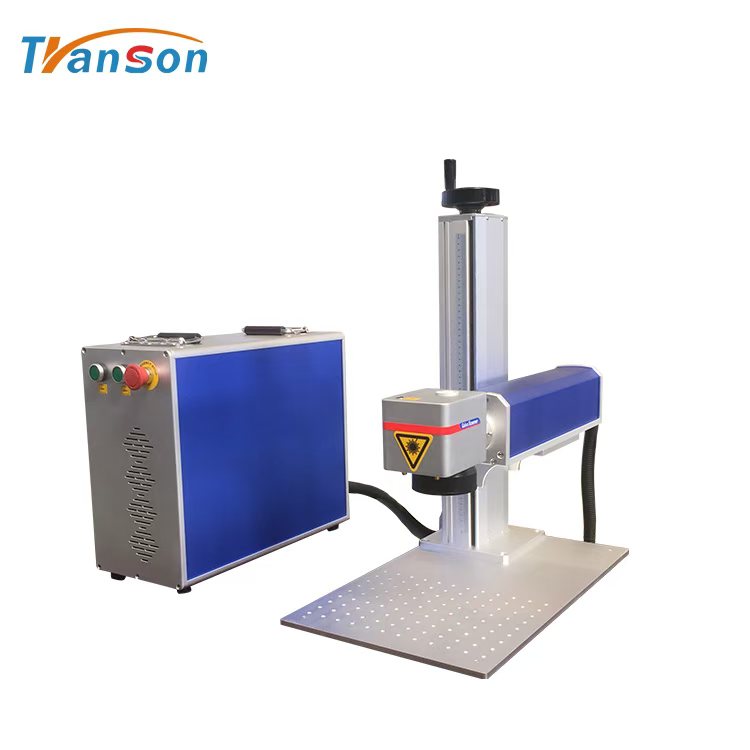

Wholesale Mini fiber laser Marker 20w 30w 50w

Wholesale Mini Fiber Laser

Marker 20w 30w 50w 100w

Power: 20w 30w
Fiber model: Q switch or Mopa
Field lens:50*50mm, 75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm
Up and down: Manuel or electric
Rotary Device: Optional

这里可以自定义设置

WHOLESALE MINI

FIBER LASER MARKER

20W 30W 50W 100W

1, Faster Marking Solutions for Metal and Nonmetal Materials

2, 50W above with cutting ability for thin silver, gold, aluminum.

3, Long Life Span, High Precision, Low maintenance

4, CE FDA certified

Machine Videos

Laser marking can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

aluminum deep mark,brass cut, photo mark, rotary device ring mark

QR code mark on stainless steel 20w 1x1cm

Parameter

Model	TSF-20	TSF-30	TSF-50	TSF-100
Laser Power	20w	30w	50w	100w
Laser Wavelength	1064nm
Q-frequency	20-80KHZ	30-60KHZ	50-100KHZ	1-4000khz
Divergence	0.3mard
Marking Range	7575mm,150150mm,175175mm,200200mm,300*300mm,optional
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics
Marking Format	Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batchnumber,Serialnumber,Frequency,etc.
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	<0.5kw
Laser Module Life	>100000 hours
Package size	820mm430mm780mm
Gross Weight	55KGS

PRODUCT DETAILS

Hand Lifting

High-quality materials, high positioning accuracy, stable and convenient.

Focus Lens

Laser focusing lens provides precision laser focusing performance.

Galvanometer Scanner

It is equipped with automatic scanning system, friendly operation process.

Switch

Humanized control system, easy to learn, dust proof design.

Thermal Design

With a cooling hole, dust-proof and thermal design to protect the host computer.

Worktable

Configure the positioning hole for quick and easy positioning, position adjustable.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
