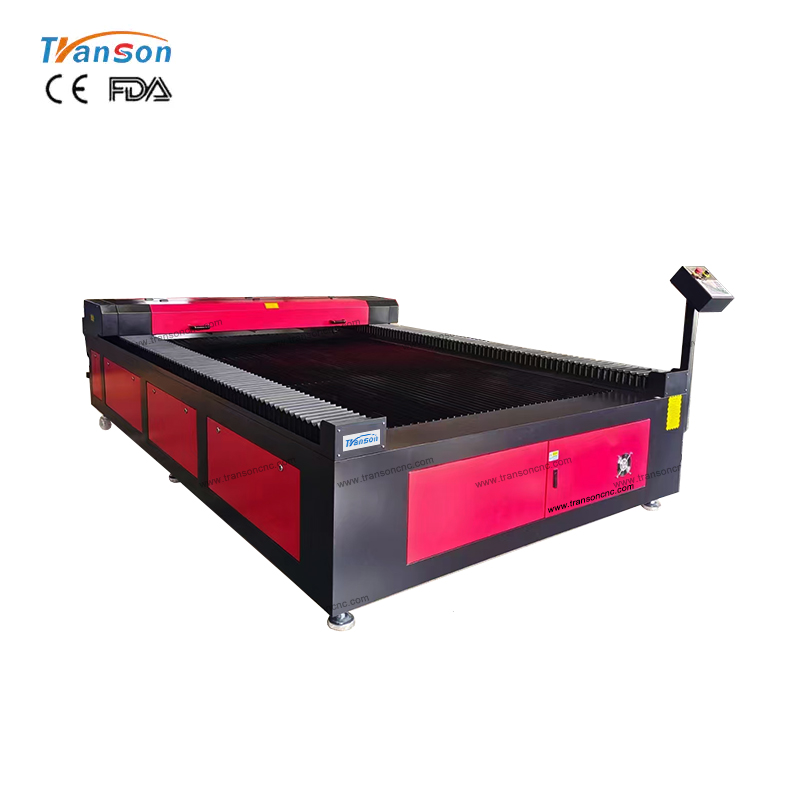

Transon Flatbed CO2 Laser Engraver Cutter 1325

Model:TS1325

Working Area:

1300mm*2500mm/51.18in*98.42in

Laser Power: 80w 100w 130w 150w and more

Tube: Glass tube or Metal tube.

Worktable: Honeycomb, Metal slate, up and down

Other Optional: Red dot pointer, rotary device with clips or roller

这里可以自定义设置
TS1325 laser cut fabric
TS1325 laser cut fabric
TS1325 laser cut 5mm acrylic
TS1325 laser cut 5mm acrylic
TS1325 laser engrave on Silicone bracelet
TS1325 laser engrave on Silicone bracelet
CO2 laser engraver cutter sample shows
CO2 laser engraver cutter sample shows

Transon CNC TN Cabinet Models Co2 Laser Machine

Model

TS1318

TS1325

TS1325D

TS1530

Working Area

130cm*180cm/

          51.18in*70.86in

130cm*250cm/

51.18in*98.42in

130cm*250cm /

51.18in*98.42in

150cm*300cm /

59.05in*118.11in

Laser Power

60w/90w/100w/120w150w/180w

Laser Type

Co2

Worktable

Metal slat/Honeycomb (standard with one)

Engaving Speed

0-70000mm/min

Cutting Speed

0-40000mm/min

Highest Scanning Precision

2500DPI

Power Requirement

110V220V,50HZ/60HZ

Min. Shaping Character

English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Graphic. Format. Supported

BMP, PLT, DST, DXF, Al

Software Supported

Coreldraw, Photoshop, AutoCAD, TAJIMA

Control System

Ruida brand

Machine Work Software

Rdworks

Laser Output Control

1-100% by setting in the software

Interface

USB

Driving System

Stepper

Color Separation

Yes

Optional Part

Upand down worktable/Another worktable/Red dot poiner/Auto focus/Rotary attachment with roler/ Rotary atachment with roller/Rotary attachment with clip

Spare Parts

Exra laser tube/Extra 1 lens and 3 mirrors

Machine size

2980mm*1990mm*990mm

3340mm*1980mm*990mm

3650mm*2180mm*990mm

3840mm*2180mm*990mm

Packing size

2730mm*2070mm*1190mm

3440mm*2080mm*1190mm

3500mm*2260mm*1190mm

3940mm*2280mm*1190mm

Gross weight

950kg

1100kg

1300kg

1150kg



PRODUCT DETAILS

Applicable industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoreation, arts and crafts, electronics and electric appliances, etc.


Applicable Materials:
Double color sheet, acrylic, glass, wood, mdf, bamboo ware, coconut shells, paper, leather, cloth, marble, ceramic tile, shells and other nonmetal materials.
