Advertising CNC Router Cutting Machine For Aluminum Acrylic Plastic  6090 1212 1218



Working area:600x1250mm/1400x1520mm/1400x2150mm
Spindle power: 2.2kw (more power optional)
Motor: Stepper (Hybrid servo / Yaskawa servo / Delta / Leadshine optional)
Worktable:T-slot aluminum / T-slot vacuum optional

这里可以自定义设置

ADVERTISING CNC ROUTER



CUTTING MACHINE





2.2kw water cooling



Mach3 (USB port)


Vacuum table T slot

Machine Videos

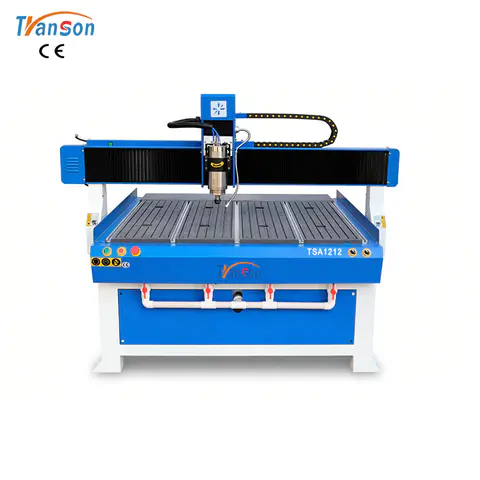

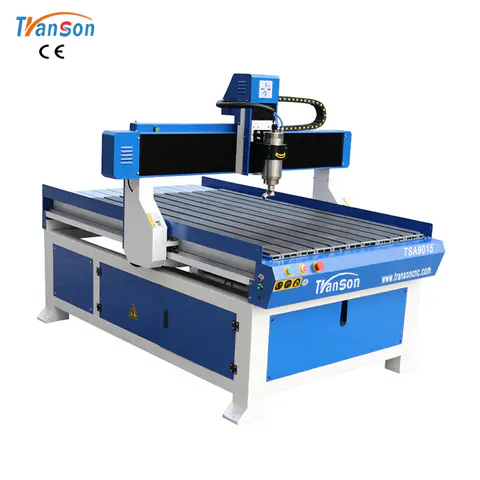

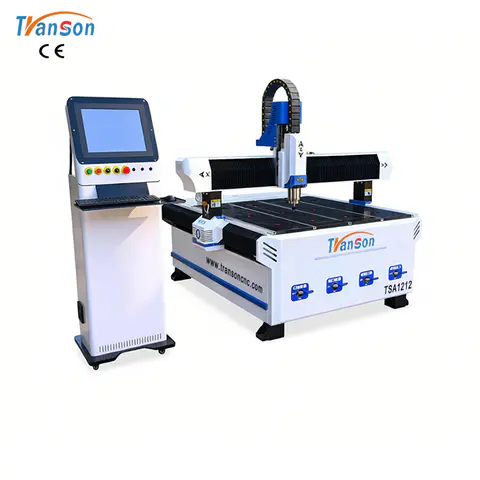

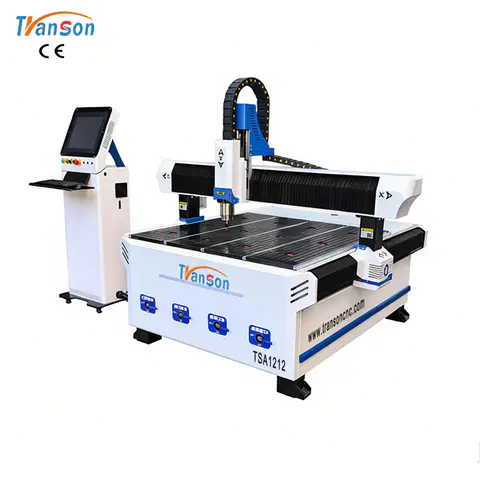

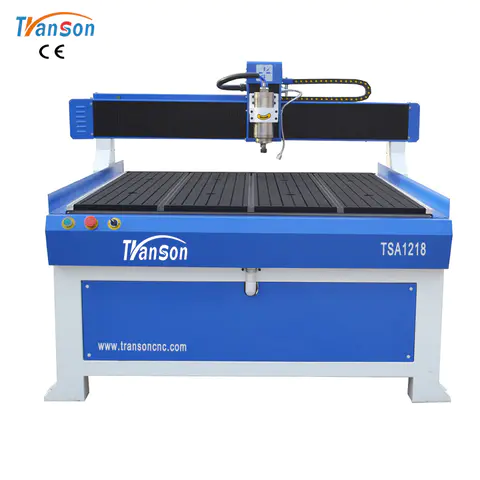

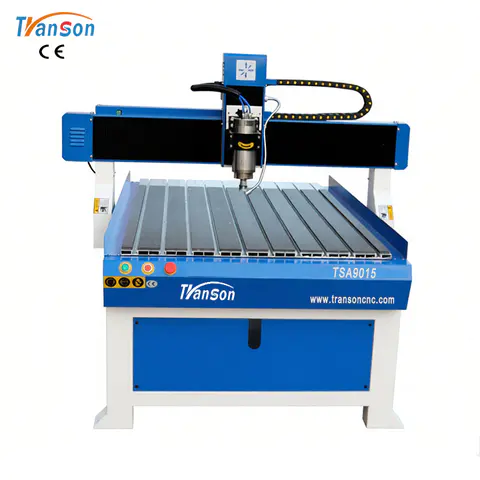

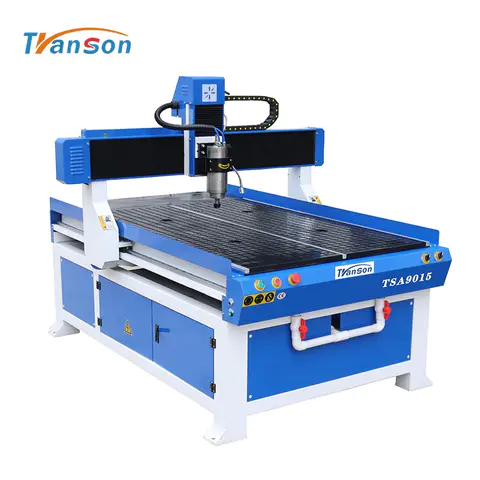

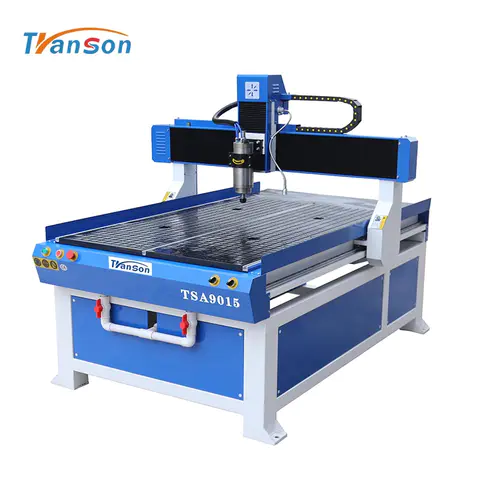

Transon TSA6090 CNC router as a mini CNC router is one of Transon hottest CNC router. It also called small CNC router, home CNC router or diy cnc router. This CNC router 6090 with a whole iron casting strong machine body, aluminum casting gantry and welding cabinet, ball screw transmission way, can widely use in advertising industry, woodworking industry, soft metal craving industry. Standard with 2.2KW water cooling high speed spindle, less noisy and good cooling effect.

Desktop 6090 CNC router do 3D engrave on PVC
Desktop 6090 CNC router do 3D engrave on PVC
Advertising CNC Router Cutting Machine For Aluminum
Advertising CNC Router Cutting Machine For Aluminum
Advertising CNC Router Cutting Machine For Aluminum
Advertising CNC Router Cutting Machine For Aluminum
Advertising CNC Router Cutting Machine For Aluminum
Advertising CNC Router Cutting Machine For Aluminum

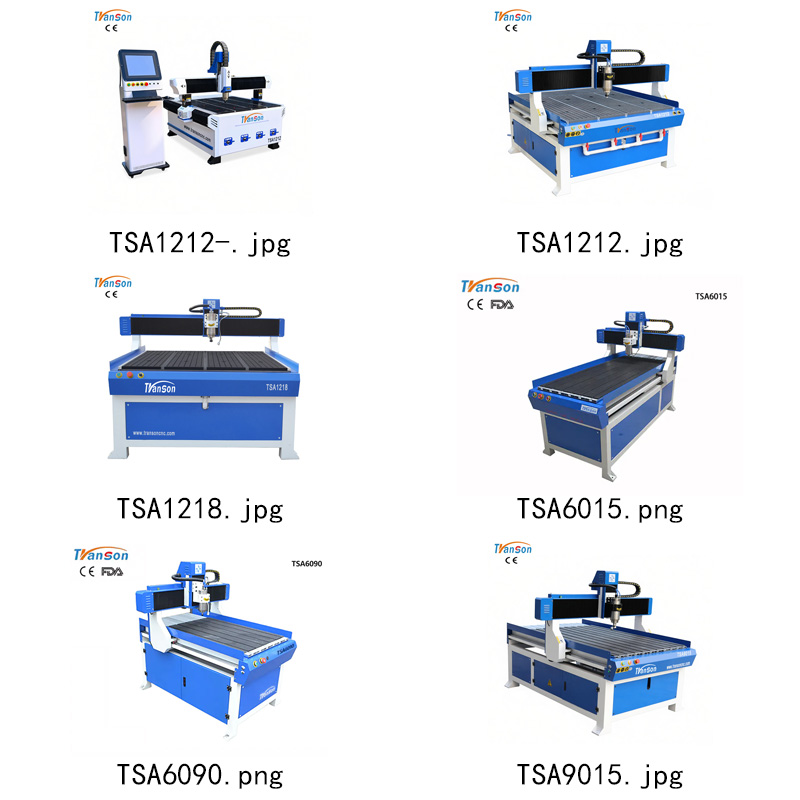

Model

TSA6090

TSA6015

TSA9015

TSA1212

TSA1218

TSA1224

XYZ axis travel distance

600x900x150mm

600x1500x150mm

950x1550x150mm

1250x1200x150mm

1250x1800x150mm

1250x2450x150mm

Feeding height

150mm

Table size

600x1250mm

              600*1830mm

1000x1830mm

1400x1520mm

1400x2150mm

1400x2830mm

Spindle power

2.2kw water cooling(0-24000RPM)

Rail type

linear rails

Control system

Mach3 (USB port)

Drive type

Stepper

Transmit

ballscrew

Table type

Aluminum profile T slot clamping

Max travel speed

12000mm/min

12000mm/min

8000mm/min

8000mm/min

6000mm/min

6000mm/min

Working precision

0.05mm

Power

AC220V±10%/50~60Hz

Compatible Software

Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc

Command code

HPGL, G code

Machine/packing size

1.35*1.1*1.3m/1.49*1.24*1.5m

1.82*1.1*1.32m/1.96*1.24*1.54m

1.8*1.49*1.32m/2.13*1.62*1.6m

1.61*1.79*1.32m/1.76*1.93*1.6m

2.24*1.79*1.32m/2.5*1.93*1.52m

2.92*1.79*1.32m/ 3.05*1.93*1.52m

Net/Gross weight

300kg / 350kg

500kg / 550kg

500kg / 600kg

500kg / 600kg

700kg/800kg

700kg / 800kg


PRODUCT DETAILS

Attachment

APPLICATION

Wide range of application:

Except for advertising work. It is mainly designed for woodworking,any kinds of wood and plastic material processing work, door making,furniture making etc.



Suitable for Materials:

Engrave and cut on soft wood,hard wood, MDF, Aluminum and plastic composite panel,

Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet,PCB Aluminum sheet etc.
