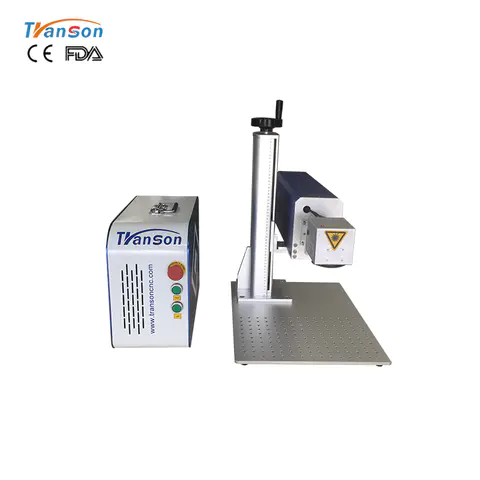

CO2 RF Laser Marking Machine with Synrad Metal Laser Tube 30W



Power: 30w
CO2 laser source brand: DAVI, Synrad, Coherent

Field lens: 100*100mm,200*200mm, 300*300mm

Up and down: Manuel or electric

Rotary Device: Optional

这里可以自定义设置

TRANSON CNC Mini CO2 RF



Laser Marking Machine





CO2 Marking Solutions of Nonmetal Materials


Long Life Span, High Precision, Low maintenance

  Machine Videos

Synrad 30W RF tube CO2 laser marking machine mark on MDF,wood, acrylic, leather, plywood
Co2 laser marking machine 30W marking Glass material
Co2 laser marking machine 30W marking Plastic material
Co2 laser marking machine 30W marking Ceramic material
Co2 laser marking machine 30W marking Ceramic material

TRANSON CNC CO2 RF Laser Marking Machine-Mini

Type

TS-CO2-30W

Laser power

30W

Laser Wavelen gth

10 . 6μm

Laser Repetition Fre quency

≤25KHZ

Marking Area

100mm*100mm / 200mm*200mm

Marking Deep

≤0 . 3mm

Linear Speed

≤7000mm / s

Min.Line Width

0 . 1mm

Min.Letter

0 . 4mm

Repeatable Accuracy

±0.01mm

Gross Power

0.8-1 5KW

Power Requirement

220V / 50HZ

Package size1180mm*630mm*510mm
Grosse weight80kg

Cooling system

Air Cooling

Machine size
1000mm*700mm*400mm
Packing size1080mm*780mm*410mm
Gross weight82kg

PRODUCT DETAILS

STANDARD PARTS OF Mini CO2 RF Laser



Marking Machine:

OPTIONAL PARTS OF Mini CO2 RF Laser Marking Machine:

2D worktable

This worktable can move from left to right, from front to back, so the working area can be enlarged.

Rotary device

Rotary device can use to fix the object when marking on the inner and outer surface of it, the object within 80mm diameter.

Lens field

There are different sizes of focusing lenses available, such as, 50*50mm, 75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm.

Laser goggles

Can help protect the eyes of operator.

Outside red dot pointer

When outside red dot point meet inner red dot pointer, means find the correct laser focus distance, no need
find the distance by ruler.

APPLICATION

TRANSON CNC Mini CO2 RF Laser Marking Machine

Applicable Industries
RF CO2 Laser Marking Machine is widely used in shoes, clothing, packaging, toys, food, beverages, glasses, communication products, auto parts, luggage buckle, medicine, cosmetic, beverage, wine, mineral water,chemical products, tobacco, plastic & rubber product accessories, building materials and other manufacturing products or packaging.


Applicable Materials
Paper, plastics, wood, glass, acrylic, painted pottery, leather and other non-metallic materials and oxidation plating paint.

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.
