Tsw1530 Stone Engraving Machine Double Headed With 2 Rotary Device Carving...

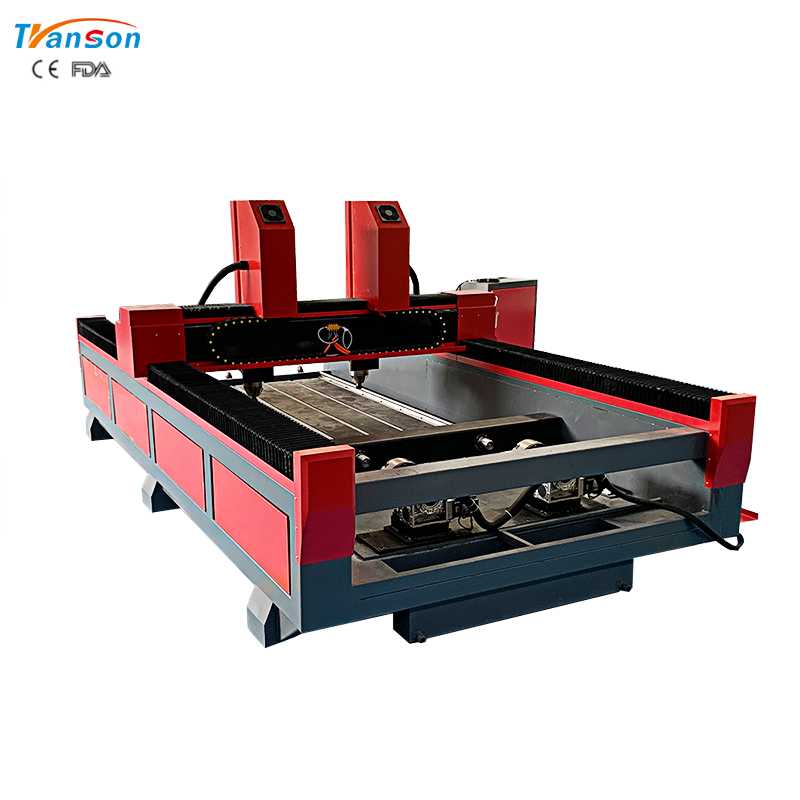

TSW1530 Stone Engraving Machine double headed with 2 Rotary device carving machine for stones

Heavy duty machine boday
Spindle: 5.5kw Water Cooling
Feeding height(Z axis high):300mm standard (400mm or others optional)
Control System: DSP 4 xis axis control system
Drive type: Stepper motor and driver

这里可以自定义设置

TSW CNC ROUTER

FOR STONE-Heavy duty

● Transon CNC TSW Model

● Stone Engraving Machine

● 5.5kw Water Cooling Spindle

● Stepper motor and driver

● DSP 4 xis axis control system

● 200mm diameter rotary device*2

Machine Videos

Heavy duty stone cnc router engraving machine for marble/granite/blue stone all kinds of stone engraving, spindle power is 5.5kw, control system is Mach3- USB.

TSW CNC ROUTER FOR STONE

Parameter

Model	TSW1530 Stone Engraving Machine double headed with 2 Rotary device
X Y working area	1500*3000mm
Feeding height(Z axis high)	300mm standard (400mm or others optional)
Spindle power	5.5KW
Cooling way	Water cooling
Control System	DSP 4 xis axis control system
Rotary device	200mm diameter rotary device*2
Drive type	Stepper motor and driver
Rails slide	Square rail way
Transmit way	X,Y Rack and pinion,Z Ballscrew
Max Speed	20000m/min
Working speed	12000m/min
Command code	HPGL, G code
Repeatability	0.01 mm
Water nozzle	With
Power	AC220V/380v ±10% / 50~60Hz
Holding way	Clamp fixed
Cutter diameter	3.175-20mm
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V10 etc
Package size	3.7m2.28m1.85m
Weight	N.W.:2200KG / G.W.:2400KG
