Tsw1550hd-atc-round Disk Cnc Router

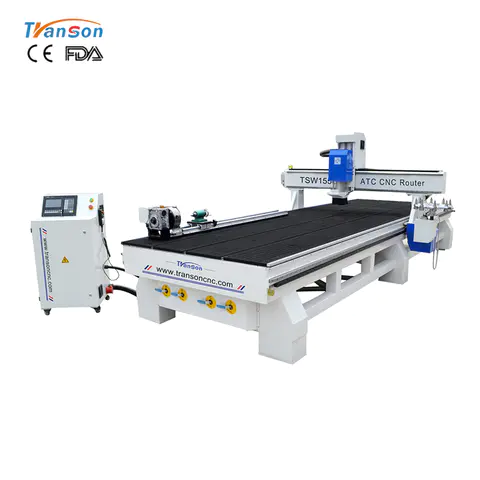

Tsw1550HD-atc-round disk cnc router

Model:TSW1550HD ATC

Working Area:1500x5000mm

Spindle power: 5.5kw water cooling ATC(9KW air cooling optional)

Worktable: T-slot aluminum /T-slot vacuum

Motor: Stepper /Hybrid servo / Servo

这里可以自定义设置

TSW1550HD-ATC-ROUND

DISK CNC ROUTER

Cutting, Drilling, Carving Solution of Wood,

Plastic, Other Materials

Precise, Efficient And Affordable

Machine Videos

Transon carousel type ATC CNC router with a disc magazine ATC placed on the side of the gantry, this type of automatic tool changer engraving machine is not limited by the number of tools and has better stability. It also guarantees the processing accuracy of the machine and ensures that the ATC CNC router machine will be used for a long time without affect processing accuracy. It is mainly for Wood carving, MDF or Plywood engraving, marbles carving, cabinet and doors making, etc. What's more, this 4 axis CNC router with a rotary device also suit for doing cylinder craving work like chairs legs, columns, etc.

Engraving MDF

Parameter

Model	TSW-ATC-round disk
X,Y Worksize	13002500mm/15003000mm/1500x 4000mm
Z-axis worksize	200mm
Control system	SYNTECH
Spindle power	9kw water cooling (0-24000rpm)
ATC tools type and number	8 pcs, round type
Motor	Servo motor
Transmit	XY gear rack and Z ballscrew ,Square rail guide
Working Speed	0-50000mm/min
Command code	HPGL, G code
Working precision	0.05mm
Power	AC220V / V380±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V9 etc
Machine size/PKG size	3.552.61.62m/ 3.672.131.86m
N.W. / G.W.	1200kg / 1400kg
Optional Parts	1.System, 2.spindle power,3.Rotary clamp4. motor, 5. Vacuum worktable 6. Water tank 7. Motor and driver

PRODUCT DETAILS

Spindle

9kw water cooling (0-24000rpm) 0-24000RPM.

Linear Type 8 Tools

9KW Italy HSD ATC Air Cooling Spindle 0-18000rpm.

Control system

Taiwan SYNTECH Control System Imported SYNTECH high performance control system, separated keyboard control, color LCD display.

Motor and Driver

Japanese YASKAWA 750W Servo Motor High working efficiency and stable running promised.

Inverter

11kw Fuling Inverter It can output 150% of rated torque at zero speed, it can have “point to point” and relative distance control functions for position control.

Working table

T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.

Transmission system

Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN or ABBA Linear Rail
HG series linear guideway can achieve a long life with high speed, highly accurate and smooth linear motion.

Dust collector

Collect the dust when working,keep worktable clean.

APPLICATION

Wood furniture industry	Doors: Cabinets: Tables: Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs,headboards and so on
Advertising industry	Signage; Logo; Badges; Display board, Meeting sign board, Billboard Advertising filed, sign making, acrylic engraving and cutting, crystword making, blaster molding, and other advertising
Mold industry	Sculpture of copper, aluminum, iron and other metal mold as well as artificial marble, sand, plastic sheeting, PVC pipe and other non-metallic mold
Artwork and Decoration	Wood crafts, gift box, Jewelry box
Others	Relief sculpture and 3D engraving and cylindrical obiect
