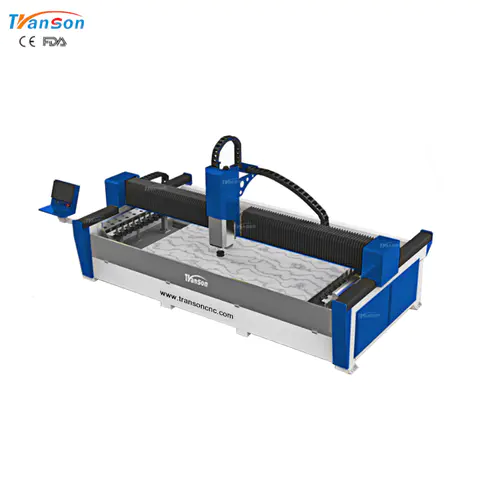

Tsw-3015 Engraving Marble Granite Cnc Router Carving Machines...

TSW-3015 engraving marble granite cnc router carving machines stone marble granite engraving router machine

X*Y working area：3300x 1500 mm
Cooling way:Water cooling
Max Speed: X Y 30000mm/min, Z 5000mm/min
Power: AC220V/380v ±10% / 50~60Hz

这里可以自定义设置

TSW-3015 engraving marble

granite cnc router carving

machines

1.Adopting fully automatic bidirectional 24 blade straight rowtool replacement, the entire processing process is completelycarried out according to preset instructions for grinding,polishing, drilling, and milling, with better and outstandingautomation.

2.Thickened workbench with high deformation resistance.

Machine Videos

This TSW3015 CNC Router is specially designed for all kinds of stone processing. It mainly suit for engraving and craving of marble, granite, stones and other man made stones. It also suitable for the carving and engraving on other material like metal, jade, crystal, wood, synthetic materials, etc. The main functions include embossing, lettering, hollowing out, cutting, seamless stitching, surface treatment, table milling and so on. And it is widely used in inscriptions, garden engineering, large-scale sculptures, handicraft carvings, home improvement, film and other industries.

Parameter

Model	TSW
X*Y working area	3300x 1500 mm
Feeding height(Z axis high)	400 mm
Spindle power	11KW ATC (BT40, 12000rpm)
Cooling way	Water cooling
Control System	NC Studio or Dedicated system ATC form stone (with software)
Tools storage number	24 pcs
Drive type	Servo 850w for x y z axis (Delta)
Rails slide	Square rail way
Transmit way	X,Y Rack and pinion, Z Ballscrew
Max Speed	X Y 30000mm/min, Z 5000mm/min
Command code	HPGL, G code
Power	AC220V/380v ±10% / 50~60Hz
Holding way	Sucking by the vacuum block
Machine size	About 524027502300mm
Packing size	About 524022802250mm
Weight	About 3000kgs

APPLICATION

Kitchen countertops, bathroom countertops,stone coffee table countertops,rregular bar countertops, cuttig basin holes, forming and polishingfront Roman edges and back arc water blocking,solving the problem of time-consuming labor-intensive, and high cost in the production process ofstone countertops; Machinable materials: quartz stone, marble, artificial stone, granite,slate, and other materials.
