Tsf Fiber Laser Marking Machine- Mini Enclosed Model

TSF Fiber Laser Marking

Machine- Mini Enclosed model

Fiber Model:TSF-20 TSF-30 TSF-50

Power: 20w 30w 50w 60w
Fiber model: Q switch or Mopa
Field lens:50*50mm, 75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm
Up and down: Manuel or electric
Rotary Device: Optional

这里可以自定义设置

TSF Fiber Laser Marking

Machine- Mini Enclosed

Model

1, Faster Marking Solutions for Metal and Nonmetal Materials
2, 50W above with cutting ability for thin silver, gold, aluminum.
3,Long Life Span, High Precision, Low maintenance
4, CE FDA certified

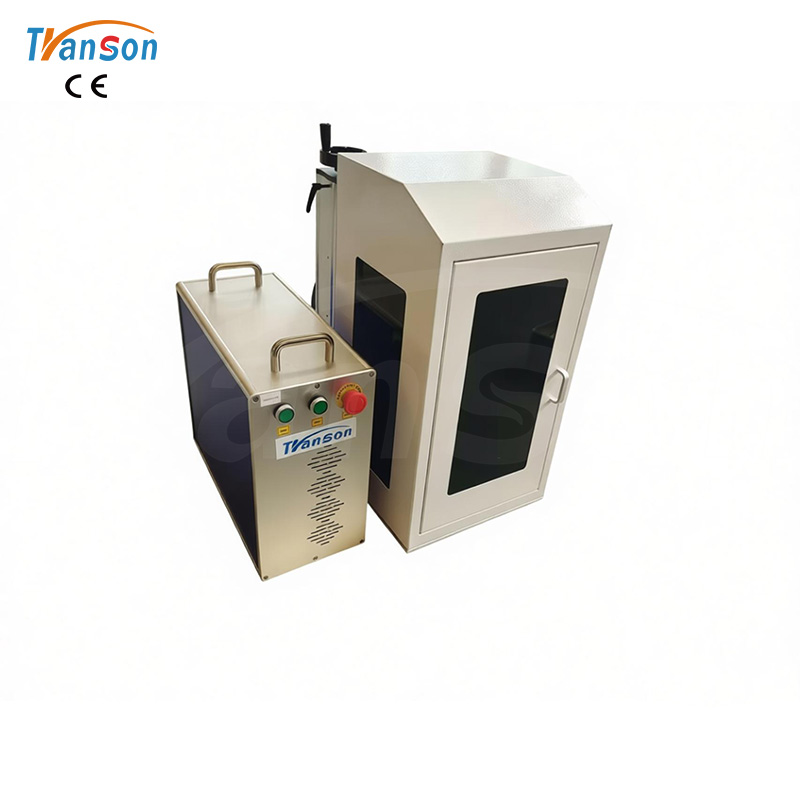

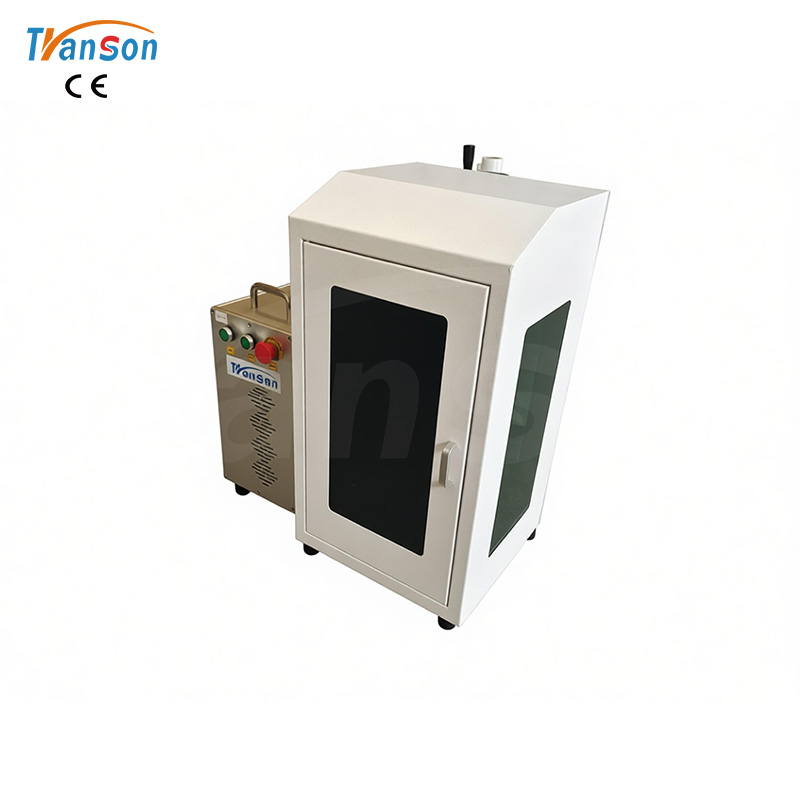

Machine view

laser etching metal can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

enclosed mini fiber laser marking machine mark photo on stainless steel

fiber laser marker mark on plastic phone charger

Parameter

Model	TSF Fiber Laser Marking Machine- Mini Enclosed model
Laser type	Fiber Laser
Laser power	20W/30W(Q-Switched Pulse and Mopa Optional)
Beam quality	M2< 1.5
Laser wavelength	1064±1 nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~250KHz
Power supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling system	Air Cooling
Graphic format supported	DWG.DXF.PLT.CNC.GBR.DST.AI.BMP
	XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Working area	110mm110 mm(Standard) can choose 150150mm 175175mm 200200mm 300*300mm
Marking depth	<1mm
Marking speed	<5000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	600W
Operation temperature	0~40°C
Operation system	Microsoft Windows system (Win7, 8 and 10)
Operating environment	Clean and free of dust, focal
Packing size / Gross Weight	1030470780mm / 84kg

PRODUCT DETAILS

Product Details

Focus Lens

Laser focusing lens provides precision laser focusing performance.

Electric Z axis

Switch

Humanized control system, easy to learn, dust proof design.

Galvanometer Scanner

It is equipped with automatic scanning system, friendly operation process.

Back Side of Machine

Working stage

Configure the positioning hole for quick and easy positioning, position adjustable.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
