Tsf Enclosed Fiber Laser Marking Machine

TSF Enclosed Fiber Laser Marking

Machine

Fiber Model:TSF-50 TSF-60 TSF-100 TSF-200 TSF-350

Power: 50w 60w 100w 200w 350w
Fiber model: Enclosed Fiber Laser Marking Machine
Field lens:110*110mm
Laser wavelength: 1064±1 nm

这里可以自定义设置

TSF Enclosed Fiber

Laser MarkingMachine

1, Faster Marking Solutions for Metal and Nonmetal Materials
2, 50W above with cutting ability for thin silver, gold, aluminum.
3,Long Life Span, High Precision, Low maintenance
4, CE FDA certified

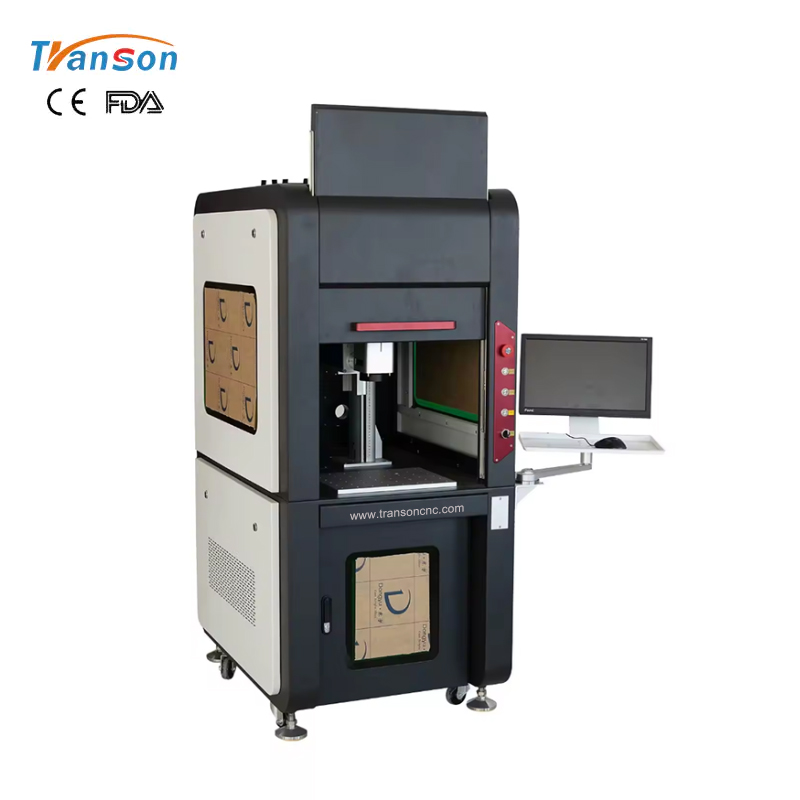

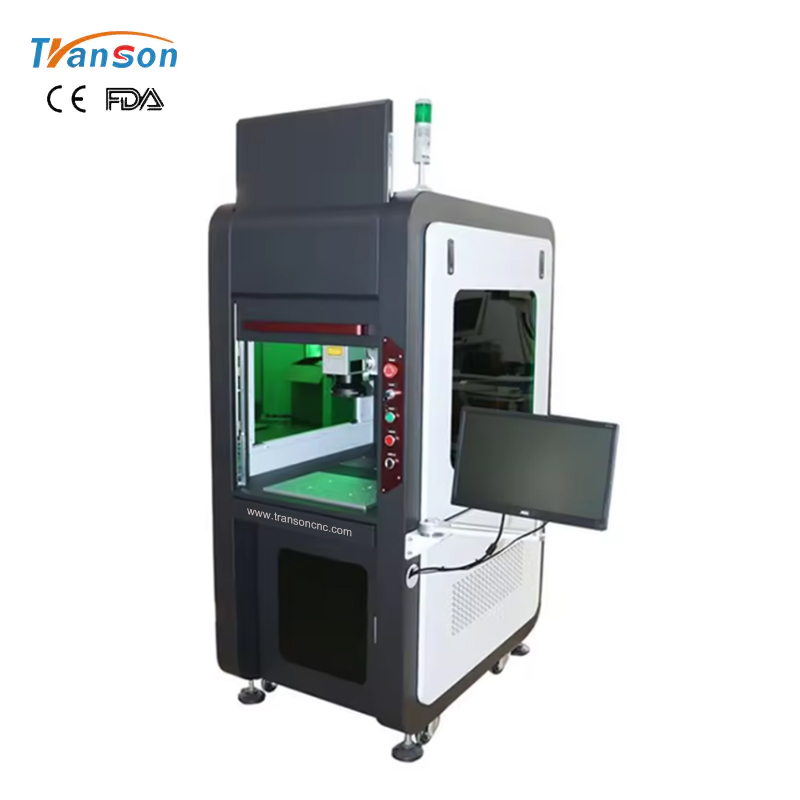

Machine view

laser etching metal can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

fiber laser marker mark on plastic phone charger

Parameter

Model			Enclosed Fiber Laser Marking Machine
Laser Power	50W	60W	100W		200W	350W
Laser type	Fiber Laser
Laser wavelength	1064±1 nm
Output fiber length	1~2m
Power supply	220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling system	Air Cooling
Graphic format supported	DWG.DXF.PLT.CNC.GBR.DST.AI.BMP
	XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Working area	110mm110 mm(Standard) can choose 150150mm 175175mm 200200mm 300*300mm
Marking depth	<1mm
Marking speed	<5000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	600W
Operation temperature	0~40°C
Operation system	Microsoft Windows system (Win7, 8 and 10)
Operating environment	Clean and free of dust, focal
Beam Quality	M2: ＜1.8	M2: ＜1.4		M2: ＜1.6
Frequency adjustable range	50-100khz	1-4000khz				1-3000khz
Pulse duration	120-150ns	2-500ns

PRODUCT DETAILS

Product Details

Focus Lens

Laser focusing lens provides precision laser focusing performance.

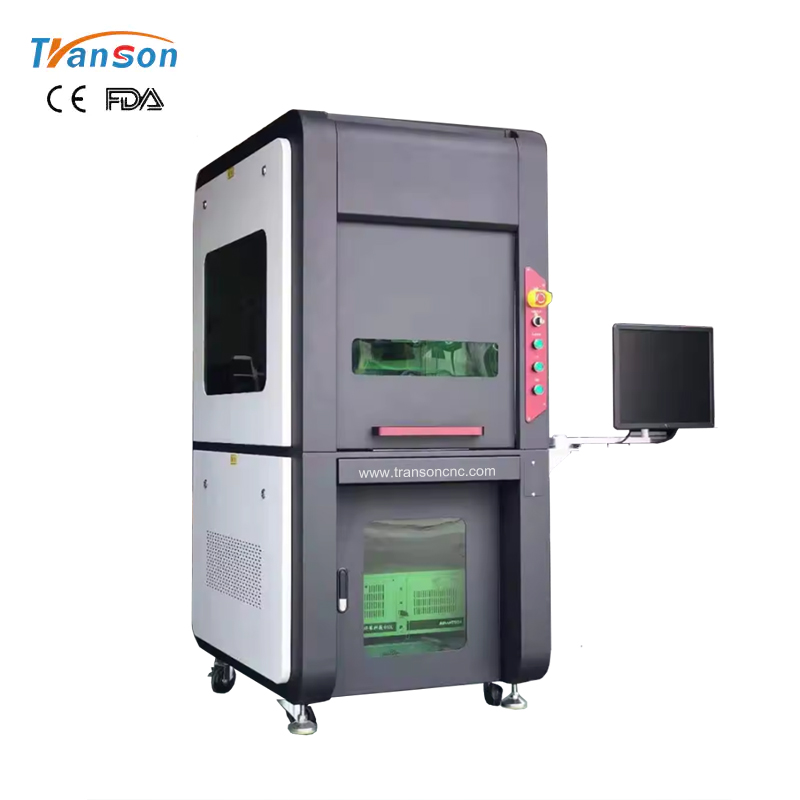

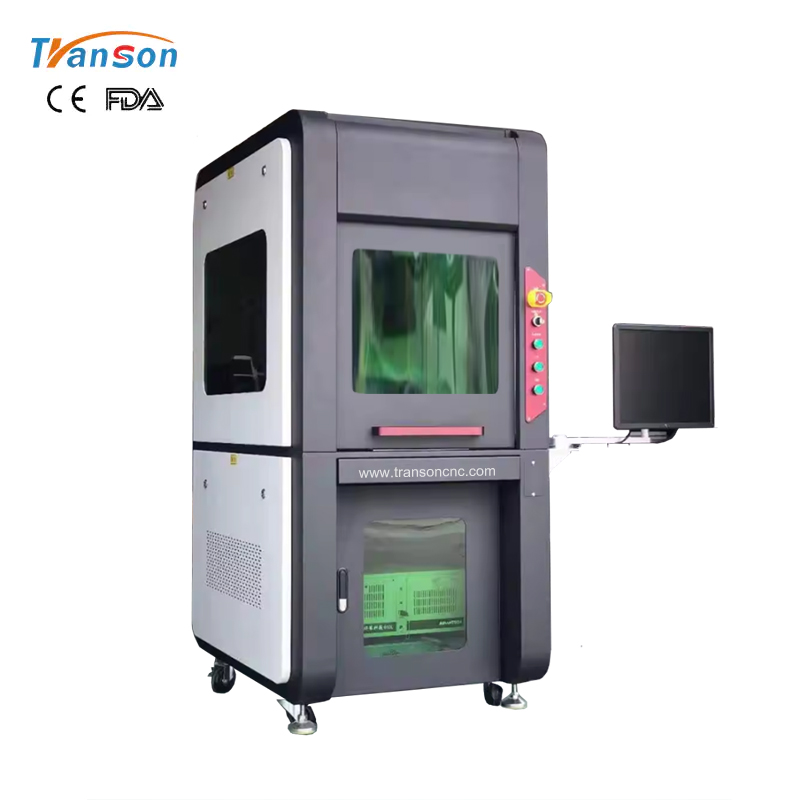

Full Closed Cabinet

The enclosed cabinet canprotect the environment and human's vision,aviodhuman body to be injuredby the laser working.

Switch

Humanized control system, easy to leam, dust proof design.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
