Tsa6040z 2.2kw Mini Cnc Router Machine Cnc Router Machine Woodworking

TSA4060 6090 2.2kw mini cnc router machine cnc router machine woodworking stone

Working area:400mm*600mm/600mm*900mm
Spindle power: 1.5kw(2.2kw optional)/ water cooling (0-24000 RPM)
Control system: NCWORK 3 axis (Ethernet port)
Worktable:Aluminum profile T slot clamping

这里可以自定义设置

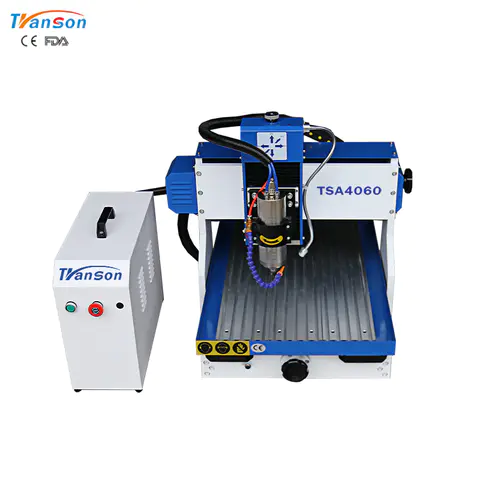

TSA4060 CNC ROUTER

2.2kw water cooling

Mach3 (USB port)

Aluminum profile T slot

Machine Videos

Mini CNC Router also called small CNC Router, mini cnc machine, desktop CNC Router, home CNC router, hobby CNC router. Compared with other ordinary CNC machines, this mini CNC engraving machine has a relatively small size mainly including 400mm×600 mm/600mm*900mm . This TSS4060 type of mini CNC router has a compact structure so it is easy to move and use. And this CNC wood router adopt advanced industrial numerical control operation software and typesetting processing software to complete various processing requirements on small work piece of users. Therefore, Transon this mini CNC wood router is welcomed by woodworking and the advertising industry.

TSA4060 CNC ROUTER

Engraving aluminum

Engraving metal

Parameter

Model	TSA4060		TSA6090
XYZ axis travel distance	400x600x140mm	600x900x140mm
Feeding height	140mm	140mm
Table size	450x970mm	660x1270mm
Spindle power	1.5kw(2.2kw optional) / water cooling (0-24000 RPM)
Rail type	Square rails
Control system	NCWORK 3 axis (Ethernet port)
Drive type	Stepper
Transmit	Ballscrew
Table type	Aluminum profile T slot clamping
Max travel speed	6000mm/min
Working precision	0.05mm
Power	AC220V±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code	G code
Machine / packing size	7701100740mm		10001420740mm
packing size	9101240890mm		11401560890mm
Net / Gross weight	125kg/150kg	150kg/200kg

PRODUCT DETAILS

MACHINE STRUCTURE

Better Rigidity and Stable,Operation High Machine Accuracy.Stable running with less vibration.

SUPER SPINDLE

The spindle is driven by doublemotors,Heavy load, long servicelife, equipment use.

Large aluminum profile

Countertopsstrong, stable and durable, PVC countertops anti-skid protection aluminum profile countertops.

Water Tank Table

With water tank suitable for all kinds of materials work, adopt casting iron mechanical structure, high precision.

Control cabinet

lndependent control cabinet Effectiveanti-interference.

APPLICATION

Wide range of application:

Except for advertising work. It is mainly designed for woodworking,any kinds of wood and plastic material processing work, door making,furniture making etc.

Suitable for Materials:

Engrave and cut on soft wood,hard wood, MDF, Aluminum and plastic composite panel,

Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet,PCB Aluminum sheet etc.
