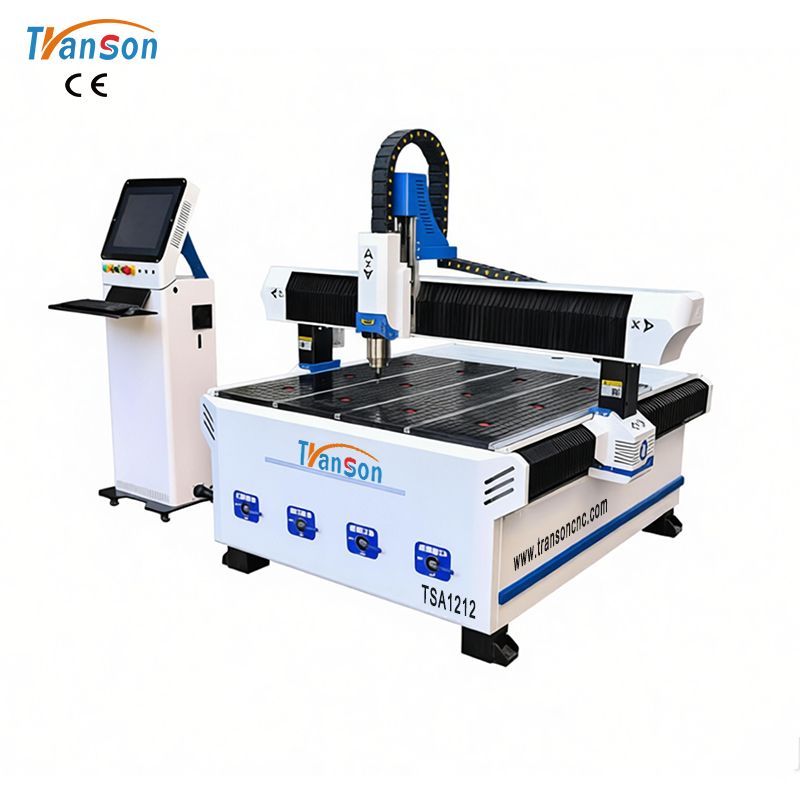

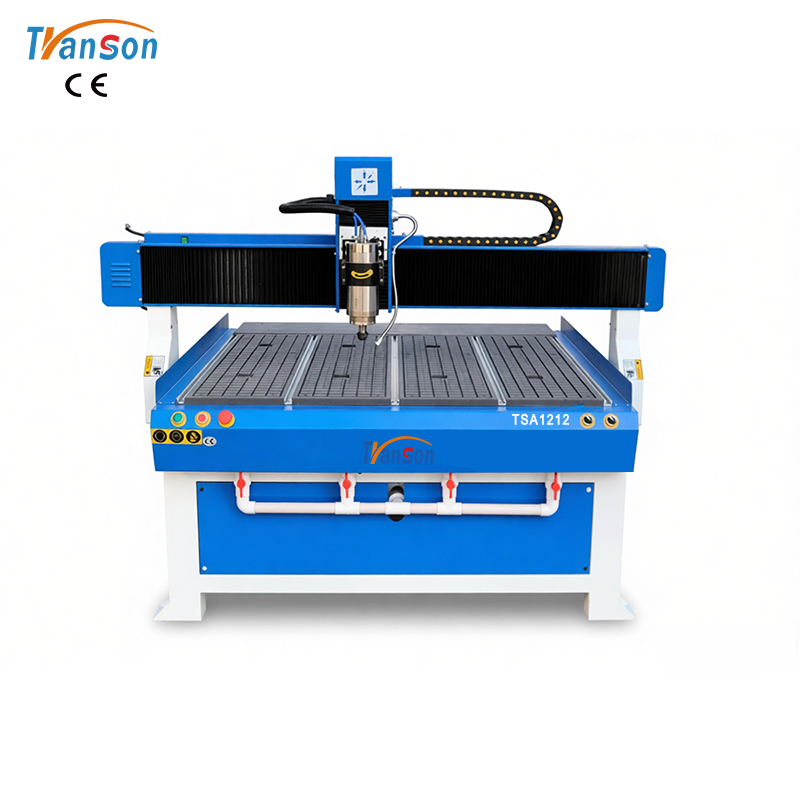

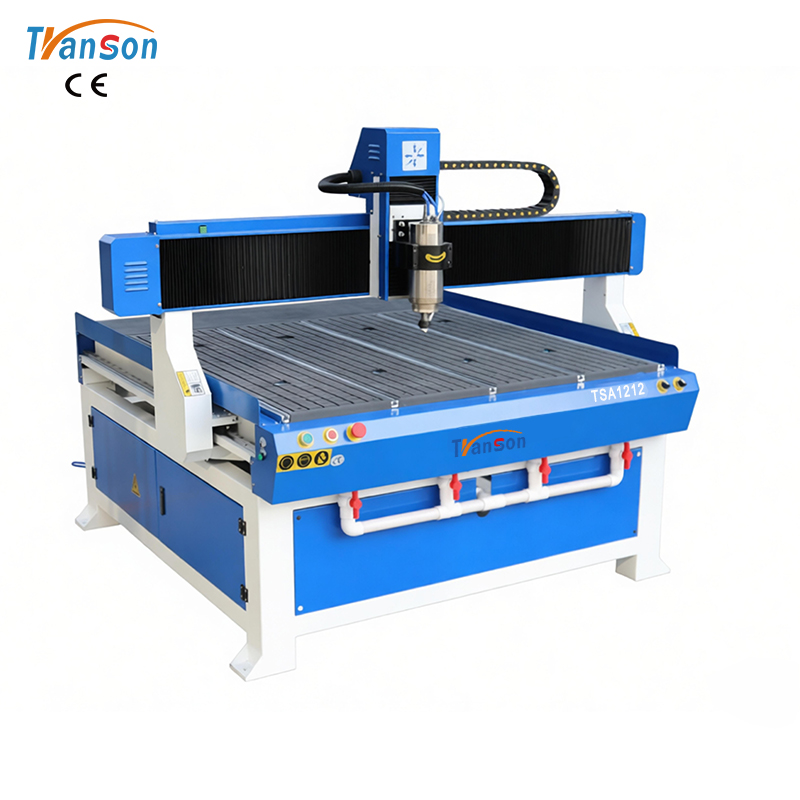

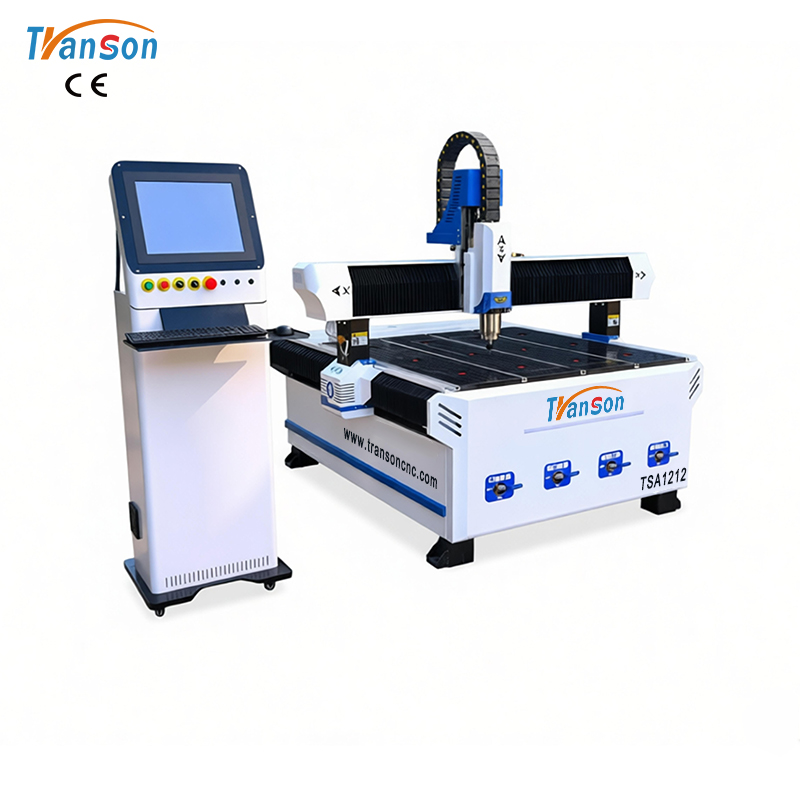

TSA1212 CNC Wood Carving Machine for Wooden Furniture

Spindle: 2.2kw (3kw optional)
Control system:Mach3 USB 3 axis

XYZ axis travel :1200*1200*150mm
Worktable: T-slot aluminum with PVC
Rail type: Square rail guide

这里可以自定义设置

TSA1212 CNC Wood

Carving Machine for

Wooden Furniture

2.2kw (3kw optional)Spindle

Mach3 USB 3 axis Control system

Machine Videos

Main configuration:

1.1200*1200*150mm effective working area;

2.Mach3 USB 3 axis control system;

3.2.2kw (3kw optional) Spindle;

Widely used in advertising field,seal field, packing field. panemaking field, decorating field, artand craft field, architecture modelfield, souvenir field, badge field,electric circuitry field and carpentry field.

Parameter

Model	TSA1212
XYZ axis travel	12001200150mm
Spindle power	2.2kw (3kw optional)
Rail type	Square rail guide
Control system	Mach3 USB 3 axis
Drive type	Stepper
Transmit	Ballscrew for x y z axis
Table type	T-slot aluminum with PVC
Travel speed	18000mm/min
Dust collector	Optional
Precision	0.05mm/300
Power	220v/50hz, single phase
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
conmand	HPGL, G code
Machine/packing size	1.611.791.32m/ 1.761.931.6m
Net / Gross Weight	500kg / 600kg

APPLICATION

lt is used to engrave on wood,MDF.Acrylic sheet, abs doublecolor sheet, PVC foam sheet,wooden sheet, scagliola, PCB,and soft metal etc.

Wide range of application:

Except for advertising work. It is mainly designed for woodworking,any kinds of wood and plastic material processing work, door making,furniture making etc.

Suitable for Materials:

Engrave and cut on soft wood,hard wood, MDF, Aluminum and plastic composite panel,

Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet,PCB Aluminum sheet etc.
