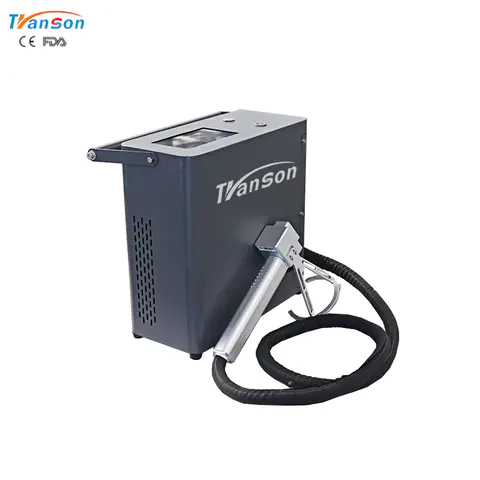

Transon Mini Handhold Portable Metal Fiber Laser Marking machine

TSF-20/TSF-30

Power: 20W (30W optional)
Laser wavelength: 1064±1nm
Cooling system:Air Cooling
Power supply: 220V/50HZ, Single phase(110V/60HZ optional)
Working area:Standard:110*110mm,Optional:70*70mm

这里可以自定义设置

Transon Mini Handhold Portable

Metal Fiber Laser Marking

machine

Feature：

Mini Fiber Laser Marker

Handheld fiber laser Marker

Portable fiber laser Marker

Long Life Span, High Precision, Low maintenance

Machine Videos

Laser marking can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Parameter

Transon Mini Handhold Portable Metal Fiber Laser Marking machine
Model	TSF-20/TSF-30
Feature	Mini Fiber Laser Marker Handheld fiber laser Marker Portable fiber laser Marker
Laser power	20W (30W optional)
Beam quality	M2<1.5
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Power supply	220V/50HZ, Single phase(110V/60HZ optional)
Cooling system	Air Cooling
Graphic format supported	Image Files: BMP.JPG.JPEG.GIF.TGA.PNG.TIF.TIFF
	Vector Files: Al. PLT. DXF.JPC.SVG.NC.G.BOT.GBR. DST
Working area	Standard:110110mm, Optional:7070mm
Marking depth	<1mm
Marking speed	<7000mm/s
Min.line width	0.05mm
Repeatability accurac	0.003mm
Power Machine	300w-800w(Depend on fiber laser power)
Operation temperature	0~40°C
Control system	Touch screen
Operating environment	Clean and free of dust
Machine size /Packing size	450250480mm/520320560mm
Net/Gross Weight	20kg/30kg

PRODUCT DETAILS

Operation interface

Operation interfaceWorking status monitoring,

Marking head

lts light weight and versatilityare ideal for marking large,bulky and difficult-to-handle workpieces。

USB

Support USB, easy to operate and easy to use

Machine Structure

Mini Fiber Laser Marker Handheld fiber laser Marker Portable fiber laser Marker

Handle

Portable design makes,it easy to move the product.

Exhaust port

Effectively cool the machine andeffectively dissipate heat to improveworking time and efficiency.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
