Transon Fiber Laser Cutting Machine 1530 1325 1318 Cnc Laser Cutting Machine...

Transon CNC TS Models Co2 Laser Machine 1530 1325 1318 Cnc Laser Cutting Machine Cutter for Acrylic

Model:TS1325 TS1318 TS1530

Working Area:130cm*250cm/51.18in*98.42in 130cm*180cm/51.18in*70.86in

150cm*300cm /59.05in*118.11in

Laser Power: 260W/300W/350W and more

Laser Type: CO2

Color Separation:Yes

这里可以自定义设置

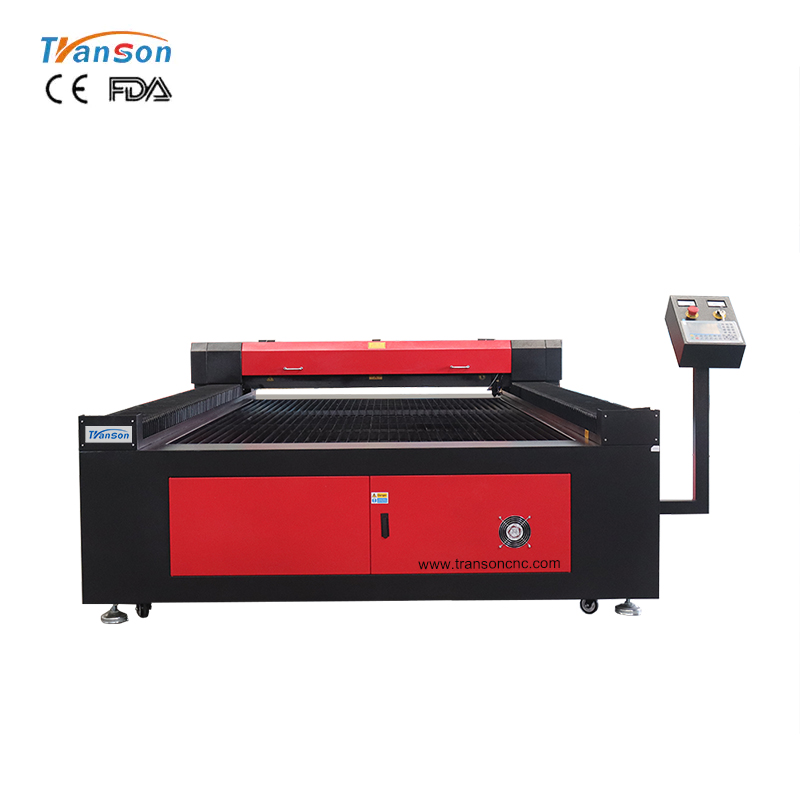

Transon CNC TS Models Co2

Laser Machine

Cutting and Engraivng Solutions of Wood, MDF, Acrylic, Cloth, Leather, Double color sheet, Other nonmetal materials.
Fast Speed, Smooth Cutting Effect, High Efficiency

Machine Videos

Parameter

Parameter
Transon CNC TS Models Co2 Laser Machine
Model	TS1318	TS1325	TS1530
Working Area	3250px4500px/51.18in70.86in	3250px6250px/51.18in98.42in	3750px7500px /59.05in118.11in
Laser Power	260W/300W/350W
Laser Type	Co2
Worktable	Standard with metal slt worktable
Engaving Speed	0-1000mm/s
Cutting Speed	0-800mm/s
Power Requirement	220v/50-60hz, single phase (110v/60hz, single phase optional)
Min. Shaping Character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic. Format. Supported	BMP, PLT, DST, DXF, Al
Software Supported	Coreldraw, Photoshop, AutoCAD, TAJIMA
Control System	Ruida brand
Machine Work Software	Rdworks
Laser Output Control	1-100% by setting in the software
Interface	USB
Driving System	Stepper
Color Separation	Yes
Gross weight	950kg	1100kg	1150kg
Machine size
Packing size	2720mm2080mm1180mm	3420mm2080mm1180mm	3920mm2180mm1180mm

PRODUCT DETAILS

Dust cover

It used for protecting linear guider and belt.

Linear guider

Square sharp linear guider, small resistance, smooth sliding, low noise, good balance performance.

Exhaust fan

Heat dissipation is fast, can extend the life of machine.

Full-direction Wheel & position leg

It can help move and fix the laser machine easily.

Standard worktable with metal slat

Metal slat worktable can meet the flatness requirment of hard materials, like wood. acrylic, etc.

Laser head

It makes theworking speed faster,precision higher.

Emergency stop button & Key switch.

It is easy to operate, it can be used by ordinary employees.

Socket

Multi-function socket at the back of themachine.

APPLICATION

Applicable industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoreation, arts and crafts, electronics and electric appliances, etc.

Applicable Materials:
Double color sheet, acrylic, glass, wood, mdf, bamboo ware, coconut shells, paper, leather, cloth, marble, ceramic tile, shells and other nonmetal materials.

Plastic

Acrylic

Foam
