CO2 Laser and Fiber Laser in One

Double headed Laser Engraving

Cutting and Marking Machine



Model:TN4060

Working area:  400*600

Laser Power: 40w 50w 60w 80w 100w 130w 150w and more

Tube: Glass tube or Metal tube.

Worktable: Honeycomb, Metal slate, up and down

Other Optional: Red dot pointer, rotary device with clips or roller

这里可以自定义设置

TN CO2 LASER AND FIBER



LASER IN ONE





1.Laser engraving, cutting and marking all in one;
2.Double headed;
3.CO2 laser head for engrave and cut nonmetal;
4.Fiber laser head for engrave and marking on metal and some nonmetal materials

 Machine Videos

TN4060 CO2 head and fiber head laser  cutting Acrylic
TN4060 CO2 head and fiber head laser engraving  glass
TN4060 CO2 head and fiber head laser engraving  metal

Model

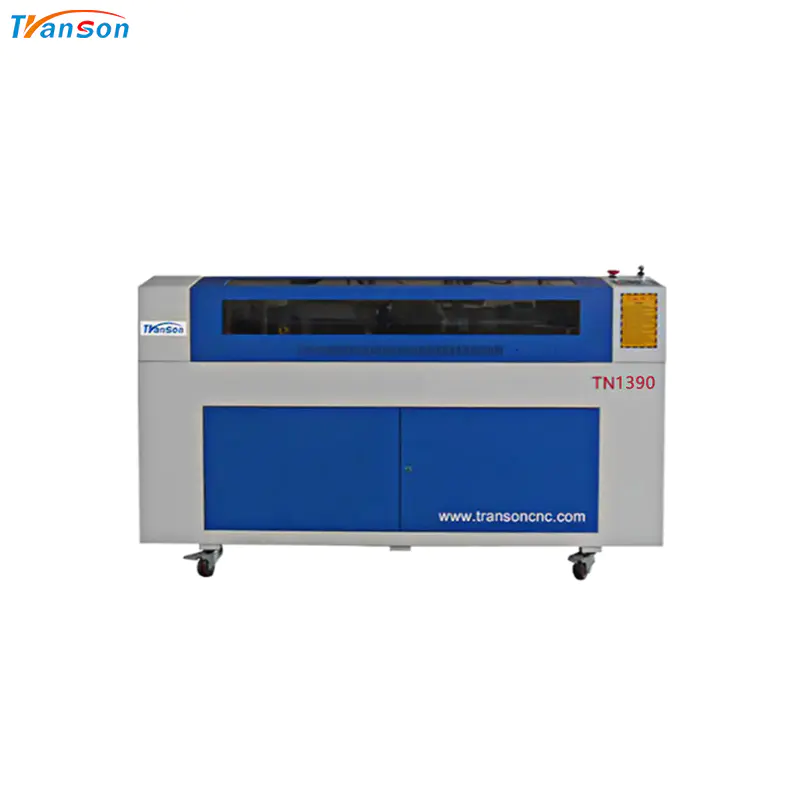

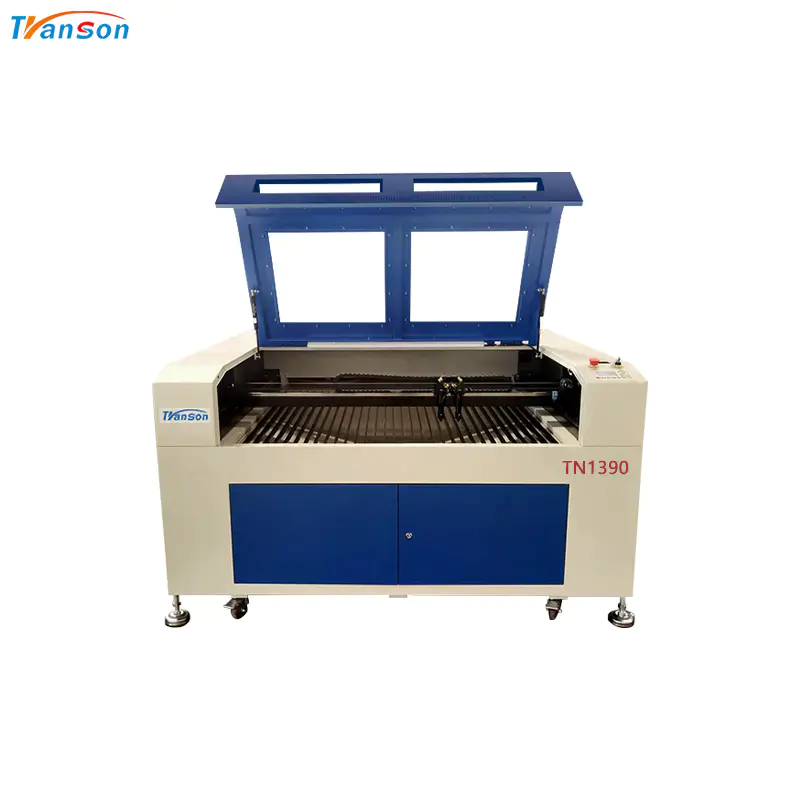

TN4060/ TN6090/TN1290 / TN1390 / TN1490 /TN1610

Working area

400*600/ 600*900/ 900*1200/ 900*1300/ 900*1400/ 1600*100mm

CO2 head laser power

40W/60W/80W/100W/150W/180W, CO2 sealed laser tube, water-cooled / air cooling optional

Fiber head laser pwoer

Raycus 10W, 30W, 50W, air cooling

Worktable

Standard with Metal slat worktable

Engraving speed

0-70000mm/min

Cutting speed

0-40000mm/min

Highest scanning precision

2500DPI

Power supply

220v/50Hz , 110v/60Hz

Min. shaping character

English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Graphic.format.supported

BMP, PLT, DST, DXF, AI

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Control system

High speed DSP control system brand Ruida or Leetro

Machine work software

RDWorks V8 (Ruida)

Laser output control

1-100% by setting in the software

Interface

USB 2.0

Driving system

Stepper motor or China Servo motor

Can choose

Multi-function protect power supply

Color separation

Yes

Optional part

Up and down worktable/ Honeycomb worktable/ Red dot pointer/ Auto focus/ Rotary attachment with rollor/Rotary attachment with clip/ Water chiller

Spare parts suggested

Extra laser tube/Extra 1 lens and 3 mirrors


PRODUCT DETAILS

Core control system

Adopting China top brand Ruida laser control card, reasonable wiring can reduce electromagnetic interference and enhance the stability of machine operation.

Laser tubes

Standard with  two pieces of laser tubes. We use China top brand Reci laser tube,with 10,000hours life span and 10 month’s warranty. Optional power W1 75-90W, W2 90-100W, W4 100-130W, W6 130-160W, W8 150-180W.

Dual laser heads

Machine with two laser head,  CO2 laser head and fiber laser head.

button & Key switch

Laser head button switch and USB jack

Control panel

LCD digital control panel with USB interface, support offline work.

Dual laser heads function

CO2 laser head for engrave and cut nonmetal.

Fiber laser head for engrave metal, it is a best solution for remove metal coating from mirror, then install LED.

OPTIONAL PARTS:

Motorized up and down system

Make worktable move up and down automatically, then can process materials in different thickness.

Red dot pointer & Auto focus

Red dot pointer makes laser beam visible,so adjustment of laser beam would be much easier. Auto focus can set the optimal focus according to thickness of objects automatically.
(They need work together with up and down worktable).

Worktable

Honeycomb / Metal slat/
High density metal slat worktable is used for leather, cloth and small parts cutting, the distance between two metal slat will less than 2cm.

Rotary device with roller

For heavy and fragile round materials’ engraving,such as glass cup,bottle, etc. It should work together with up and down worktable.

Rotary device with chuck

 For round materials’ engraving,such as wood,etc. It should work together with up and down worktable.

CCD camera

Scan the worktable to your computer, then machine can automatically according the pattern outline. Widely used for cutting printed or woven labels, logos, decorative border, etc.

Auto feeder

Laser machine with auto feeder is suitable for engraving and cutting engrave and cut material in rolls, like fabric, leathers, cloth, etc.

Four head model

 The 4 pieces laser heads can work simultaneously or work alone, many customers buy it to cut shoe leather, arts crafts,labels, etc.

APPLICATION

This two-head Laser engraving Cutting Machine is developed to engrave on both metal and nonmetal, cut nonmetal.





1. CO2 laser head applicable materials:
Fabrics, Clothing, label, paper boards, leather, embroidery, acrylic, wooden plates and paper ware.



CO2 laser head applicable industries:
Garments, shoe making, label processing, art crafts, etc



2. Fiber laser head applicable materials:

Metal like stainless steel, carbon steel, copper, aluminum, etc.



Fiber laser head applicable industries:

Decoration, advertising industry, art crafts,etc.



Sample:

Left: Fiber laser head engrave on stainless steel

Right: CO2 laser head engrave on MDF


PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.
