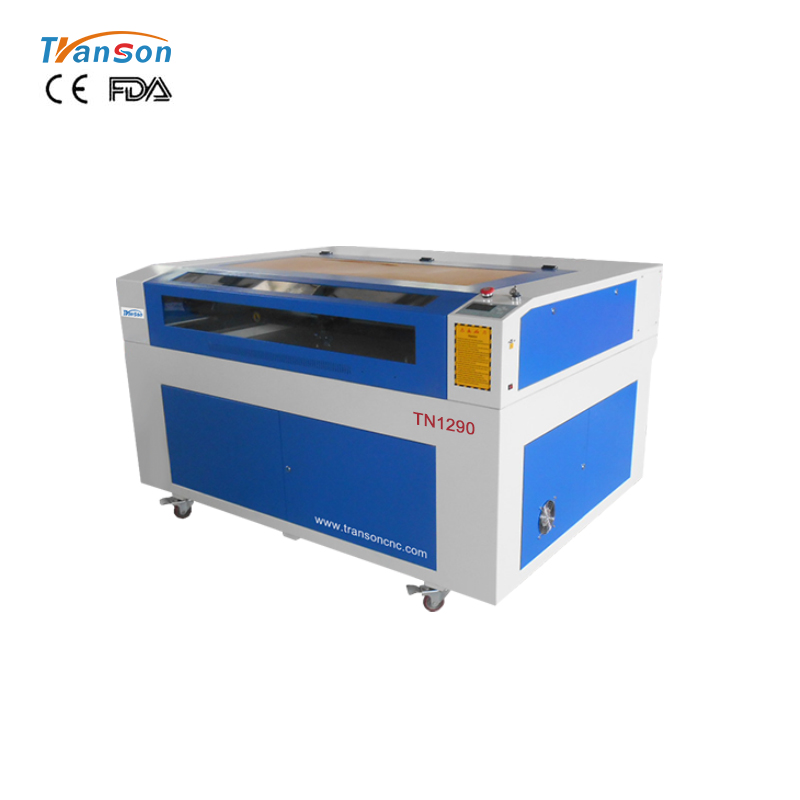

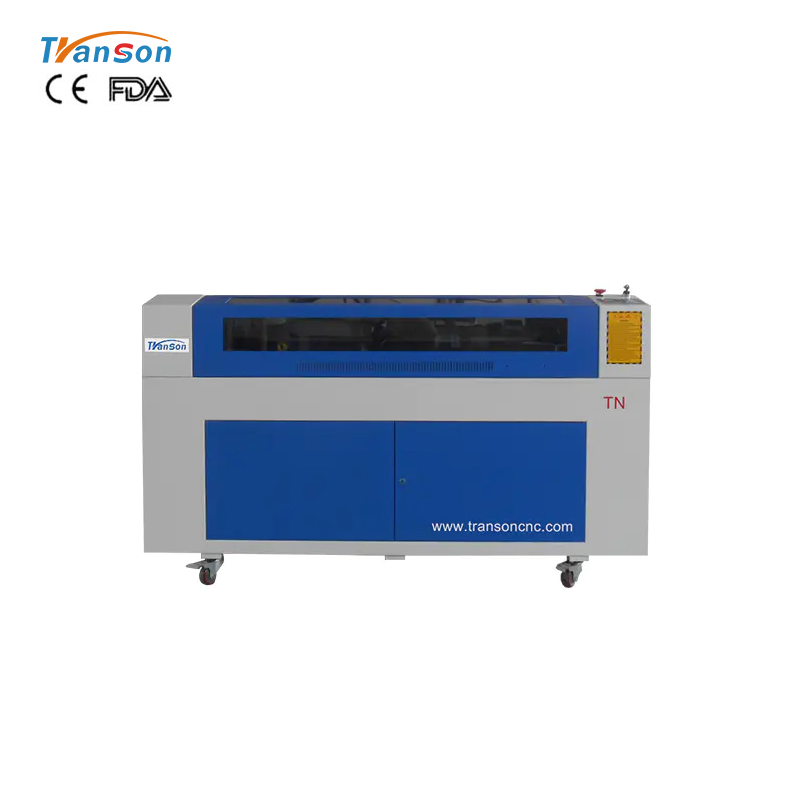

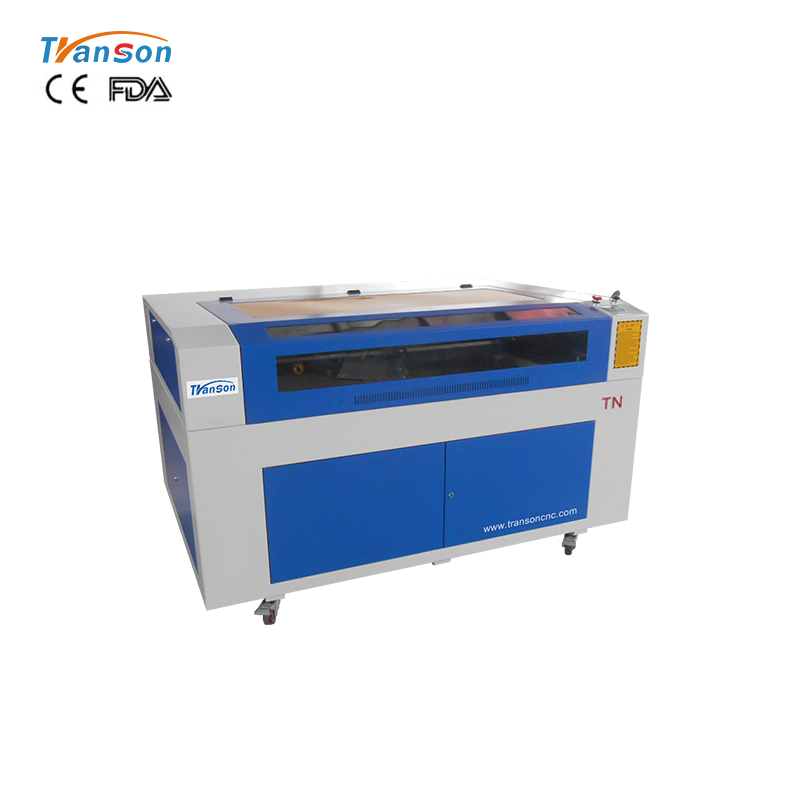

Tn1290 Co2 Laser Engraving Cutting Machine

TN1290 CO2 Laser Engraver Cutter For Nonmetal Wood MDF Acrylic Leather

Model:TN1290

WorkingArea:1200mm*900mm/47.24in*35.43in

Laser Power: 40w 50w 60w 80w 100w 130w 150w and more

Tube: Glass tube or Metal tube.
Worktable: Honeycomb, Metal slate, up and down
Other Optional: Red dot pointer, rotary device with clips or roller

这里可以自定义设置

TN1290 CO2 Laser Cutting Machine

Cutting and Engraivng Solutions of Wood, MDF, Acrylic, Cloth, Leather,

Double color sheet, Other nonmetal materials.

Fast Speed, Smooth Cutting Effect, High Efficiency

Machine Videos

Tranosn TN1290 CO2 laser engraver cutter is one of the most popular model among our laser machines. Its standard with 1200*900mm working area, suit for the most factory acrylic sheet size engrave cut work. With optional aluminum blades workable and honeycomb worktable, suit for different material engrave cut work. For hard material like wood, acrylic, MDF, plywood, we suggest choose blades workable. For engrave cut soft material like leather, fabric,paper, we suggest use honeycomb worktable. The optional laser tube power we have 60W, 80W 100W 120W 150W 180W, 260W,350W, brand include Reci, SPT, EFR, YL, JKlaser,etc. We have also RF metal tube for choose include USA Synrad, Coherent, DAVI, etc.

cut 5mm acrylic

CO2 laser engraver cutter cut leather

TN1290 with Synrad 30W RF tube engrave picture on MDF

co2 laser machine engrave on mirror

Parameter

Laser Cutting and Engraving Machine
Single Phase	220V
Machine dimensions	1550mm x1080mm x 1080mm (LWH)
Working area	1030 x 630 mm (LW)
Loading area	1130mm x 690mm (LW)
max material load	Capable of up to 20kg
Laser Power	Sealed-Off CO2 DC 100W,Adjustable from 0-100%
Cooling System	Water-cooled
Approximate Processing Speed	1.1m/sec -2 m/s
Laser Safety	CDRH Laser Safety, Laser class 2, CE Compliant/ Certified, Double interlock safety system, kill and key switch
Software	Compatible Graphic Standard and CAD Software and Manager laser software (RD Works)
Hardware Interface	USB 2.0
Water Chiller	16 l/min
Power Consumption Chiller	900W
Power Consumption Laser	100-250V, 1200W (optional 220v)
Motors	Stepper Motors
Optical Elements	4” and 2” CO2 lens, lens air flushed for soil-protection USB 2.0 interface
Ports	2x150mm outer diamete
Materials Cut and Engrave	Wood, Paper White, Paper Colored, Cardboard, Leather, Textiles, Cork, Plastic such as ABS, Acrylic, Rubber, PC, PE, Polyester, PET, Delrin, PP, Foam
Inclusions/Accessories	25•Must have Certificate of Distributorship and Trainers Certificate signed by the Manufacturer • Aluminum Slat Cutting Table • Aluminum Cutting grid Table • Bundled with Job Control system and laser software • External Pump for Air Assist 230V • Vent Set, 230V (3-meter exhaust) • 1 CO2 Lens set 4.0’’ (lens and focus tool) • 1 CO2 Lens set 2.0’’ (lens and focus tool) • Variable Laser Power Meter • Rotary Attachment

PRODUCT DETAILS

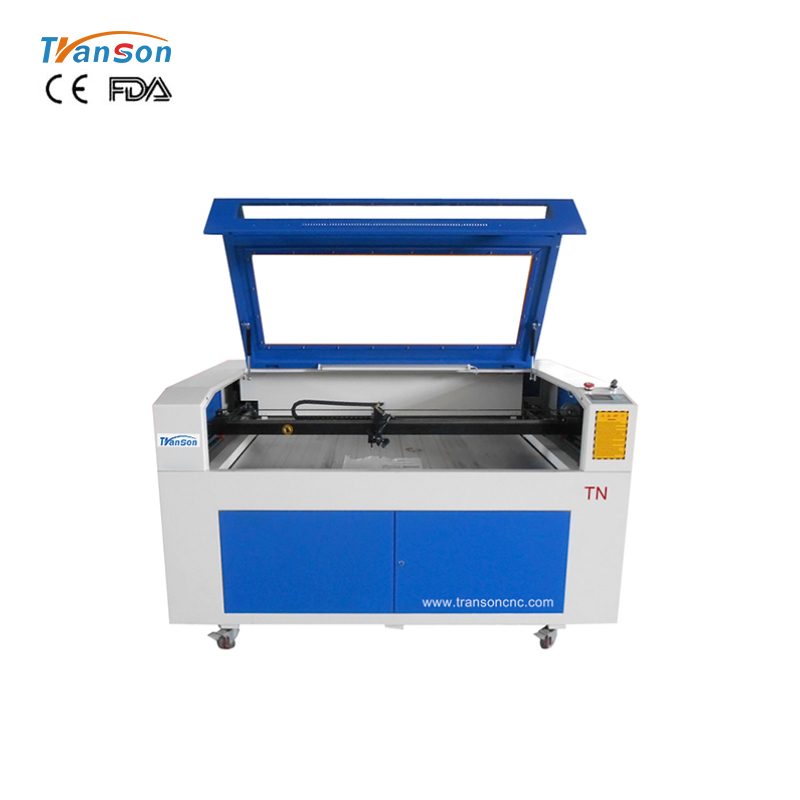

Observation windown design

The worktable cover is installed transparent tempered glass.

Linear guider

Square sharp linear guider, small resistance, smooth sliding, low noise, good balance performance.

Laser head

With high quality metal reflector and focus lens , as well as red dot pointer,it makes the working speed faster,precision higher.

CO2 laser tube

China top brand Reci laser trube, 10,000 hours life time, 300 days’ warranty, optional power:90w/100w/120w/150w/180w (Max power).

Laser power supply

Constant laser power supply to laser tube, with exhaust fan.

Core control system

Adopting China top brand Ruida laser control card, reasonable wiring can reduce electromagnetic interference and enhance the stability of machine operation.

Control panel

LCD digital control panel with USB interface, support offline work.

Emergency stop button & Key switch.

Water chiller

CW3000 water chiller with water temperature display and alarm system can avoid over burning, keep water circulation successful.

Socket

Multi-function socket at the back of the machine.

Metal slat worktable

Metal slat worktable can meet the flatness requirment of hard materials, like wood, acrylic, etc.

Honeycomb worktable

Makes the board more solid and more flat.It’s suitable for engraving work and also good at cutting leather and other soft materials. （Note:one worktable standard with machine: Metal slat / Honeycomb）

Exhaust fan

Heat dissipation is fast, can extend the life of machine.

Air pump

Air pump can keep forcus lens clean and cool the laser head.

Full-direction Wheel & position leg

It can help move and fix the laser machine easily.

Tool box

Tools for maintaining the machine are included.

Three mirrors and one lens

High quality reflection mirrors and focus lens, high efficiency and stable performance.

OPTIONAL PARTS：

Up and down worktable

Making worktable move up and suitable for processing materials in different thickness.

Red dot pointer & Auto focus

Red dot pointer makes laser beam visible,so adjustment of laser beam would be much easier. Auto focus can set the optimal focus according to thickness of objects automatically.
(They need work together with up and down worktable).

Worktable

Honeycomb / Metal slat/
High density metal slat worktable is used for leather, cloth and small parts cutting, the distance between two metal slat will less than 2cm.

Rotary device with roller

For heavy and fragile round materials’ engraving,such as glass cup,bottle, etc. It should work together with up and down worktable.

Rotary device with clip

For round materials’ engraving,such as wood,etc. It should work together with up and down worktable.

APPLICATION

Applicable industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoreation, arts and crafts, electronics and electric appliances, etc.

Applicable Materials:
Double color sheet, acrylic, glass, wood, mdf, bamboo ware, coconut shells, paper, leather, cloth, marble, ceramic tile, shells and other nonmetal materials.

PACKAGING & DELIVERY

Model	Laser Power	*Machine size LWH(m)**	*Package Size LWH(m)**	Volume (cbm)	Net Weight	Gross Weight(kg)
TN4060	40w	1.060.811.05	1.20.911.2	1.31	180	220
	60w	1.360.811.05	1.460.911.2	1.59	190	230
	90w	1.360.811.05	1.460.911.2	1.59	200	240
	100w	1.560.811.05	1.680.911.2	1.83	210	250
TN6090	75-100w (W1 / W2)	1.361.011.05	1.511.131.2	2.05	220	280
	100-120w (W4)	1.611.011.05	1.681.131.2	2.28	250	320
	130-150w (W6)	1.811.011.05	1.911.121.2	2.57	260	340
	150-180w (W8)	2.01.011.05	2.11.121.2	2.82	280	360
TN1290	75-120w (W1/ W2/W4)	1.661.311.05	1.781.431.25	3.18	350	420
	130-150w (W6)	1.811.311.05	1.981.411.25	3.49	370	450
	150-180w (W8)	2.01.311.05	2.11.411.25	3.7	380	460
TN1390	75-150w (W1/W2/W4/W6)	1.761.311.05	1.871.411.25	3.3	355	425
TN1390	150-180w(W8)	1.981.311.05	2.11.411.25	3.7	385	465
TN1490	75-150w (W1/W2/W4/W6)	1.861.311.05	1.971.411.25	3.47	360	440
TN1490	150-180w(W8)	2.01.311.05	2.11.411.25	3.7	390	470
TN1610	75-180w (W1/W2/W4/W6/W8)	2.061.411.05	2.171.511.25	4.1	370	450
Above packing information for Reci brand laser tube just for reference, any add or change of components may differ changes.
We will measure each package's size and weight before shipping.
