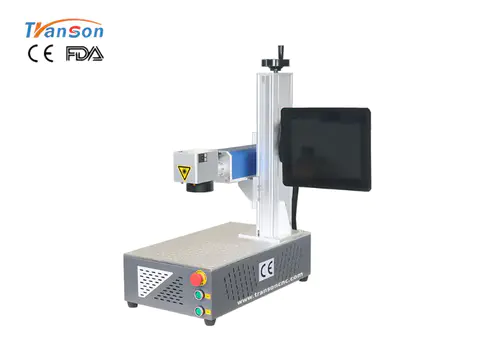

Super Mini Fiber Laser Marking Machine 20W 30W 50W 100W For Silver Steel Aluminum

Power: 20w 30w 50w 100w
Repeatability Accuracy: ±0.001mm
Marking Range:110*110mm standard (others optional)
Rotary Device: Optional

这里可以自定义设置

Super Mini Fiber Laser Marking

Machine 20W 30W 50W 100W

1, Faster Marking Solutions for Metal and Nonmetal Materials

2, Long Life Span, High Precision, Low maintenance

3, CE FDA certified

Machine Videos

写点什么 ...

Machine Videos

Laser engraving equipment can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as laser label maker, laser name plate maker, infrared laser marker, etc.

Parameter

Model	TSF-20 E		TSF-30 E
Laser Power	20w		30w
Laser Wavelength	1064nm
Q-frequency	30-60KHZ		40-60khz
Maximum single pulse energy	0.67mJ		0.75mJ
Marking Range	110*110mm standard (others optional)
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Repeatability Accuracy	±0.001mm
Beam Quality	M2<1.5	M2<1.6
Marking Format	Graphics
Marking Format	Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batchnumber,Serialnumber,Frequency,etc.
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	<0.5kw
Machine size	640420330mm
Net Weight	About 20kgs
Package size	690420390mm
Gross Weight	About 33.5kgs

PRODUCT DETAILS

pRODUCT DISPLAY

STANDARD PARTS OF Transon Super Mini Fiber Laser Marking Machine:

Hand Lifting

High-quality materials, high positioning accuracy, stable and convenient.

Focus Lens

Laser focusing lens provides precision laser focusing performance.Standard 110X110mm,

Flat worktable

Configure the positioning hole for quick and easy positioning, position adjustable.

Control Buttons

Buttons for Power, Scan head, Laser. Humanized control system, easy to learn, dust proof design.

Thermal Design

With a cooling hole, dust-proof and thermal design to protect the host computer.

Galvanometer Scanner

It is equipped with automatic high speed scanning system, friendly operation process.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
