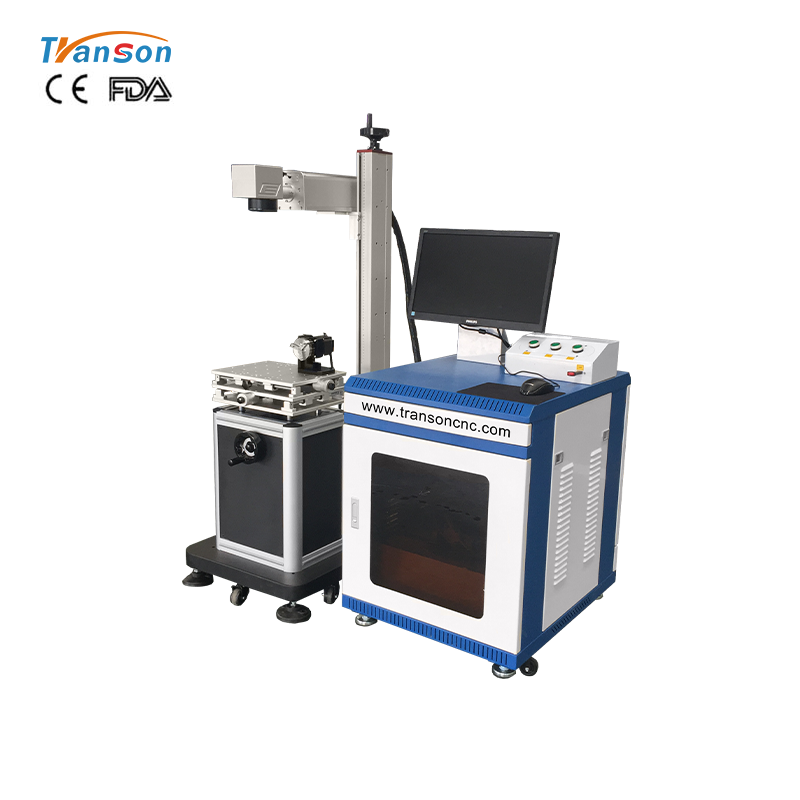

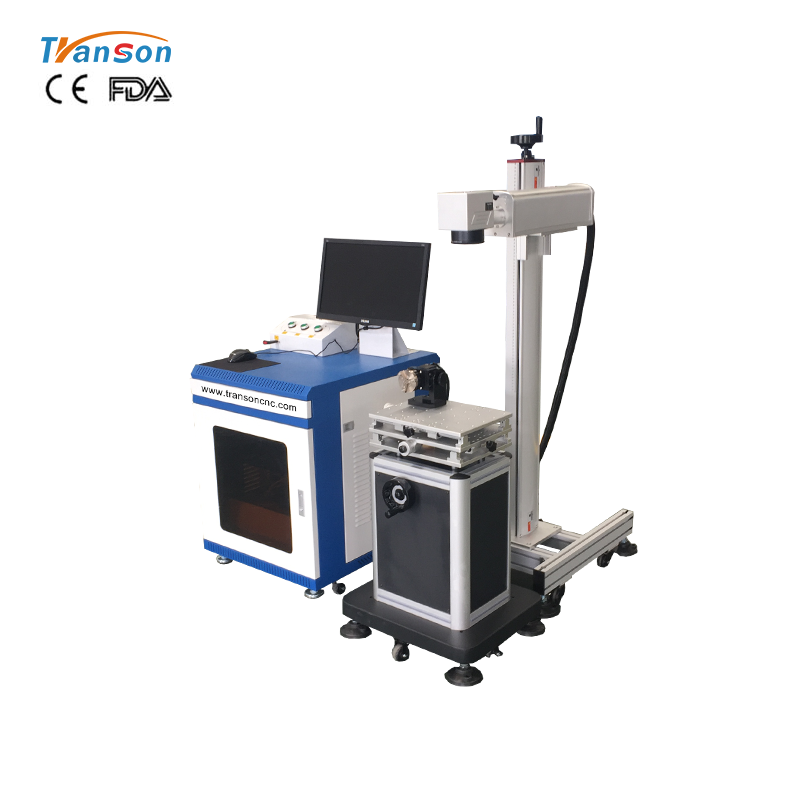

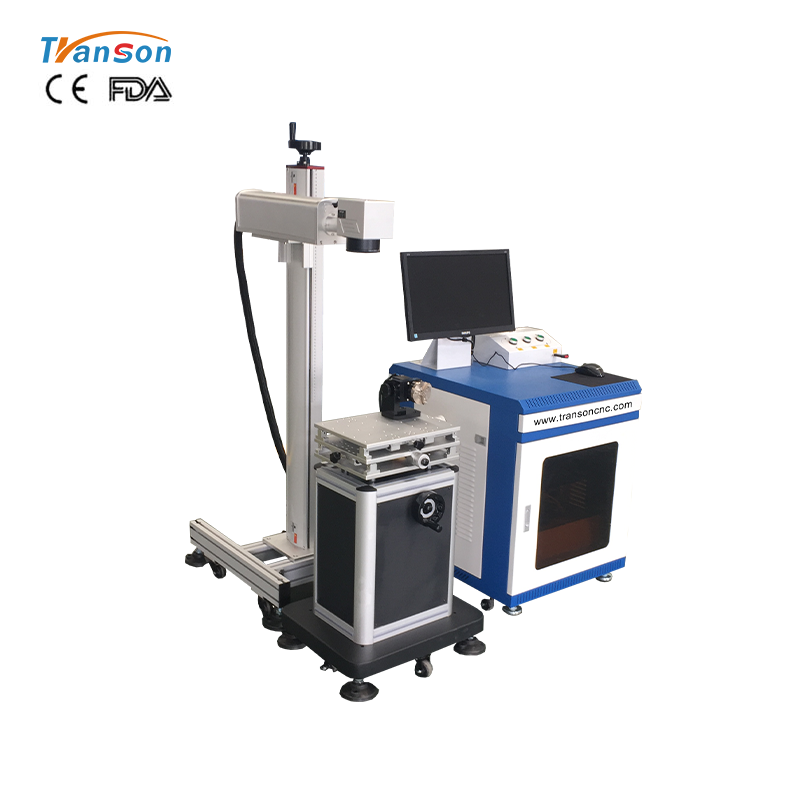

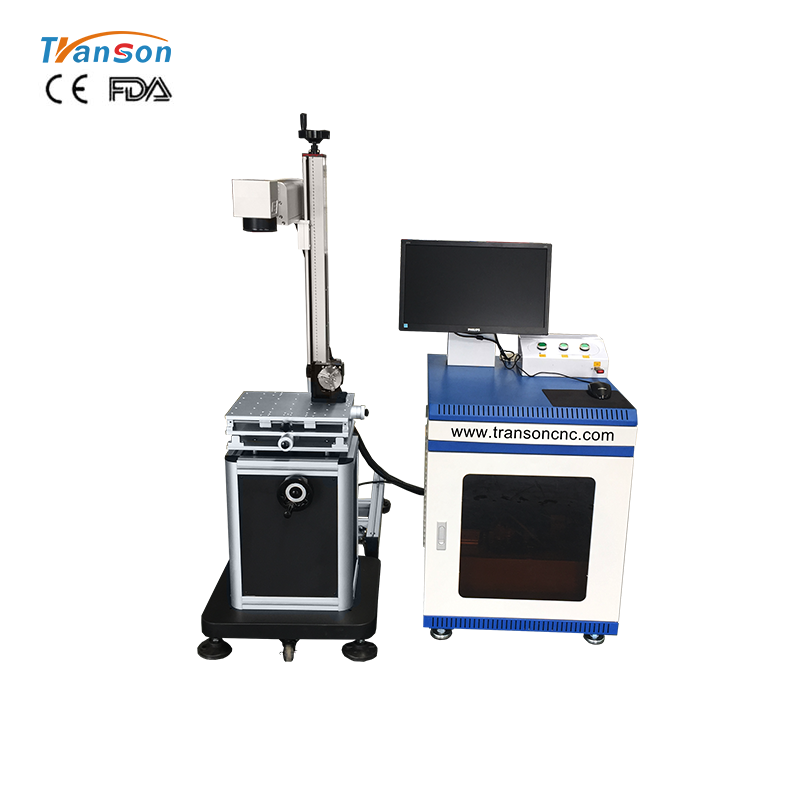

Split fiber laser marking machine

20W 30W 50W 100W

Power: 20w 30w 50w 60w
Fiber model: Q switch or Mopa
Field lens:50*50mm, 75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm
Up and down: Manuel or electric
Rotary Device: Optional

这里可以自定义设置

SPLIT FIBER LASER



MARKING MACHINE





Faster Marking Solutions of


Metal and Nonmetal Materials


Long Life Span, High Precision, Low maintenance

     Machine Videos

photo mark on aluminum
Phone shell mark
animal ear tag mass mark

 Split fiber laser marking machine

Model

TSF

Laser type

Fiber Laser

Laser power

20W/30W/50W/60W/70W/100W/120W optional

Beam quality

M2<1.5

Laser wavelength

1064±1nm

Power adiustment range

10~100%

Output filber length

1~2m

Frequency of pulse

20~250KHz

Power supply

220V/60HZ/8A(110V/60HZ/15A can choose)

Cooling system

Air Cooling

Graphic format supported



XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA

Working area

Standard:110"110mm,
      Optional:50*5omm,75*75mm,150*15omm,175mm*175mm,200*200mm,300*300mm.

Marking depth

<1mm

Marking speed

<7000mm/s

Min. line width

0.05mm

Repeatability accurac

0.003mm

Power Machine

300w-800w(Depend on fiber laser power)

Operation temperature

0~40&#176;C

Operation system

Microsoft Windows 7. 8. 10 system

Operating environment

Clean and free of dust

Warranty

one years

PRODUCT DETAILS

OPTIONAL PARTS OF TRANSON DESKTOP FIBER LASER MARKING MACHINE:

Rotary device

Rotary device can use to fix the object when marking on the inner and outer surface of it, the object within 80mm diameter.

2D worktable

This worktable can move from left to right, from front to back, so the working area can be enlarged.

Lens field

There are different sizes of focusing lenses available, such as, 50*50mm, 75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm.

Laser goggles

Can help protect the eyes of operator.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.


Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
