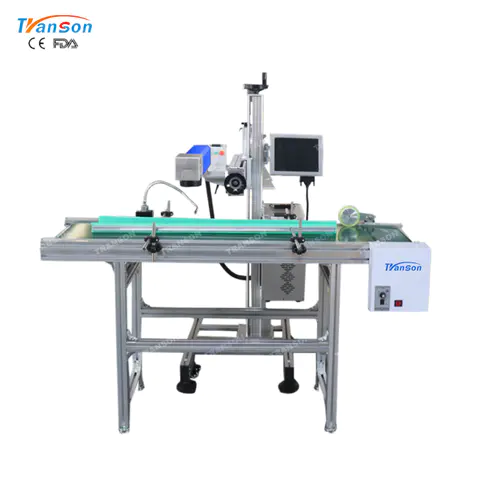

Production Line Conveyor Belt Flying Fiber Laser Marking Machine For Wire...

Production Line Conveyor Belt Flying Fiber Laser Marking Machine For Wire Pipe PVC Bags Plastic Bottle

Power: 30w/ 50w/ 100w optional

Marking Area: 110mm*110mm

Optional Marking Area：50*50mm/150mm*150mm/200mm*200mm
Cooling Mode：Air cooling--Built-in

System Operation Environment: Touch screen Controller, no need extra computer

这里可以自定义设置

Flying Laser Marking Machine

30w 50w 100w optional

Faster Marking Solutions of Nonmetal Materials

Specially apply to leather cutting industry

High Precision, High Speed

Machine Videos

Machine standard with conveyor belt. Easy operate and save labor.

Parameter

Type	Flying Laser Marking Machine
Power	30w/ 50w/ 100w optional
Laser Type	fiber laser, (optional co2 laser, uv laser)
Galvometer	Sino-Galvo
Marking Area	110mm*110mm
Optional Marking Area	5050mm/150mm150mm/200mm*200mm
Marking Depth	≤0.5mm
Marking Speed	7000mm/s
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life-span of Fiber Laser Module	100 000hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	Touch screen Controller, no need extra computer
Cooling Mode	Air cooling--Built-in
Temperature of Operation Environment	15℃~35℃
Power Input	220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement	<400W
Communication Interface	USB
Package Dimension	20w 1455357cm/30w with 1.5m conveyor belt:1626776cm
Weight	20w 92kg/30w with 1.5m conveyor belt: 129kg

APPLICATION

Applicable Industries

Co2 laser marker 30w metal tube is widely used in shoes, clothing, packaging, toys, food, beverages, glasses, communication products, auto parts, luggage buckle, medicine, cosmetic, beverage, wine, mineral water,chemical products, tobacco, plastic & rubber product accessories, building materials and other manufacturing products or packaging.

Applicable Materials
Paper, plastics, wood, glass, acrylic, painted pottery, leather and other non-metallic materials and oxidation plating paint.
