Mini desktop Cnc router 3040 4060 6090 Cutting Engraving Milling Machine...

Mini Desktop Cnc Router 3040 6040 6090 Cutting Engraving Milling Machine

Working area:300*400mm/400*600mm/600*900mm
Spindle power: 1.5kw(2.2kw optional) water cooling (0-24000 RPM)
Rail type: Square rail
Worktable:Aluminum profile T slot clamping

这里可以自定义设置

Mini Desktop 3040 6040

6090Cnc Router

2.2kw water cooling

Mach3 (USB port)

Iron casting T slot

Machine Videos

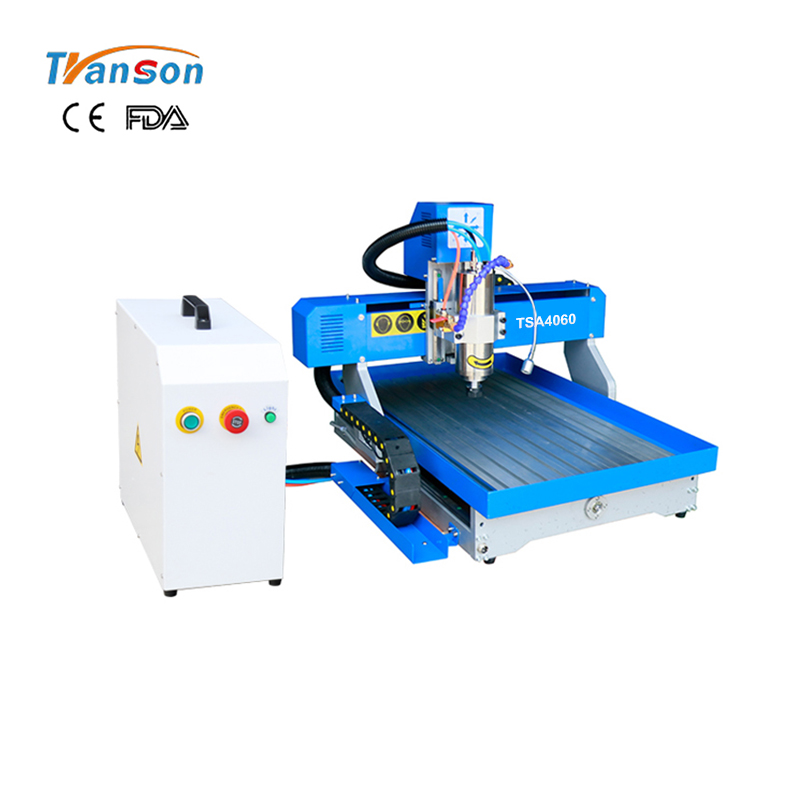

Mini CNC Router also called small CNC Router, mini cnc machine, desktop CNC Router, home CNC router, hobby CNC router. Compared with other ordinary CNC machines, this mini CNC engraving machine has a relatively small size mainly including 300*400mm 400×600 mm 600*900mm. This type of mini CNC router has a compact structure so it is easy to move and use. And this CNC wood router adopt advanced industrial numerical control operation software and typesetting processing software to complete various processing requirements on small work piece of users. Therefore, Transon this mini CNC wood router is welcomed by woodworking and the advertising industry.

Engraving aluminum

Mini CNC Router 3 Axis 4 Axis For Metal Nonmetal 4040

Engraving metal

Parameter

Model	Economic TSA3040	Economic TSA4060	Economic TSA6090
XYZ axis travel distance	300x400x120mm	400x600x120mm	600x900x140mm
Feeding height	120mm	120mm	140mm
Table size	320x600mm	400x800mm	600x1120mm
Spindle power	1.5kw(2.2kw optional) water cooling(0-24000RPM)
Rail type	Square rail
Control system	NCWORK 3 axis (Ethernet port)
Drive type	Stepper motor
Transmit	Ballscrew
Table type	Aluminum profile T slot clamping
Max travel speed	6000mm/min
Working precision	0.05mm
Power	AC220V±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code	G code
Machine	710620600mm	920720600mm	1230930650mm
packing size	850760750mm	1060860750mm	13701070800mm
Net/Gross weight	55kg /75kg	70kg / 90kg	85kg / 110kg

PRODUCT DETAILS

3kw water cooling spindle

Stepper motor and driver

Mach3 controller Download

Control Box

TBI Ballscrew on z axis

Attachment

APPLICATION

Wide range of application:

Except for advertising work. It is mainly designed for woodworking,any kinds of wood and plastic material processing work, door making,furniture making etc.

Suitable for Materials:

Engrave and cut on soft wood,hard wood, MDF, Aluminum and plastic composite panel,

Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet,PCB Aluminum sheet etc.
