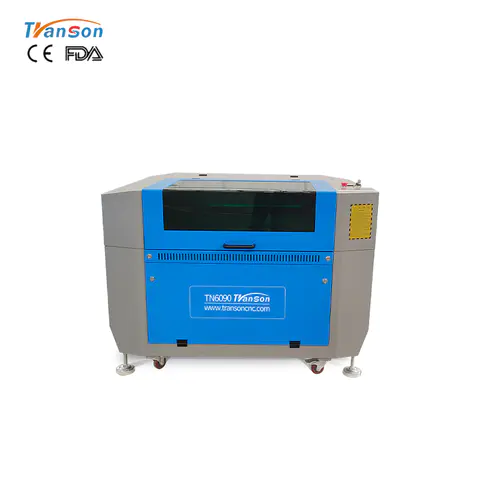

High-precision Laser Cutting Machine Transon 6090 Is Used For...

High precision laser cutting machine

Transon 6090 is used for acrylic wood and non-metallic materials

Model:TN6090

Working Area:900mm*600mm/ 35.43in*23.62in

Laser Power: 80w 100w 130w 150w,200W, 260W

Tube: Reci glass tube or Synrad Coherent RF Metal tube.
Worktable: Honeycomb, Metal slate, Lift table
Other Optional: Auto Focus, Red dot pointer, rotary device with chuck or roller

这里可以自定义设置

TN6090 CO2 Laser Cutting Machine

Cutting and Engraivng Solutions of Wood, MDF, Acrylic,

Cloth, Leather, Double color sheet, Other nonmetal materials.

Fast Speed, Smooth Cutting Effect, High Efficiency

Machine Videos

TN6090 laser engraver cutter

cut 5mm acrylic

Parameter

Transon CNC CO2 Laser Cutting Machine With CCD Camera
Model	TN4060	TN6090	TN1290	TN1390	TN1490	TN1610
Working Area	600mm400mm/ 23.62in15.75in	*900mm600mm/ 35.43in23.62in*	1200mm900mm / 47.24in35.43in	1300mm900mm/ 51.18in35.43in	1400mm900mm/ 55.12in35.43in	1600mm1000mm / 63in39.37in
Laser Power	40w/60w/90w/100w	90w/100w/120w150w/180w
Laser Type	CO2
Worktable	Metal slat/Honeycomb (standard with one)
Engraving Speed	0-70000mm/min
Cutting Speed	0-40000mm/min
Highest Scanning Precision	2500DPI
Power Requirement	110V220V,50HZ/60HZ
Min. Shaping Character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic Format. Supported	BMP, PLT, DST, DXF, Al
Software Supported	Coreldraw, Photoshop, AutoCAD, TAJIMA
Control System	Ruida brand
Machine Work Software	Rdworks
Laser Output Control	1-100% by setting in the software
Interface	USB
Driving System	Stepper
Color Separation	Yes
Optional Part	Up and down worktable/Red dot poiner/Auto focus/Rotary attachment with roler/ Rotary attachment with cuck
Spare Parts suggested	Extra laser tube/Extra 1 lens and 3 mirrors

PRODUCT DETAILS

Observation windown design

The worktable cover is installed transparent tempered glass.

Linear guider

Square sharp linear guider, small resistance, smooth sliding, low noise, good balance performance.

Laser head

With high quality metal reflector and focus lens , as well as red dot pointer,it makes the working speed faster,precision higher.

CO2 laser tube

China top brand Reci laser trube, 10,000 hours life time, 300 days’ warranty, optional power:90w/100w/120w/150w/180w (Max power).

Core control system

Adopting China top brand Ruida laser control card, reasonable wiring can reduce electromagnetic interference and enhance the stability of machine operation.

Laser power supply

Constant laser power supply to laser tube, with exhaust fan.

Control panel

LCD digital control panel with USB interface, support offline work.

Socket

Multi-function socket at the back of the machine.

Update to mechanical lock of the top cover

Compare with magnetic door, will be more safter and longer life span.

Metal slat worktable

Metal slat worktable can meet the flatness requirment of hard materials, like wood, acrylic, etc.

Full-direction Wheel & position leg

It can help move and fix the laser machine easily.

Honeycomb worktable

Makes the board more solid and more flat.It’s suitable for engraving work and also good at cutting leather and other soft materials. （Note:one worktable standard with machine: Metal slat / Honeycomb）

Exhaust fan

Heat dissipation is fast, can extend the life of machine.

Water chiller

CW3000 water chiller with water temperature display and alarm system can avoid over burning, keep water circulation successful.

Air pump

Air pump can keep forcus lens clean and cool the laser head.

Tool box

Tools for maintaining the machine are included.

Three mirrors and one lens

High quality reflection mirrors and focus lens, high efficiency and stable performance.

OPTIONAL PARTS：

Up and down worktable

Making worktable move up and suitable for processing materials in different thickness.

Red dot pointer & Auto focus

Red dot pointer makes laser beam visible,so adjustment of laser beam would be much easier. Auto focus can set the optimal focus according to thickness of objects automatically.
(They need work together with up and down worktable).

Worktable

Honeycomb / Metal slat/
High density metal slat worktable is used for leather, cloth and small parts cutting, the distance between two metal slat will less than 2cm.

Rotary device with roller

For heavy and fragile round materials’ engraving,such as glass cup,bottle, etc. It should work together with up and down worktable.

Rotary device with clip

For round materials’ engraving,such as wood,etc. It should work together with up and down worktable.

APPLICATION

Applicable industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoreation, arts and crafts, electronics and electric appliances, etc.

Applicable Materials:
Double color sheet, acrylic, glass, wood, mdf, bamboo ware, coconut shells, paper, leather, cloth, marble, ceramic tile, shells and other nonmetal materials.

PACKAGING & DELIVERY

Model	Laser Power	*Machine size LWH(m)**	*Package Size LWH(m)**	Volume (cbm)	Net Weight	Gross Weight(kg)
TN4060	40w	1.060.811.05	1.20.911.2	1.31	180	220
	60w	1.210.811.05	1.30.911.2	1.42	190	230
	90w	1.310.811.05	1.40.911.2	1.53	200	240
	100w	1.410.811.05	1.50.911.2	1.64	210	250
TN6090	75-100w (W1 / W2)	1.361.011.05	1.461.11.2	1.93	220	280
	100-120w (W4)	1.611.011.05	1.711.121.2	2.3	250	320
	130-150w (W6)	1.811.011.05	1.911.121.2	2.57	260	340
	150-180w (W8)	2.031.041.05	2.11.121.2	2.82	280	360
TN1290	75-120w (W1/ W2/W4)	1.661.311.05	1.871.411.25	3.3	350	420
	130-150w (W6)	1.881.311.05	1.981.411.25	3.49	370	450
	150-180w (W8)	2.031.341.05	2.181.411.25	3.84	380	460
TN1390	75-150w (W1/W2/W4/W6)	1.761.311.05	1.871.411.25	3.3	355	425
TN1390	150-180w(W8)	1.981.311.05	2.081.411.25	3.66	385	465
TN1490	75-150w (W1/W2/W4/W6)	1.861.311.05	1.971.411.25	3.47	360	440
TN1490	150-180w(W8)	2.061.311.05	2.161.411.25	3.8	390	470
TN1610	75-180w (W1/W2/W4/W6/W8)	2.151.481.07	2.231.551.24	4.3	500	590
Above packing information for Reci brand laser tube just for reference, any add or change of components may differ changes.
We will measure each package's size and weight before shipping.
