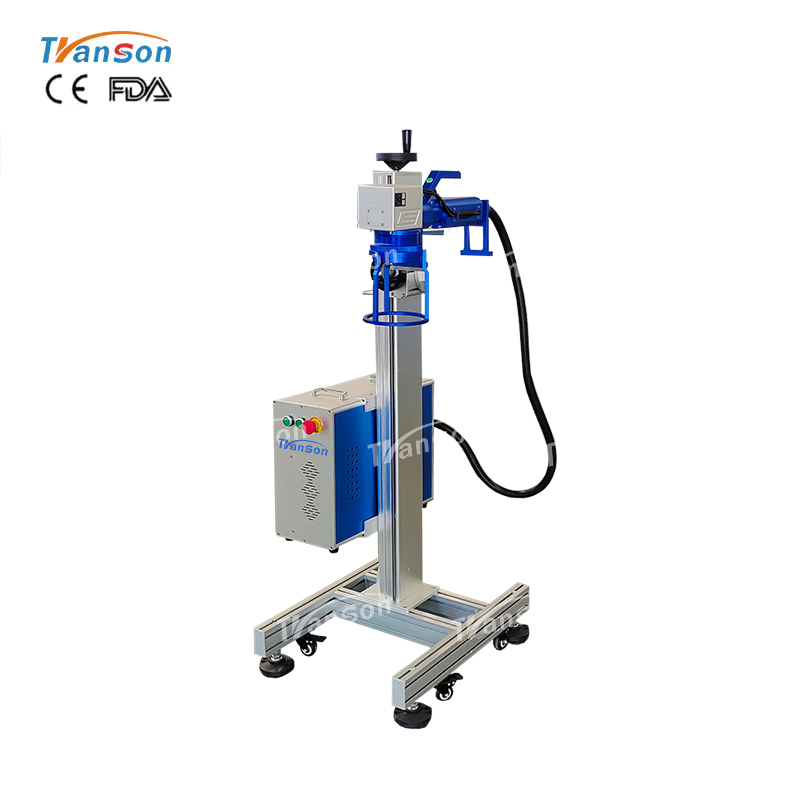

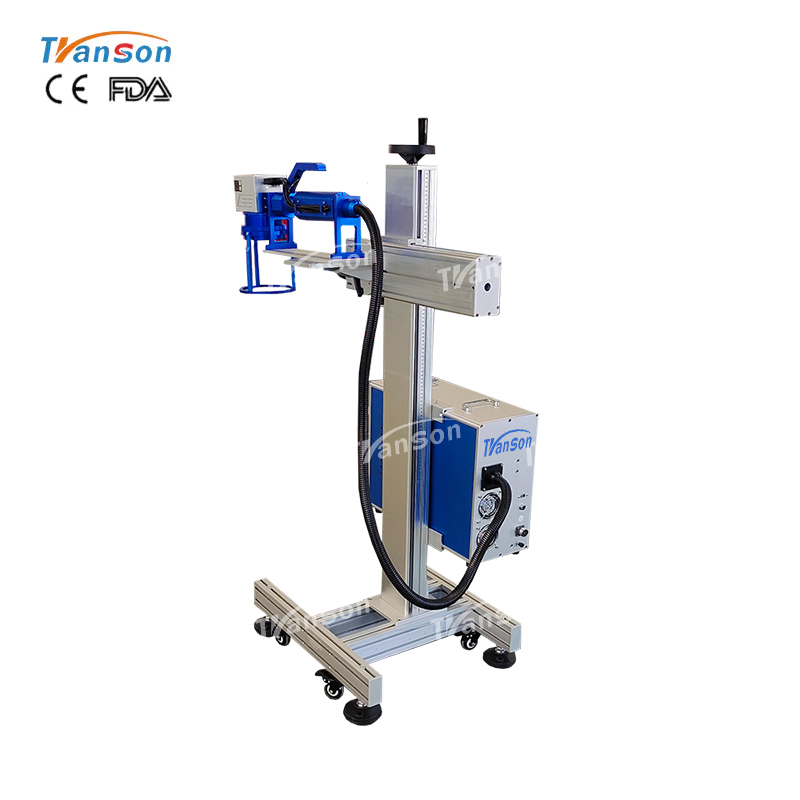

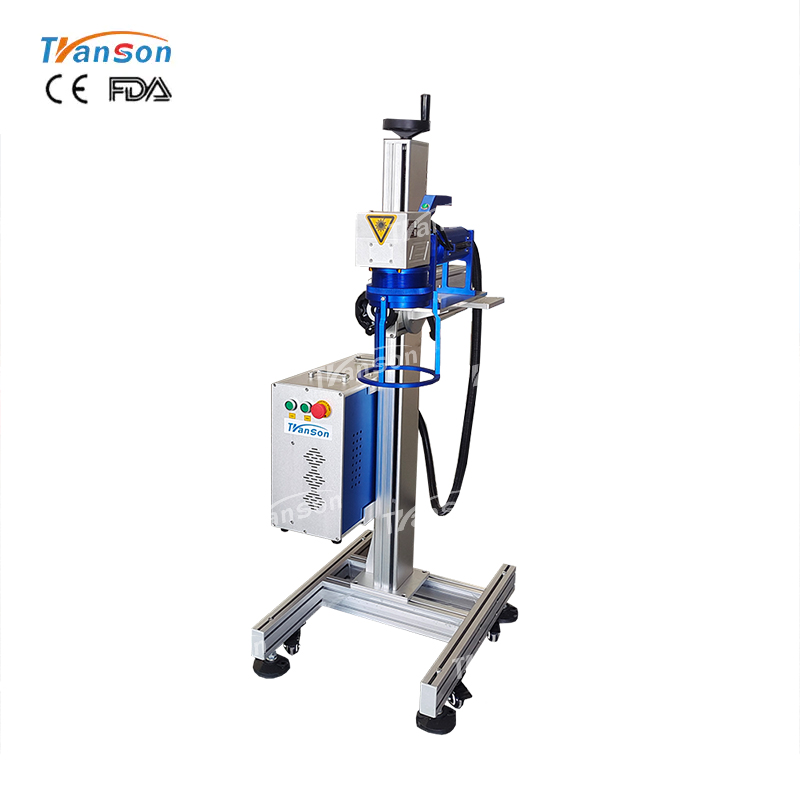

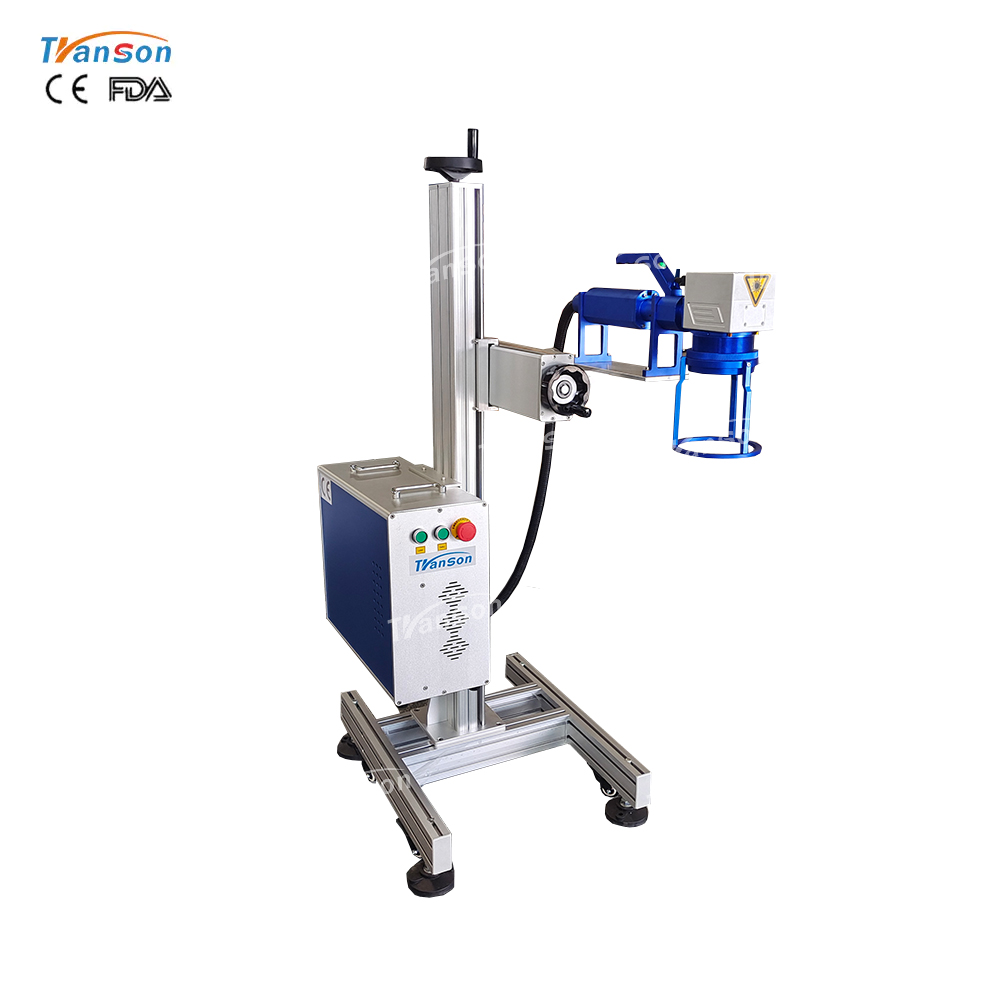

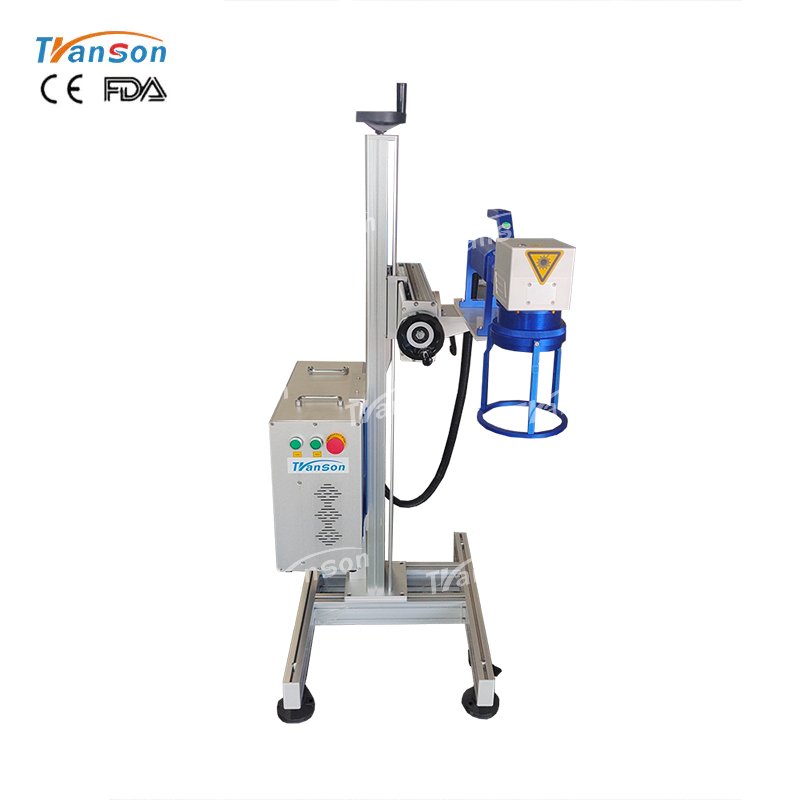

Handheld Fiber Laser Marking Machine Tsf

Desktop Handheld Fiber Laser

Marking Machine TSF

Fiber Model:TSF-20 TSF-30 TSF-50 TSF

Power: 20w 30w 50w 60w 100w
Fiber model: Q switch or Mopa
Field lens:Standard:110*110mm working area with focus rule
Up and down: Manuel or electric
Rotary Device: Optional

这里可以自定义设置

Handheld Fiber Laser

Marking Machine

1, Faster Marking Solutions for Metal and Nonmetal Materials

2, 50W above with cutting ability for thin silver, gold, aluminum.

3,Long Life Span, High Precision, Low maintenance

4, CE FDA certified

Machine Videos

Laser marker stainless steel can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Parameter

Product Name	Fiber Laser Machine
Type	Handheld with tall pillar model
Model	TSF-20	TSF-30	TSF-50	TSF	TSF
Laser power	20w	30w	50w	60W （Mopa)	100w (Mopa)
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Output fiber length	1~2m
Power supply	220V/50hz, single phase (110V/60hz optional)
Cooling system	Air Cooling
Graphic format supported	Image Files: BMP.JPG.JPEG.GIF.TGA.PNG.TIF. TIFF
	Vector Files: Al. PLT. DXF.JPC.SVG.NC.G.BOT.GBR. DST
Working area	Standard:110*110mm working area with focus ruler
	Optional: 1.200200mm with focus ruler 2. 300300mm without focus ruler
Standard	Manual up and down pillar
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability accurac	0.003mm
Power Machine	300w-800w(Depend on fiber laser power)
Operation temperature	0~40°C
Operation system	Compatible with Microsoft Windows 7、8、10 、11system
Operating environment	Clean and free of dust
Machine size/Packing size	1370X420X530mm
Gross weight	81kg
Optional: (Note: packing size and gross weight may rise if choose optional parts)	1. Touch screen computer 12 inch 2. Rotary device 3. Air filter

PRODUCT DETAILS

Product Details

Hand switch

Handheld handle with split design can be moved accordingto processing needs, to make marking more convenient.

Switch

Humanized control system, easy to leam, dust proof design.

Focus Circle

Focus circle adjust the focal length by rotating, to ensuremarking accuracy.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
