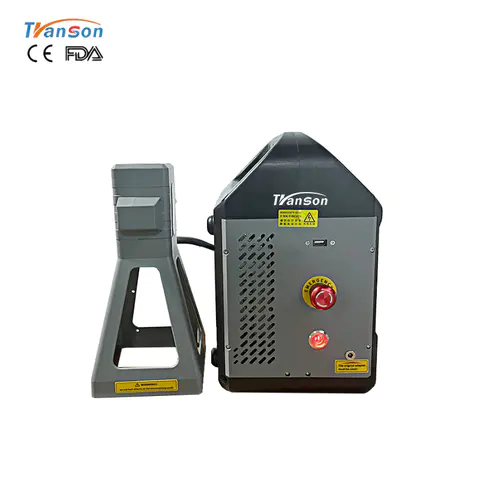

Handheld Fiber Laser Marking Machine Portable Metal Laser Engraver

TSF-Portable Handheld Fiber Laser Marking Machine Portable Metal Laser Engraver

Power: 20W/ 25W/ 50W optional
Laser wavelength: 1064±1nm
Control System:Linux system
Power supply:220V or 110V, optional
Working area:Standard:70mm*70mm/ 100mm*100mm

这里可以自定义设置

Mini Handhold Portable Metal

Fiber Laser Marking machine

Feature：

Mini Fiber Laser Marker

Handheld fiber laser Marker

Portable fiber laser Marker

Long Life Span, High Precision, Low maintenance

Machine Videos

Laser marking can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Parameter

Model	TSF-Portable
Laser Type	Fiber Laser, wavelength 1064nm
Laser brand	MAX photonics
Laser output power	20W/ 25W/ 50W optional
Max power consumption	20W: 120W, 30W: 150W, 50W: 200W
Power supply	220V or 110V, optional
Lithium battery capacity	12000mA
Full battery work time	3.5-5.5 hours (use 100% power to mark)
Bttery recharge time	1.5hours
Marking type	QR code, barcode, Chinese, English, numbers, logos, patterns, etc.
Marking area	70mm70mm/ 100mm100mm
Control System	Linux system
Language support	English, Portuguese, Japanese, Korean, Russian, Italian, Spanish, French, German, Arabic, Chinese, etc.
Preview marking position	By inner red dot pointer
USB port	With 1 USB port, support import file to mark directly.
File format support	Bitmap file: JPG,PNG,BMP, etc. Vector file: DXF,PLT, SVG, etc.
Power consumption of the whole machine	≤500W
Net Weight	20w 25w 50w no battery: 6.4kgs 20w 25w/ 50w with battery: 7.8kgs/ 8.4kgs
Machine size	280mm220mm330mm (length, width and height)
Power supply	220V or 110V, optional
After-sales service	The whole machine is guaranteed for one year, and the power board and laser are guaranteed for two years.

PRODUCT DETAILS

With USB Interface

With USB port, support mark file from USB memory card directly.

Touch Screen Control Panel

7 inch touch screen control panel, smooth, easy operate, support 12 languages: English, Portuguese, Japanese, Korean, Russian, Italian, Spanish, French, German, Arabic, Chinese.

Support Lithium Battery

Optional 12000mA Lithium battery.Machine standard with power plug easy get power from socket. When need machine work out door, can choose battery.

Laser field lens

Better light-gathering performance

Control switch

Safe and easy to use, high controllability

MAX Fiber Laser Source

Hot sale MAX brand fiber laser source, with 100,000 hours life span and 2 years warranty. Each fiber laser source standard with test report.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
