Gantry Type Large Working Area Fiber Laser Marking Machine

Gantry Type Large Working Area fiber laser marking machine

Fiber Model:TSF-20 TSF-30 TSF-50 TSF-60（Mopa) TSF-100（Mopa)

Power: 20w 30w 50w 60w 100w
Laser wavelength: 1064±1nm
Field lens:Standard 200*200mm (100*100mm and 300*300mm optional)
Rotary Device: Optional

这里可以自定义设置

Gantry Type Large Working Area

fiber laser marking machine

1, Faster Marking Solutions for Metal and Nonmetal Materials
2, 50W above with cutting ability for thin silver, gold, aluminum.
3,Long Life Span, High Precision, Low maintenance
4, CE FDA certified

Machine view

laser etching metal can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Parameter

Product Name	Fiber Laser Machine
Type	Gantry Type Large Working Area fiber laser marking (Enclosed type optional)
Model	TSF-20	TSF-30	TSF-50	TSF	TSF
Laser power	20w	30w	50w	60W （Mopa)	100w (Mopa)
Working area	600400mm/ 600600mm/ 800*600mm (Customizable)
Filed lens	Standard 200200mm (100100mm and 300*300mm optional)
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Output fiber length	1~2m
Power supply	220V/50hz, single phase (110V/60hz optional)
Cooling system	Air Cooling
Graphic format supported	Image Files: BMP.JPG.JPEG.GIF.TGA.PNG.TIF. TIFF
	Vector Files: Al. PLT. DXF.JPC.SVG.NC.G.BOT.GBR. DST
Standard	Manual up and down pillar
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability accurac	0.003mm
Power Machine	300w-800w(Depend on fiber laser power)
Operation temperature	0~40°C
Operation system	Compatible with Microsoft Windows 7、8、10 、11system
Operating environment	Clean and free of dust

PRODUCT DETAILS

Product Details

High speed 3D scan head

High speed 3D scan head, standard markingarea 200x200mm.(100*100mm and 300*300mm optional)

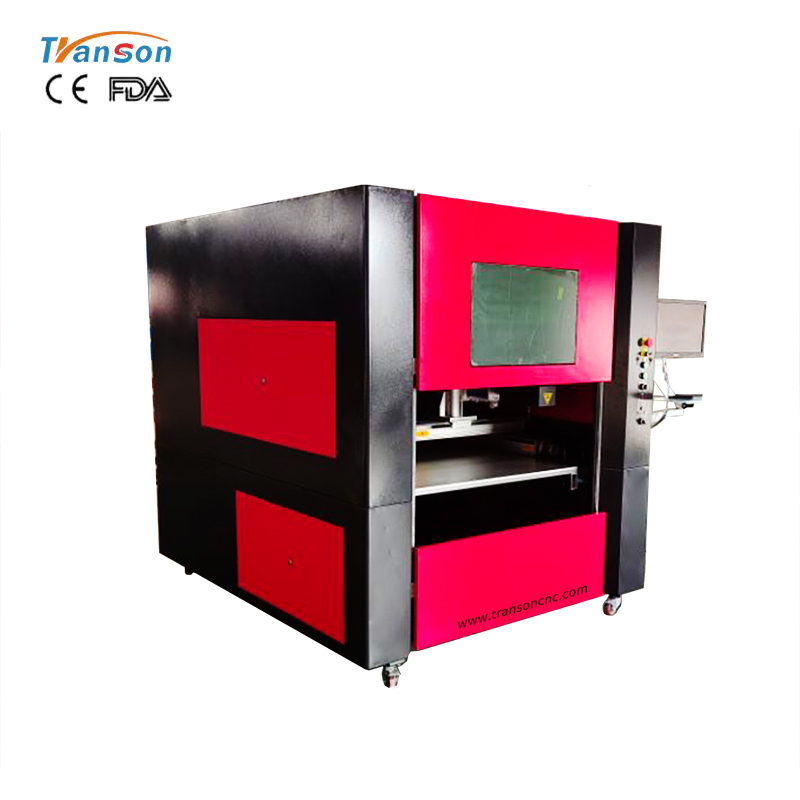

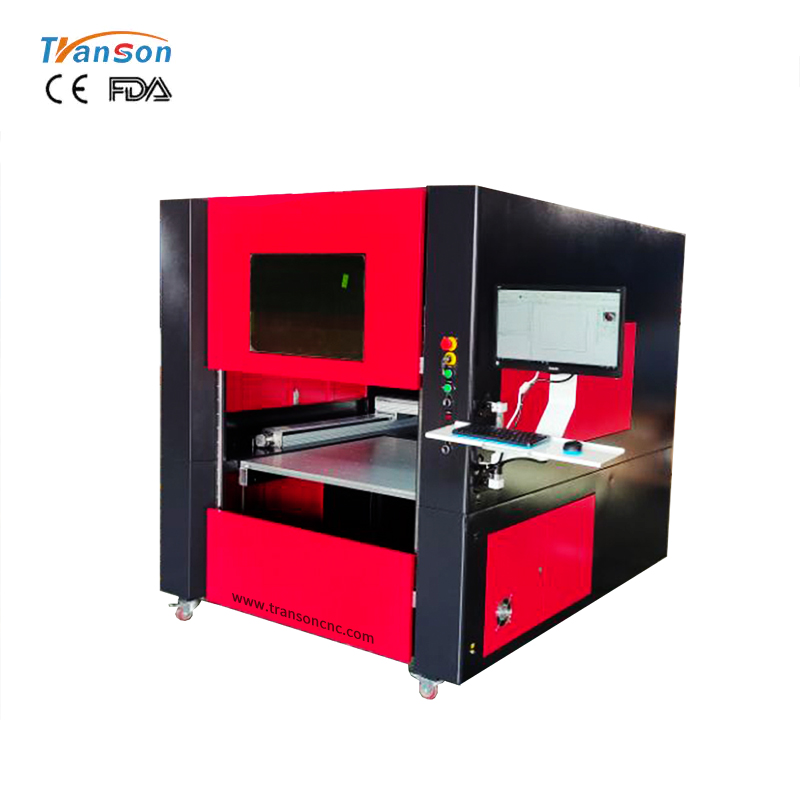

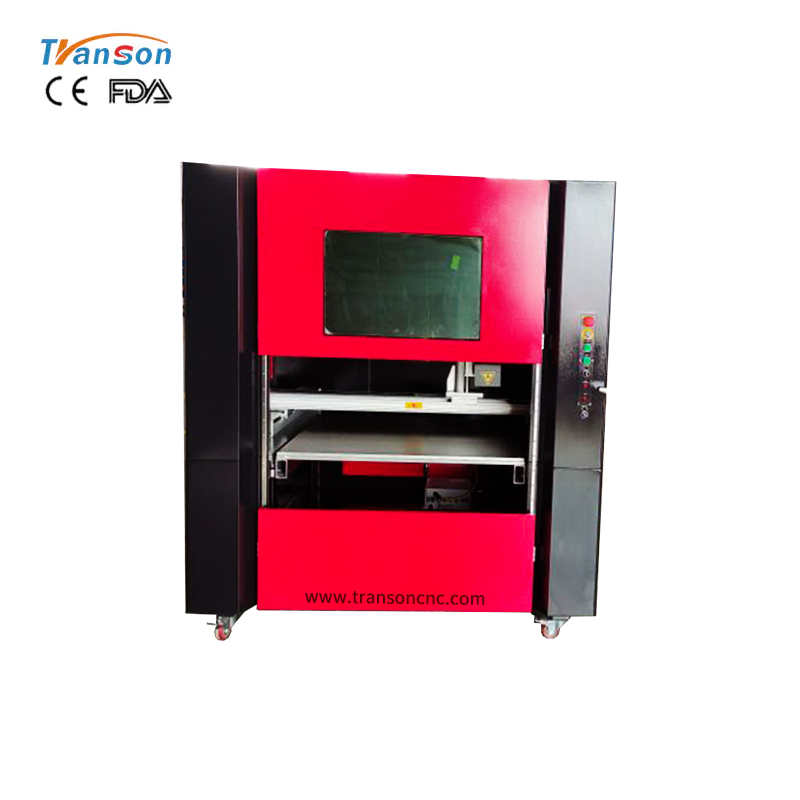

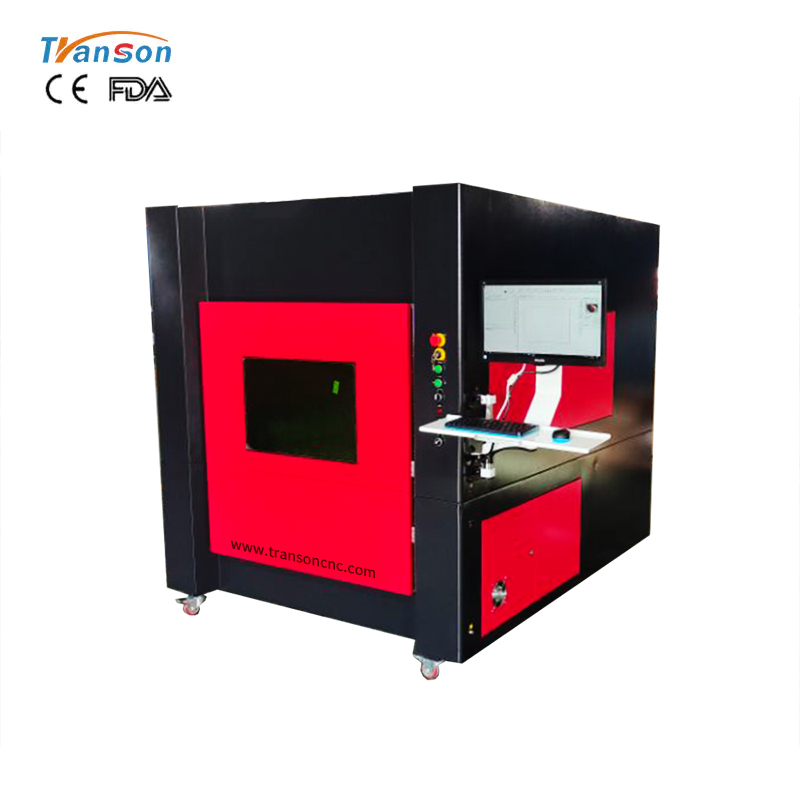

Enclosed model

Closed shape model, no harm to operator and environmental protection

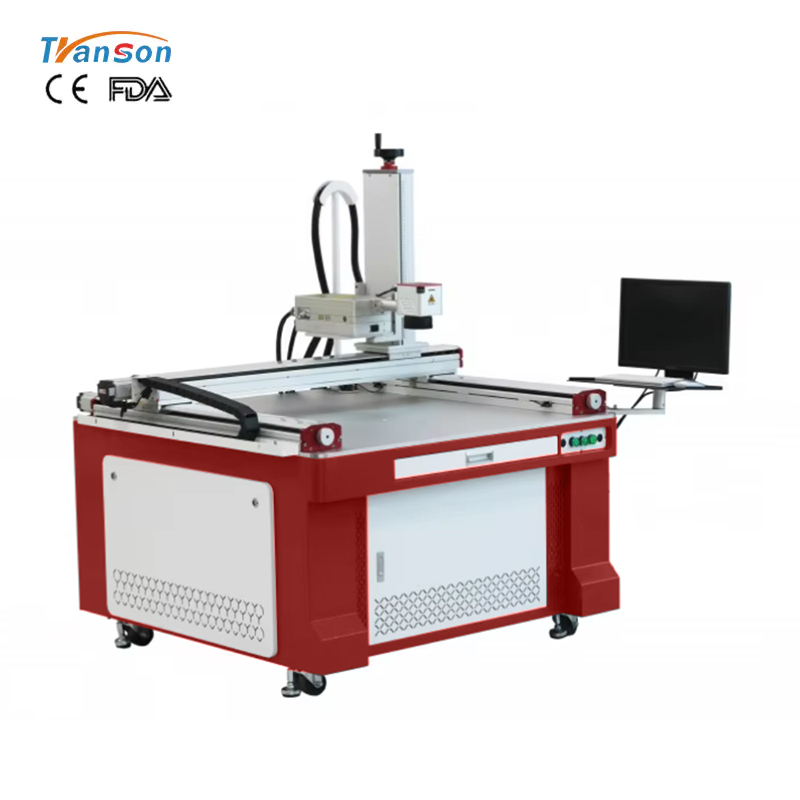

Large Working Area fiber laser marking

Standard working area 600*400mm/ 600*600mm/ 800*600mm (Customizable)

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
