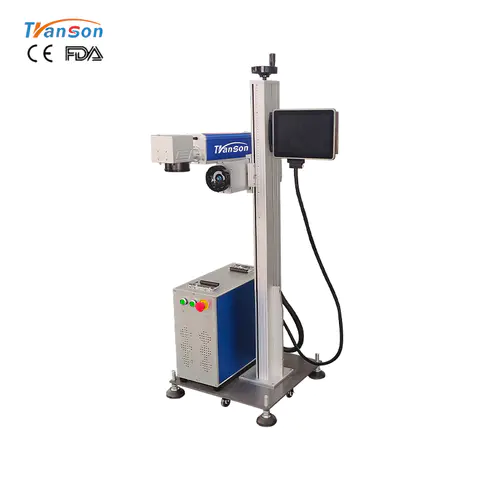

Fiber Laser Flying Marking Machine

Flying Production Line Laser Marking Machine

Power: 20w 30w 50w 60w
Fiber model: Q switch or Mopa
Field lens:50*50mm, 75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm,

Rotary Device: Optional

这里可以自定义设置

FLYING LASER MARKING

MACHINE

Sealed model no harm to your body, small window no harm to your eye.

With auto focus function, easy operate.

Connect to air cleaner, no smoke come out, suit work in any public area like

hall, shoppingcenter,etc.

Machine Videos

Flying Production Line Laser Marking Machine mark on mirror

Parameter

TRANSON Flying Production Line Fiber Laser Marking machine
Model	TSF-20/ TSF-30/ TSF-50/ TSF-100
Laser type	Fiber Laser(CO2 laser source optional)
Laser power	20W 30W 50W 100W
Beam quality	M2< 1.5
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Output fiber length	1~2m
Frequency of pulse	20~250KHz
Power supply	220V/50Hz(110V/60Hz can choose)
Cooling system	Air Cooling
Marking content support	Import vector files like PLT,
	Add Barcode, QR code
	Add Text, series number, etc.in SHX, TTF and CSF.
Working area	110110mm(Standard), 5050mm,7575mm,150150mm,175mm175mm,200200mm,300*300mm(Optional)
Marking depth	<1mm
Marking speed	<7000mm/s
Min. line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-800W(Depend on fiber laser power)
Operation temperature	-15~+60°C
Operating environment	Clean and free of dust
Package size/ Gross weight	1455357cm/92kgs （without conveyor belt）
Package / Gross weight	1626776cmx/129kgs (with 1.5m conveyor belt)
Warranty	Three years for laser source, one year for machine
Optional	Conveyor belt at different size/ CO2 laser source for nonmetal/ Auto feeding system

PRODUCT DETAILS

APPLICATION

1.Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

2.Applicable Materials

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

stainless steel bearing mark

Mark logo on pens

Mark logo on electric kettles

Curved surface marking

precise deep mark on aluminum

Animal ear tag mark

Mark logo on coating material

Double color sheet mark

MOPA colorful mark on stainless steel

Mark photo on alumina

Phone charger mark

Stainless steel mark text in circle

Advantages

1).Wide range: Can be used on many materials like metal, plastic, leather, alloy etc. Can be used in many industries like Jewelry engraving, Medical devices, Phone case engraving, Hardware industry, stainless steel tableware, electron components marking etc.

2).Permanent marking: Laser marking is a permanent marking. It won’t fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.

3).Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.

4).Easy to operate: Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.

5).High precision: 0.003mm re-position accuracy. Minimum line width 0.01mm.

6).Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.

7).Portable: Small footprint, easy to move and transportation. Size like a computer case.

Benefits

1).Environmentally friendly: Using no harsh chemicals during the process. No need water chiller to cool, small size small occupation, can be easily installed in many places.

2).Cost-effective: No maintenance during the 100,000 hours working life. One machine can be used in many different materials & industry. Minimal part replacement

3).High efficiency: Computer operated, suitable for automatically processing(like production line, automatically filling line).
