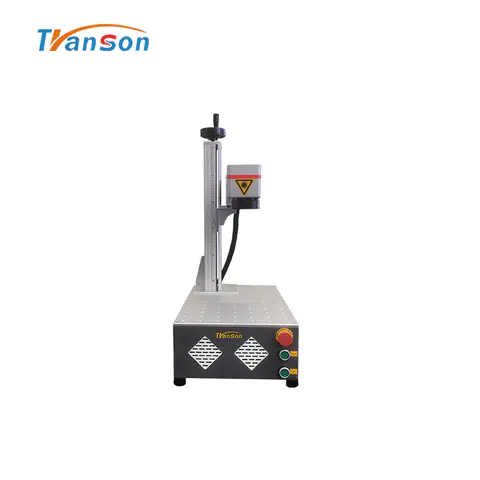

Economical super mini fiber

laser marking machine


Power: 20w 30w 50w
Fiber model: Q switch or Mopa
Field lens:50*50mm, 75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm
Up and down: Manuel or electric
Rotary Device: Optional

这里可以自定义设置

Economical super mini fiber



laser marking machine





Faster Marking Solutions of


Metal and Nonmetal Materials


Long Life Span, High Precision, Low Maintenance


Easy to Carry


Suitable Shipping by Air-timely Delivery

     Machine Videos

写点什么 ...

Machine Videos

Economical super mini fiber laser marking machine
mini fiber laser marking machine, aluminum deep mark
mark photo on aluminum
20W fiber laser marking QR code on 0.5cm


Model

TSF-20/TSF-30/TSF-50

Laser type

Mini Fiber Laser

Laser power

20W(30W/50W optional)

Beam quality

M2<1.5

Laser wavelength

1064±1nm

Power adjustment   range

10~100%

Output fiber length

1~2m

Frequency of pulse

20~250KHz

Power supply

220V/60HZ/8A(110V/60HZ/15A   can choose)

Cooling system

Air Cooling

Graphic format   supported

Image Files: BMP.JPG.JPEG.GIF.TGA.PNG.TIF.   TIFF

Vector   Files:   Al.PLT.       DXF.JPC.SVG.NC.G.BOT.GBR. DST

Working area

Standard:110*110mm,
                         Optional:50*50mm,75*75mm,150*150mm,175mm*175mm,200*200mm,300*300mm

Marking depth

<1mm

Marking speed

<7000mm/s

Min. line width

0.05mm

Repeatability     accurac

0.003mm

Power Machine

300w-800w(Depend non   fiber laser power)

Operation temperature

0~40°C

Operation system

Compatible with   Microsoft Windows XP7810     system

Operating environment

Clean and free of   dust

Warranty

Three   years

Packing     /Package size

650mm*350mm*860mm/840mm*450mm*380mm

Net     /Gross Weight

36kg/56kg



PRODUCT DETAILS

OPTIONAL PARTS OF Transon Super Mini Fiber Laser Marking Machine:

Rotary device

D60 Rotary device, can use to fix ring, bracelet, mugs, cylinder objects, etc. Can mark the inner and outer surface of ring, bracelet, marking while rotate.

Optional rotary device diameter 80mm, 100mm, 120mm, 160mm.

2D worktable

This 2D worktable can move in X Y axis, for slightly adjust the marking object position in XY axis.

Lens field

There are different sizes of focusing lenses available, such as, 50*50mm, 75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm.

Laser goggles

When operate laser machine, we suggest buy this laser googles to protect the eyes of operator.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
