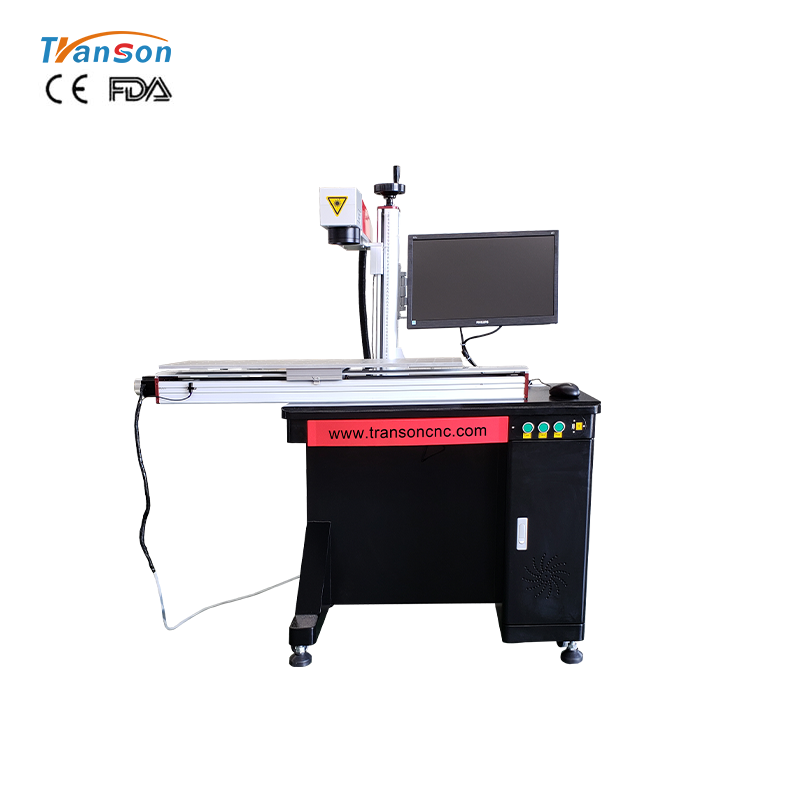

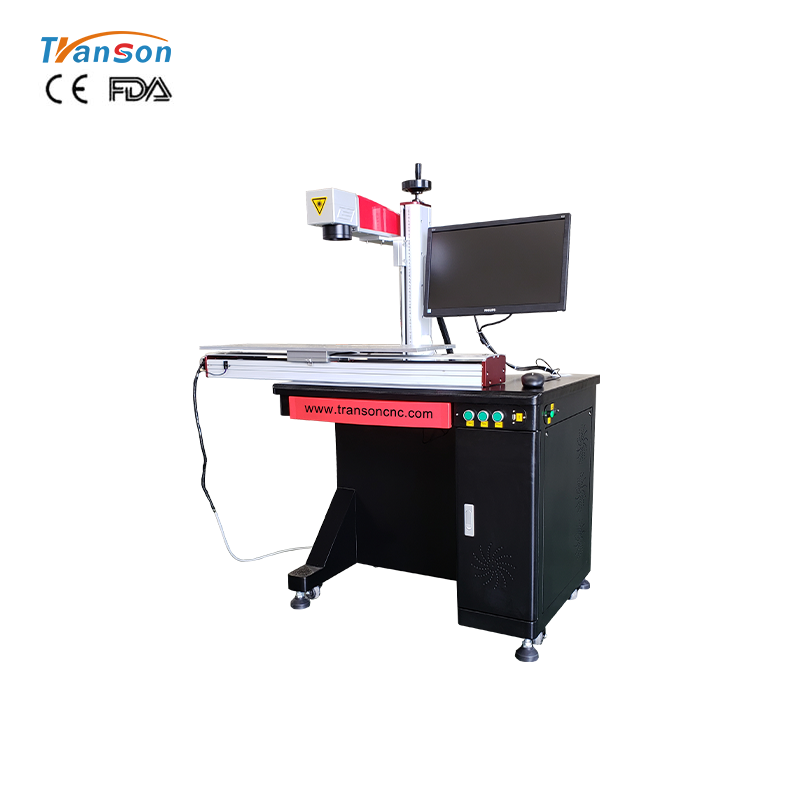

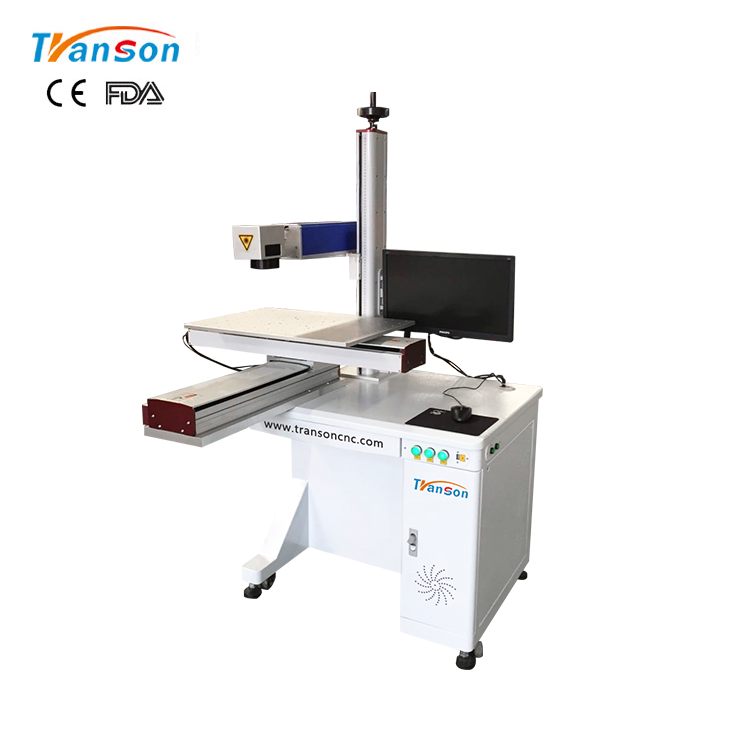

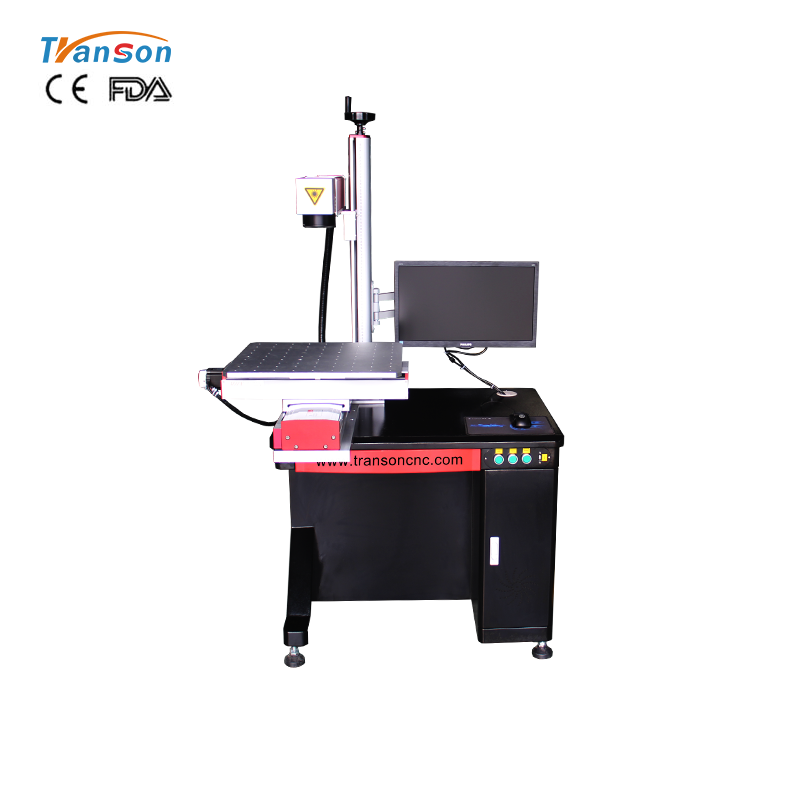

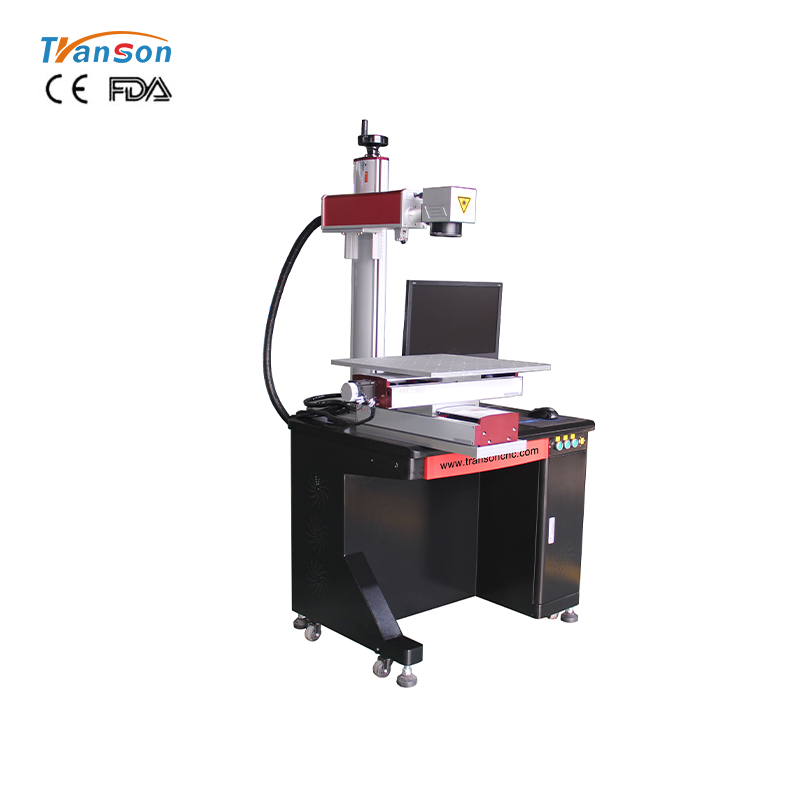

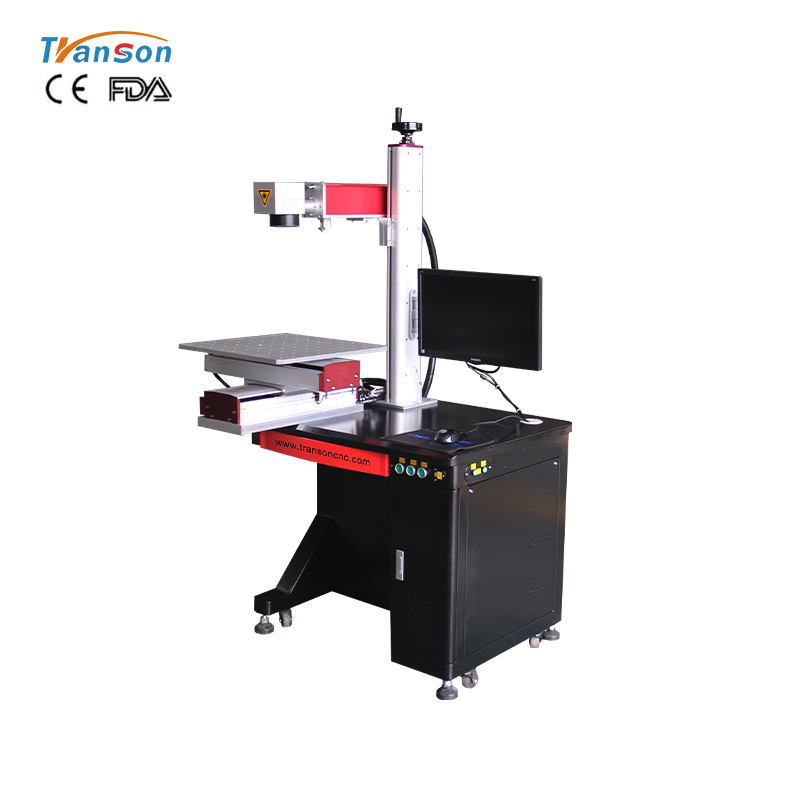

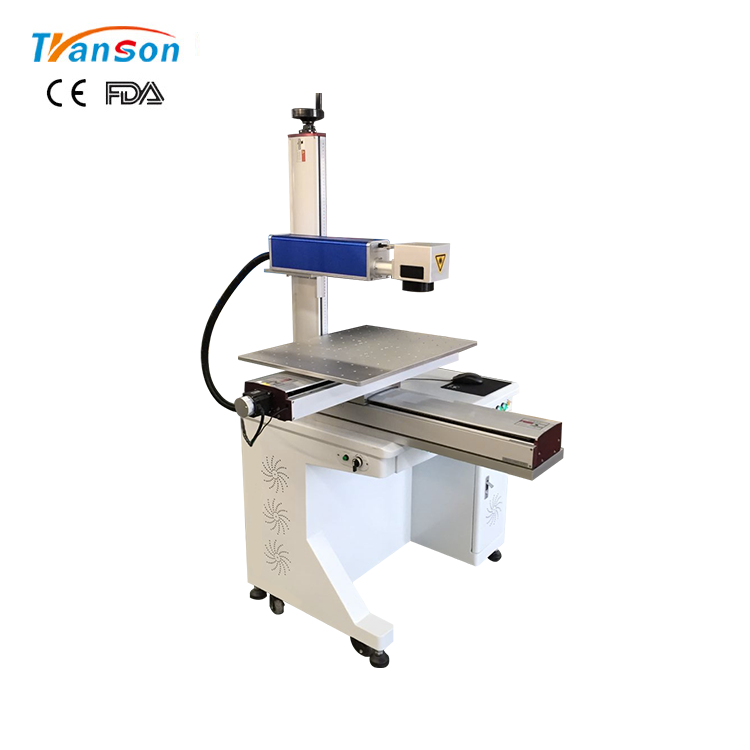

Desktop Fiber Laser Marking Machine with slider worktable 20W 30W 50W 100W

Power: 20w 30w 50w 100w
Fiber model: Q switch or Mopa
Field lens:50*50mm, 75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm
Up and down: Manuel or electric
Rotary Device: Optional

这里可以自定义设置

DESKTOP FIBER

LASER MARKING MACHINE

Faster Marking Solutions of

Metal and Nonmetal Materials

Long Life Span, High Precision, Low maintenance

Machine Videos

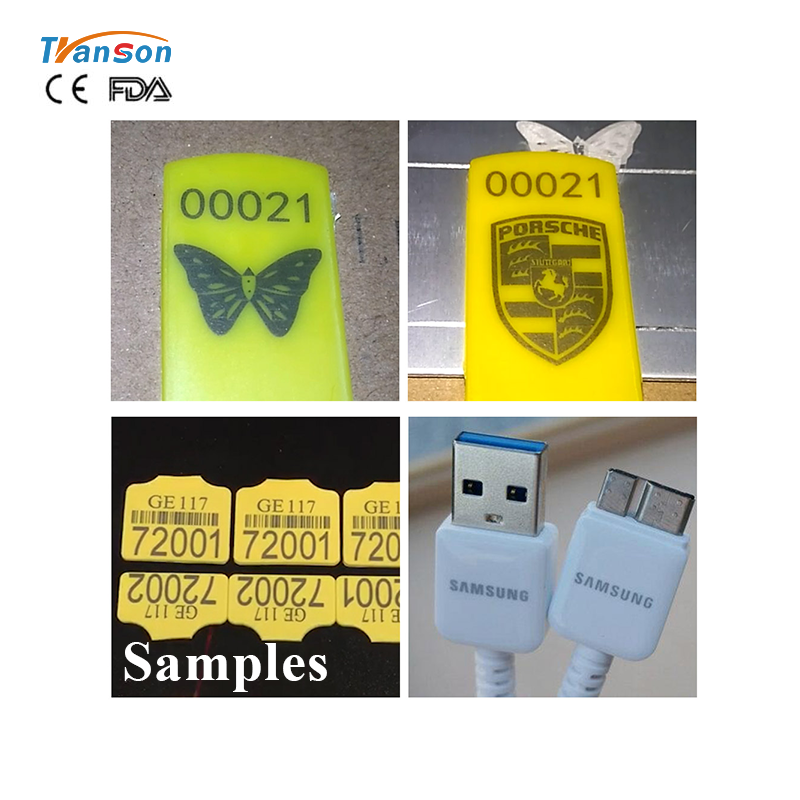

Desktop laser engraving machine can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Parameter

Model	Fiber Laser Marking Machine With Slider Worktable
Laser Power	20W/30W/50W/100W
Laser Wavelength	1064nm
Q-frequency	20KHz~30KHz
Divergence	0.3mard
Marking Range	110*110mm
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics
Marking Format	Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batchnumber,Serialnumber,Frequency,etc.
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	<0.5kw
Laser Module Life	>100000 hours

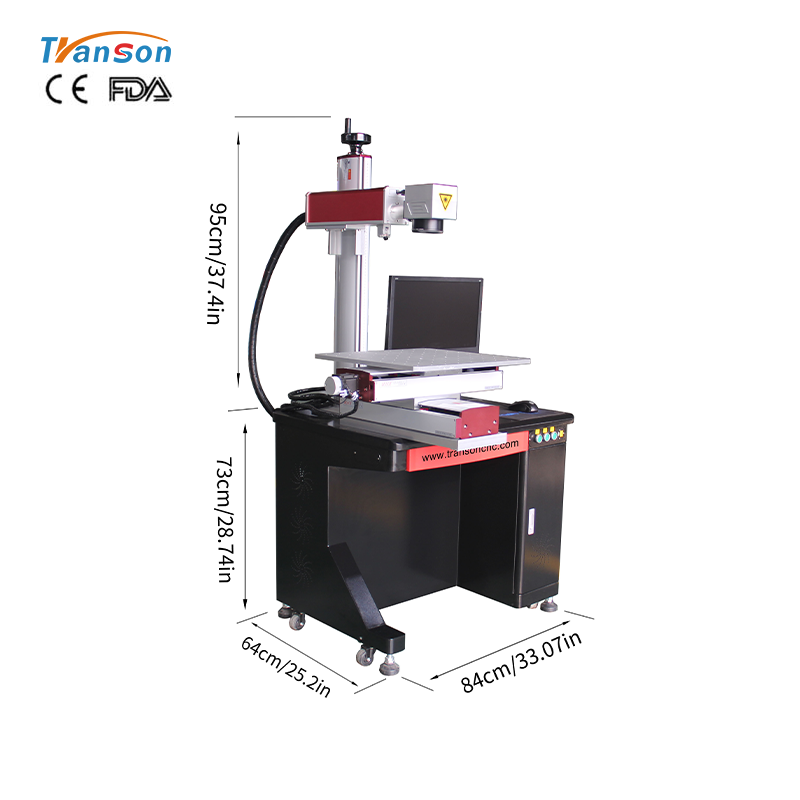

Packing size / Gross Weight	840mm640mm1680mm/163kg

PRODUCT DETAILS

Galvanometer scanner:

It is equipped with automatic scanning system, friendly operation process.

Focusing lens:

Laser focusing lens provides precision laser focusing performance.

Inner red dot pointer:

Showing where it will be marked on materials surface, moving together with fiber laser beam when marking.

Outer red dot pointer:

Easy to find the focal point when marking different thickness materials.

Control button:

Humanized control system with USB interface, easy to operate.

Keyboard area:

Keyboard table can be pushed and pulled, easy to use.

Host computer cabinet:

With a cooling hole, dust-proof design to protect the host computer.

Philips screen:

High-definition and large screen.

EZCAD software:

Easy to operate.

Fiber source:

High accuracy and speed, stable performance, long life span. Machine price different for different fiber laser source brands and power.

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

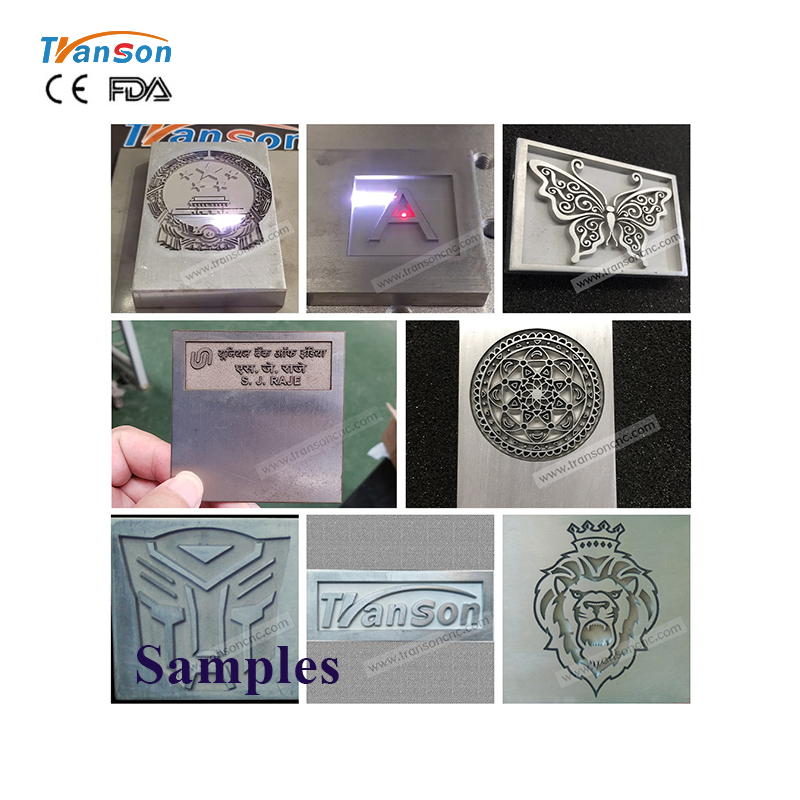

2mm deep mark on aluminum

photo mark on aluminum

stainless steel
