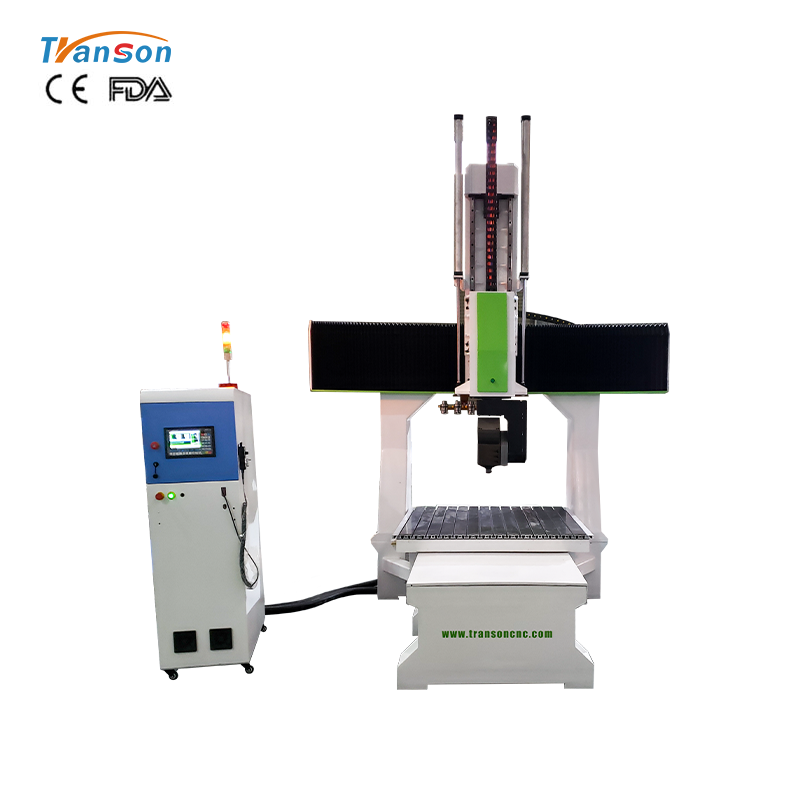

Cnc Router 5 Axis

ATC CNC Wood Router For Door Making For Wood MDF Plastic

Spindle: 3.2KW /5.5KW /9KW/12KW
Motor: Stepper motor /Hybrid servo motor /Yaskawa Servo /Panasonic servo /Delta servo
Vacuum cleaner: 3KW vacuum cleaner
Worktable: T-slot aluminum worktable /T-slot vacuum worktable
Vacuum pump: 5.5kw

这里可以自定义设置

ATC CNC Wood Router

Cutting, Drilling, Carving Solution of

Wood, Plastic, Other Materials

Precise, Efficient And Affordable

Machine Videos

CNC Router Machine For PVC

ATC CNC Wood Router For PVC

TRANSON CNC Woodworking CNC Router
Model	TSW1212
Brand	TRANSON
X Y Z Worksize	1800mm1200mm800mm
Working area	1200mm*1200mm
Control System	SYNTEC MA610-E5-RTCP(Mach3 USB, NC Studio, Syntec, etc Optional)
Spindle Power	12KW Water Cooling (0-18000rpm)( Air Cooling and Higher Power Optional)
Table	T-slot aluminum/t-slot Vacuum(Optional)
Driver Motor	Yaskawa Servo(China Easy Servo and Stepper Optional)
Rail Guide	Square rails from Taian
Transmit	XY Gear Rack and Z Ballscrew
Working Speed	0-15000mm/min
Command Code	HPGL,G code
Working Precision	0.05mm
Working Voltage	AC220V士10%/50~60HZ,380V5060HZ,3 PHASE
Compatible Software	Tvpe3/Arcam/UG/Pro-e/Mastercam/Ucancam V10 etc
Dust Collector	With
Gross Weight	1380KGS

PRODUCT DETAILS

Spindle

12KW Water Cooling Spindle .

Control system

SYNTEC MA610-E5-RTCP

Working table

T-slot Vacuum Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.

linear tool changer

Yaskawa Servo AND DRIVER

YAKO brand motor and driver, can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.

Transmission system

Taiwan TBI Ball Screw and Gear and Rack, Square rails from Taiwan
HG series linear guide way can achieve a long life with high speed, high accuracy and smooth linear motion.

Dust collector

Collect the dust when working,keep worktable clean.

accessories

Tools, software, connection cables, etc.

APPLICATION

Applicable industries and materials

Wood furniture industry:

Doors, Cabinets, Tables, Chairs.
Wave plate, fine pattern, antique furniture, wooden doors, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

Advertising industry:

Engraving and cutting various labels and number plate like signage, logo, badges, display board, meeting sign board, billboard.

Artwork and Decoration:

Wood crafts, gift box, jewelry box.
Art craft: engraving characters of any languages and graphics on souvenirs.

Others:

Relief sculpture and 3D engraving and Cylindrical object.
