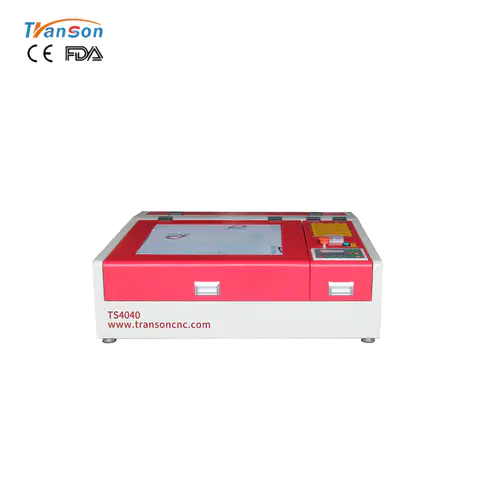

40W Mini Portable laser engraving cutting machine 4040



laser power:  40w 60w


这里可以自定义设置

TS 4040 LASER ENGRAVING



CUTTING MACHINE



Laser Power: 40w

Working area:400x400mm

Worktable: Honeycomb

Control System: ruida

Machine Videos

Model

TS4040

Working area

400mm*400mm / 15.75in*15.75in (L*W)

Laser power

40W/ 60W

Laser type

CO2 sealed laser tube, water-cooled

Worktable

Standard with Honeycomb worktble

Engraving speed

0-50000mm/min

Cutting speed

0-30000mm/min

Highest scanning precision

2500DPI

Power supply

220v/50Hz , 110v/60Hz

Min. shaping character

English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Graphic.format.supported

BMP, PLT, DST, DXF, AI

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Control system

High speed DSP control system brand Ruida or Leetro

Machine work software

Laser cut 5.3 (Leetro)/ RDWorks V8 (Ruida)

Laser output control

1-100% by setting in the software

Interface

USB 2.0

Driving system

Stepper

Color separation

Yes

Optional part

Red dot pointer

Spare parts

Extra laser tube/Extra 1 lens and 3 mirrors

Machine size/ Plywood box size

880*760*350mm/ 950*860*405mm(40W)
     880*760*350mm/ 1480*860*405mm(60W)

Plywood gross weight

80kgs

PRODUCT DETAILS

                             OPTIONAL PARTS:

Red dot pointer & Auto focus

Red dot pointer makes laser beam visible,so adjustment of laser beam would be much easier. Auto focus can set the optimal focus according to thickness of objects automatically.
(They need work together with up and down worktable).

APPLICATION

This is a mini Laser engraving machine :

which is designed according to market requirement. It is small enough and could be taken easily. TS4040 is the perfect choice for home shop, DIY, sign maker, engraver, panel maker, stamp making, arts and craft making and so on. It’s economical model, full function, small enough to fit into almost any work space.


It can be used to engrave or cut alone on the surface of various materials and can simultaneously conduct engraving and cutting. The features of equipment are fast operation speed, easy to use, low cost, reliable engraving effects and burr-free cut edges. Thus, the grinding is not necessary to handle again and the cutting waste is little. Besides, the engraving depth can be easily adjusted with high precision.



Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper-cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration and frame fabrication, etc..



Applicable Materials:
Non-metal materials such as double-color sheets, acryl, glass, wood planks, paper, leather, rubber, marble, granite and tiles, etc..
