20w 30w Small Lithium Battery Metal Aluminum Fiber Laser Marking Machine...

20W 30W Small Lithium Battery

Metal Aluminum Fiber Laser Marking Machine

Power: 20w 30w
Type:
Fieldlens:Standard:110*110mm, Optional:50*50mm,75*75mm,150*150mm,175mm*175mm,200*200mm,300*300mm
Cooling system: Air Cooling
Standard:Manual up and down pillar

这里可以自定义设置

Small Lithium Batteryy Fiber

Laser Marking Machine

(1) Fast working speed, high efficiency.
(2) Integrated design, small bulk, suitable for various occasions.
(3) Maintenance-free, no consumption, energy-saving power.
(4) Perfect marking logo, never fade.
(5)high performance, highly efficient and stable marking.

Machine Videos

This handheld Laser Marking Machine we have 20w 30w for optional.This Portable Fiber metal Laser Marking Machine is very easy to use, small, light, moveable. It is your best choice.

Handheld Lithium Battery Metal Stainless Steel Marking Laser Engraving Machine

Parameter

Laser	Fiber laser generator
Output power	20W,30W
Marking range	70x70mm,100x100mm(Optional)
Defecion seismic mimor	High-precision two-dimensional scanning system
Laser wavelength	1064nm
Focus the lens	F100/F160
Marking speed	≤7000mmss
Master control	Integrated motherboard, 8-inch capacitor fuly bonded to the screen
operating system	Linux system
Marking type of engraving	Redlett Postionen, Foxin
Line width	0.03mm
Repeatable positioning accuracy	0.01mm
Targeting method	Red light positioning, focusing
The number of engraved character lines	Any line within the valid marking range
Tenon Benn Gravid Charak Tryins	800 characters (related to material and printed content)
Font	Chinese and English, numbers, Chinese Traditional and other standard fonts
File format	BMP,DXF,HPGL,JPEG,PLT
Barcode	CODE39,CODE128,CODE126,QR
Power supply	110V/220VAC,Lithium(216wh)
Power consumption	145-250W
Operating temperature	0-40°
Total weight	6-6.8KG
Magnetic fixing function	Add $170.00

PRODUCT DETAILS

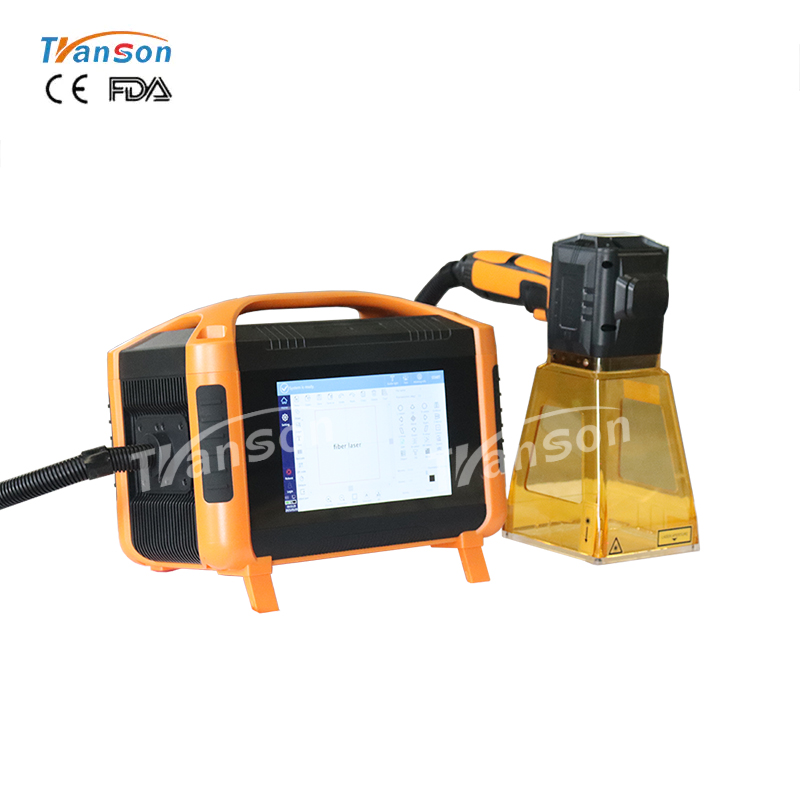

Humanized Smart Touch Panel, easy to operate.

Power button,Metallic texture, one-button start

Red light positioning Precise marking.Can be used to preview the marking position.

APPLICATION

Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
