Ts1610 Type Co2 Laser Cutting And Engraving Machine With Working...

Overview

Quick Details

Application:: LASER CUTTING

Applicable Material:: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal

Condition:: New

Laser Type:: CO2

Cutting Area:: 1600mm*1000mm

Cutting Speed:: 0-50000mm/min

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, AI, DXF,PLT,DST,DSB, EPS, DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE,JFIF, PNG,MNG,ICO,CUR,TIF, TIFF,TGA,PCX,WBMP,WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW

Cutting Thickness:: according to materials

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: RDWorks V8

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: Synrad

Laser Head Brand:: Transon

Servo Motor Brand:: JMC easy Servo

Guiderail Brand:: PMT

Control System Brand:: RuiDa

Weight (KG):: 370 KG

Key Selling Points:: High safty level

Optical Lens Brand:: wavelength

Warranty:: 1 Year

After-sales Service Provided:: Online support, Video technical support

After Warranty Service:: Video technical support, Online support, Field maintenance and repair service

Applicable Industries:: Garment Shops, Building Material Shops, Manufacturing Plant, Printing Shops, Construction works , Advertising Company, shoe factory, bag factory

Local Service Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Hot Product 2019

Warranty of core components:: 1 Year

Core Components:: Motor, PLC

Mahince Size:: 2060*1410*1140mm

Type:: Water Cooling CO2 Laser Engraving Machines

Cooling mode:: Water Cooling

Function:: Cutting Engraving Non-metal Materials

Product name:: TS1610 type CO2 laser cutting and engraving machine

Keyword:: TS1610 type CO2 laser cutting and engraving machine

Features:: can install 2 or more laser head, standard with one laser head.

Laser power:: 40w/60w/80w/100w/150w/180w Optional

Laser type:: Standard CO2 sealed laser tube, water-cooled

Min. shaping character:: English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 217X151X130 cm

Single gross weight:: 450.000 kg

Package Type:: standard plywood package box for TS1610 type CO2 laser cutting and engraving machine with working area 1600*1000mm

Picture Example:

Lead Time :

Quantity(Sets)	1 - 1	>1
Est. Time(days)	15	To be negotiated

Product Description

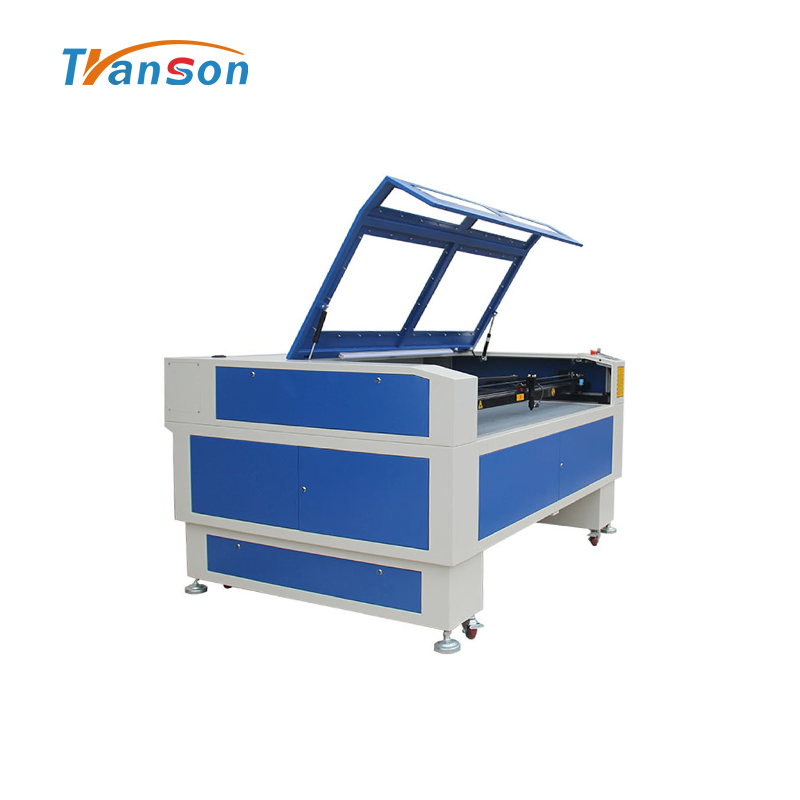

TS1610 type CO2 laser cutting and engraving machine with working area 1600*1000mm

PRODUCT DESCRIPTION

This equipment can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries.

The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting It's with high compatibility powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, Al and many other graphs, support win 7, win 8 and win 10 computer operating system

Parameters:

Model	TS6090 / TS1290 / TS1390 / TS1490/ TS1610
Working area	600600mm / 9001200mm / 9001300mm/9001400mm/ *10001600mm** (L*W)
Laser power	40W/60W/80W/100W/120W/150W/180W
Laser type	CO2 sealed laser tube, water-cooled
Worktable	Standard with Metal slat worktable
Engraving speed	0-70000mm/min
Cutting speed	0-40000mm/min
Highest scanning precision	2500DPI
Power supply	220V/50Hz , 110V/60Hz
Min. shaping character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported	AI, DXF,PLT,DST,DSB, EPS,DAT,NC,BMP,RDB, GIF, JPG, JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP, WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW,
Software supported	CorelDraw, PhotoShop, AutoCAD,TAJIMA
Control system	High speed DSP control system brand Ruida or Leetro
Machine work software	RDWorks V8 (Ruida)
Laser output control	1-100% by setting in the software
Interface	USB
Driving system	Stepper motor or China Servo motor
Can choose	Multi-function protect power supply
Color separation	Yes
Optional part	Up and down worktable/ Honeycomb worktable/ Red dot pointer/ Auto focus/ Rotary attachment with rollor/ Rotary attachment with clip
Spare parts suggested	Extra laser tube/Extra 1 lens and 3 mirrors

Product details

Application

Packaging & Shipping

Our laser machines package include 3 layers:

1, Outside package: polywood case with metal belt

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof plastick bag to cover all the machine.

TS1610 type CO2 laser cutting and engraving machine with working area 1600*1000mm
