TS1290 Rofin 300W Co2 Laser Cutting Machine

 Parameters:

TS1290 Co2 Laser Cutting Machine Details:

1. Transparent window

The machine cover installed transparent tempered glass, total cover is support by gas spring.

Laser beam will stop when opening the cover, this function can protect operator from being hurt by laser beam.(this function can be easy cancelled if don’t need)

2. Square rail guide:

Square shape linear guider, small resistance, smooth sliding, low noise, have good balance performance

3. Metal slat worktable

can meet the flatness requirement of metal and had non-metalic materials, it can be replaced to honeycomb worktable.

Ladder-shape drawer under the metal slat worktable help easy collect and getting working object and waste.

4, Laser head:

With high quality metal reflector and focus lens as well as red dot pointer,it makes the working speed faster,precision higher.

5, Three mirrors and one focus lens

High quality reflection mirrors and focus lens, with high efficiency and stable performance.

6, Co2 laser tube:

China top brand RECI laser tube, 10,000 hours life time, 300 days warranty, optional power: 60W/ 80W/ 100W/ 120W/150W. We will test every one of laser machine together with the laser tube, we can 100% make sure all our customer can get good machine from us.

7,  Core control system:

DSP Control system, China top brand Ruida laser control card, reasonable wiring can reduce electromagnetic, interference and enhance the stability of machine operation

8, Control Panel and Emergency stop button and Key switch

LCD digital control panel with USB interface and DataLine Interface, support offline work.

LED light above the worktable can be turn on and turn off manually.

9, Water Chiller

CW6300 water chiller with water temperature display and alarm system can avoid over burning, keep the water circulation successfully. In the waterless state, the equipment will stop working, which can effectively protect the machine.

10, Exhaust Fan

Heat dissipation is fast, can extend the life of machine.

11, Air pump

Air pump can keep forcus lens clean and cool the laser head

12, Full-direction Wheel and position leg

It can help move and fix the laser machine easily.

13,Free tool box:

Tools for maintaining the machine are included

Optional Parts:

1, Up and down worktable,

making worktable move up and down by motor automatically, suit for various thickness material processing,

2, Red dot pointer and Auto focus, Making laser beam visible, so adjustment of laser beam would be much easier, It can set the optimal focus according to thickness of object through sensor automatically, instead of focus board to set the focus manually. Should equipped with motorized up and down worktble)

3, Honeycomb worktable,

for engraving and soft materials cutting, like paper, leather, etc

4, Rotary device with roller or clips

With roller: can do 360 degree engrave for heavy and fragile round materials like glass cup, bottles, etc,

With clips: can do 360 degree engrave for round or cylindrical mateials like wood,etc

it should equiped together with up and down worktable.

 1. Applicable Industries:

 Applied to advertisement, arts and crafts, leather, toys, bamboo and wood, garments, model , building decoration, computerized embroidery and clipping, packaging and printing, paper products industry, etc.

2. Applicable Materials:

Acrylic, wood, mdf, bamboo ware, leather, fabric, double color sheet, glass, paper, rubber, marble, granite, cloth, ceramic tile, shell and other Non-metal materials.

Samples for reference:

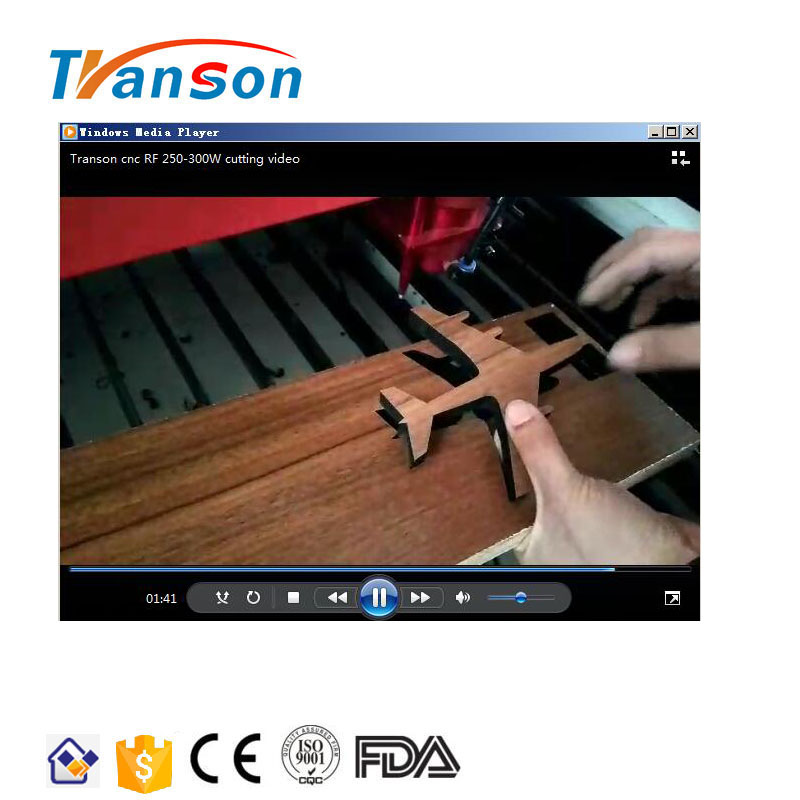

TS1290 machine with Rofin Tube Cut 16mm thickness Die Board

Our laser machines have 3 layer package:

1, Outside package: We use polywood case with metal belt around.

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof wrap to cover all the machine from moisture.

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer with ability of research and development, design and production. Our products include fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter.

Transon CNC has won an excellent reputation in the golbal market. We are cooperating with many well-known companies all over 100 counties, including Turkey, United Kingdom, United States, Korea, russia, Peru, Chile, etc. We alos maintain a friendly long-term cooperation with domestic laser research institues all over the years.

Certificates: CE, FDA, ISO, etc.
