TS lamp shade/double-color sheet laser cutting machine 6090

这里可以自定义设置
TS lamp shade/double-color sheet laser cutting machine 6090
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Engraving
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
CO2, CO2
Engraving Speed:
70cm/s
Condition:
New
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Place of Origin:
Shandong, China
Brand Name:
Transon
Model Number:
TS6090
Dimension(L*W*H):
175cm*131cm*107cm
Certification:
CCC, ce, ISO, FDA
Optional:
up&down table, honeycomb worktable,rotary device
Packing size:
according to the model
Warranty:
1 year
Power supply:
220V/50HZ , 110V/60HZ
Color:
Optional
Controlling software:
DSP control system
After-sales Service Provided:
Overseas service center available
Engraving Area:
600*900mm
Supply Ability
Supply Ability:
300 Set/Sets per Month

TS lamp shade/double-color sheet laser cutting machine 6090

Equipment Performances:
1. The leading control system of our laser engraving machines can work without a computer and can also connect to a U disk or any other USB interfaces. The professional calculation of laser beam moving accuracy offers a higher working efficiency and smoother engraving and cutting.
2. Imported high precision liner bearing is equipped in our laser engraving machine, which facilitates our machine's smooth operation.
3. Economy laser engraver is designed with front and back running-through structure, which enables our laser equipment suitable to process super-long materials.
4. This laser machine is equipped with software which is specially designed and written for laser engraving and cutting systems. The software is characterized by high compatibility and as a result, is suitable for any computer operating system.
5. Honeycomb and aluminous-strip work tables are both available. Therefore, this machine is suitable for timber, acrylic cutting and engraving.
6. Hand or electric up-down work table are provided for your option, which enable our laser engravers to satisfy different cutting depth requirements of different materials.
7. There is a special system offered for engraving on column or cone surfaces.
8. Our stable machine frame ensures a precise cutting.

Technical parameters :


No.

Description

Parameter

1

Model

TS6090-80C

2

Working area

600*900MM

3

Laser power

80w( we have 25,40,60,80,100,130,150,200w)

4

Power supply

220V,2 phase,50HZ/60HZ

5

Laser type

CO2 Sealed laser tube , 10.6μm

6

Laser tube

Beijing Reci /EFR

7

Guide rail

Hiwin rail from Taiwan

8

Transmission

Belt from shanghai Fulong

9

Drive system

High-precision stepper motor,Leadshine

10

Mirror and lense

From Singapore

11

Controlling system

Leetro

12

Cooling system

Water cooling

13

Auxiliary equipments

Air pump/air compressor,water pump/water chiller,exhaust fan and air exhaust pipe

14

Optional parts

Red point,auto focus,electric up-down table,rotary,offline

15

Compatible software

CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.

16

Graphic format supported

DST, HPGL(PLT),JPEG,GIF, BMP ,DXF, DWG, AI

17

Gross Power

1.6KW

18

Working environment

Temperature:0-45°C,Humidity 5-95%(No condensate water)

19

Engraving speed

0-60000mm/min

20

Cutting speed

0-40000mm/min

21

Highest scanning precision

4000DPI

22

Position accuracy

≤0.02mm

23

Reposition accuracy

≤0.01mm

24

Laser output control

0-100% set by software

25

Min. engraving size

Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm



machine parts:

lift platform                                   control panel                          accessary



Main Application:

JD economy laser engraving machine is suitable for engraving various graphics and letters on double color boards, wood, bamboo, organic glass, clothes, leather, paper and rubber, etc.



Comprehensive application:

advertisement, arts and crafts, toys, textile garment, leather,car, mechanism, electron, building upholster, timekeeper and jewelery industry and so on.

Guarantee & after sale service:
1) Guarantee for one year,
2) Free training to make sure you master the operating of cnc router (on internet or by telephone).
3) 24-hour technical supporton Internet or by Telephone, free instructions and problem solving.
4) Video CD for machine using and maintaining.

If you have any technical issues, please kindly contact us to confirm. Allen is always to be at your Service.

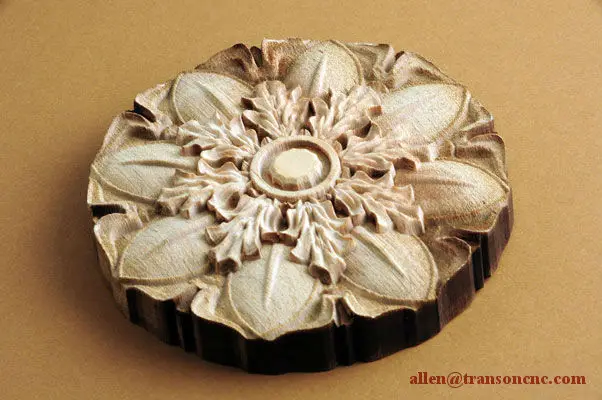

sample:

Owing to its application prospects, the product has met with a warm reception and quick sale. It supports formats including DXF, DWG, EPS, AI, BMP, JPG, TIF, and GIF. Owing to its wade range of application, the product has won many praises from customers. It supports formats including DXF, DWG, EPS, AI, BMP, JPG, TIF, and GIF.
