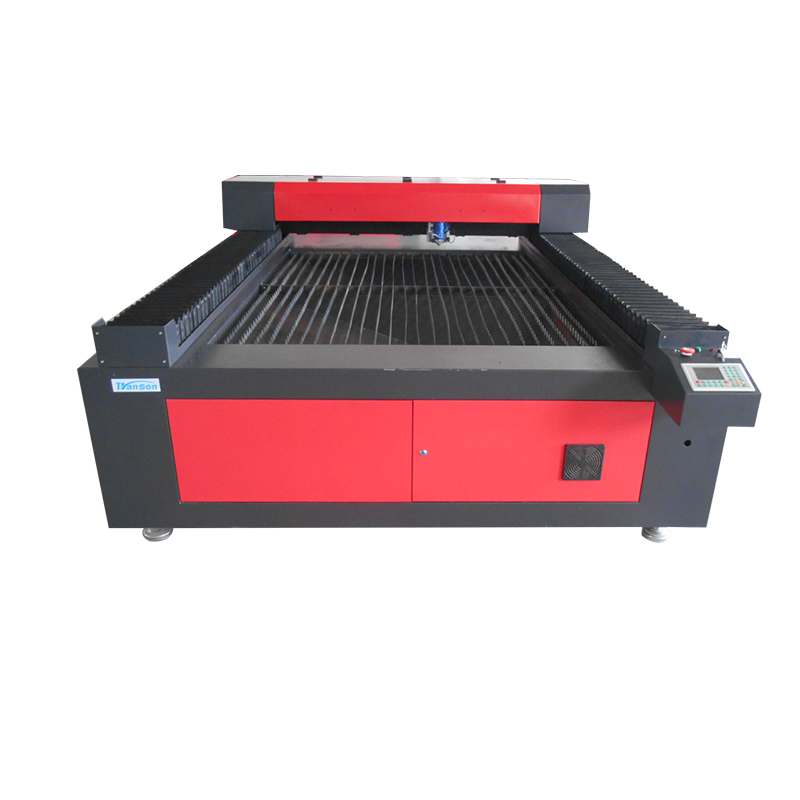

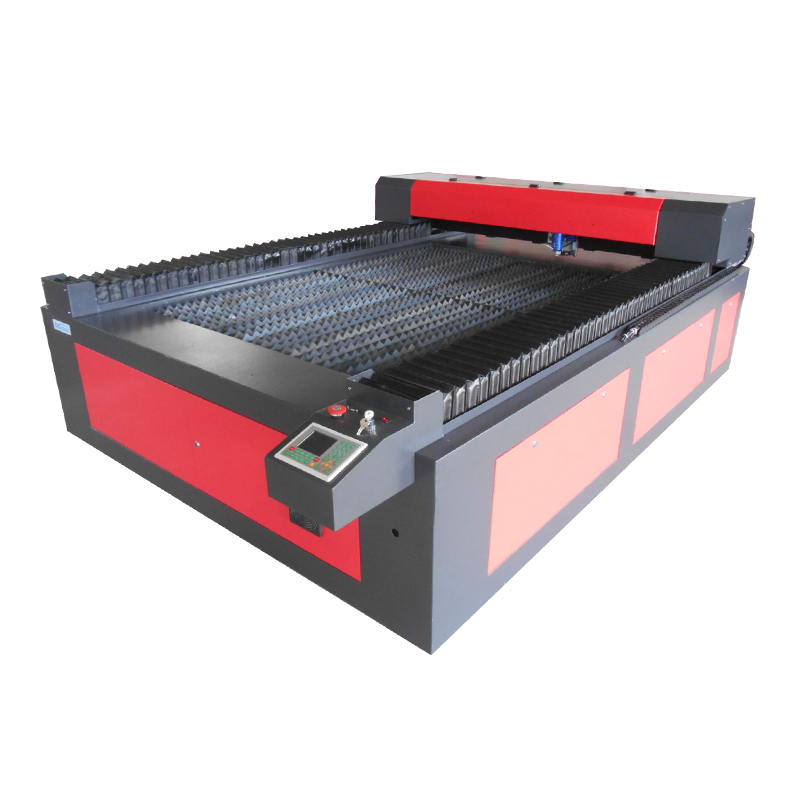

Ts Cnc Router And Laser Cutting Machine 1500*3000mm

Overview

Quick Details

Application:: LASER CUTTING

Model Number:: TS1530

Applicable Material:: Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crytal

Condition:: New

Laser Type:: CO2

Cutting Speed:: 0-40000mm/min

Graphic Format Supported:: AI, BMP, Dst, DXF, PLT

Cutting Thickness:: metal 3mm

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: DSP

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, FDA

Power Supply:: 220V/50HZ , 110V/60HZ

Laser Power:: 80W/100W/150W

Driving System:: Three-phase Stepper Motor

Cutting Area:: 1500*3000mm

Supply Ability

Supply Ability:: 50 Set/Sets per Month

TS Cnc router and laser cutting machine 1500*3000mm

Characteristics:

1.Advanced HIWIN linear rail,high motion speed.

2.Gantry moving and rolling ball screw transmitting,ensure stability.

3.Large format laser cutting machine bed suitable for quantity production.

4.High configure 500w laser tube with perfect cutting effect and strong power.

5.High cutting speed with Panasonic servo motor from Japan.

6.Cutting surface smooth and no burr.

7.Laser can cut steel plates,stainless steel,aluminum alloy plate,hard alloy,brass etc.

Technical parameters:

Model	TS1530
Working area	1500x3000mm
Table size	1700x3500mm
Volume	2170x3500x1200mm
Function	Cut
Travelling speed	7000mm/min
Cutting speed	<2000mm/min
Re solution ratio	4000dpi
Laser power	500w
Cutting thickness	Carbon steel 6mm,aluminum and copper 2mm
Gross power	8-10kw
Net weight	2800kg

Applicable Industries

Garments sampling,large format tailoring,leather industry,shoemaking,decoration,furniture,advertisement,paking and printing,molding and artcrafts industries,etc.

Applicable Materials

Fabrics,leather,paper,bamboo ware,acryl,glass,thin film and canvas,etc.

Guarantee & after sale service:
1) Guarantee for one year,
2) Free training to make sure you master the operating of cnc router (on internet or by telephone).
3) 24-hour technical supporton Internet or by Telephone, free instructions and problem solving.
4) Video CD for machine using and maintaining.
If your material is not on the above list, please kindly contact us to confirm. Allen is always to be at your Service.

sample

Jinan Transon CNC Equipment Co., Ltd. focuses on company credit. It provides the option to cut thicker materials. In addition to increasing the scale of laser marking machine production in China, the company has started direct investment in overseas market. It provides the option to cut thicker materials. . It provides the option to cut thicker materials.
