Laser Welding and Cleaning

TSF 5 in 1 Laser Machine With Welding, Battery Welding, Cleaning ,Cutting Functions

Fiber Model: TSF

Power: 1500W 2000W 3000W

Cooling way:Water cooling

Operation way:Handhold model

Laser Wavelength:1064nm

这里可以自定义设置

5 in 1 Laser Machine With

Welding, Battery Welding,

Cleaning ,Cutting Functions

1. Metal Welding

2. Welding Seam Cleaning

3. Metal Cutting

4. Metal rust Cleaning

5. Lithium battery welding

Machine video

5 in 1 laser machine with welding, battery welding, ,cleaning ,cutting functions

5 in 1 laser machine with welding, battery welding, ,cleaning ,cutting functions

Products Name	Fiber Laser Welding Cutting Cleaning Machine
Model	TSF
Laser Power	1500W/2000W	3000w
Cooling way	Water cooling
Laser Wavelength	1064nm
Laser Power	0-100%
Working temprature	0- 40 ℃
Voltage	220V±10%, 50-60hz, 1P	380V,50-60hz, 3phase
LCD control panel size	7 inch
Operation way	Handhold model
Optic cable length (bending radius≥250mm)	8m, can be customized
Working Humidity Conditions:	≤ 80%RH
1500w/2000w Packing size(single wire feeder)	1350620920mm/Gross weight is about 160kgs
1500w/2000w Packing size(dual-wire feeder)	1450620920mm/Gross weight is about 170kgs
3000w Packing size(single wire feeder)	17507301300mm/About 1.66cbm/Gross weight is about 210kgs
3000w Packing size(dual-wire feeder)	18507301300mm/About 1.76cbm/Gross weight is about 220kgs

RODUCT DETAILS

Handheld Laser Head

High precision high speed scan head, combined with the professional control software, can do laser welding, laser cutting directly. After change nozzle and lens, it can also do fast rust painting removing.

Handheld Laser Head

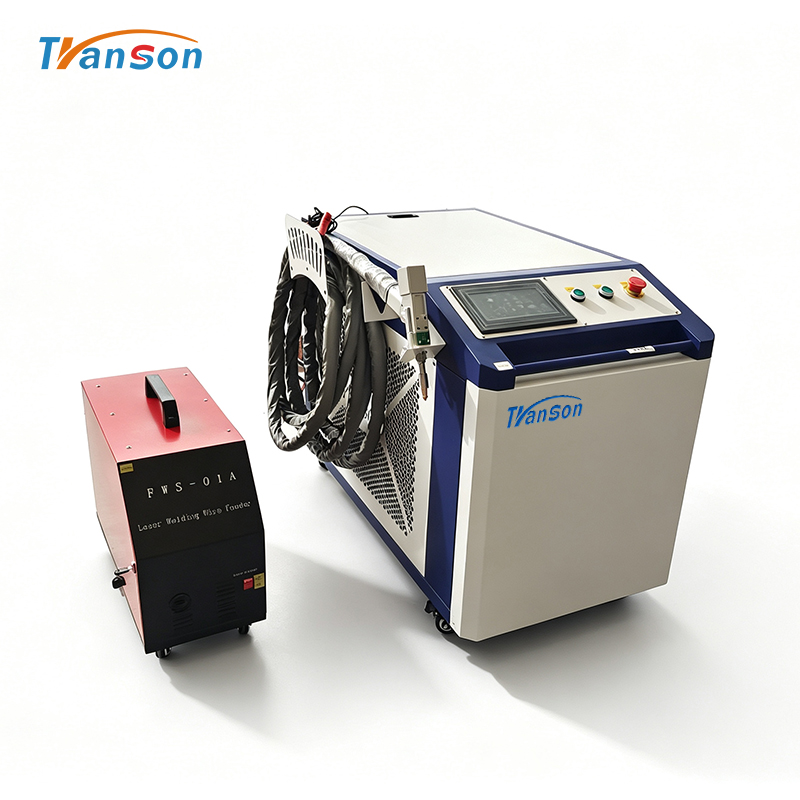

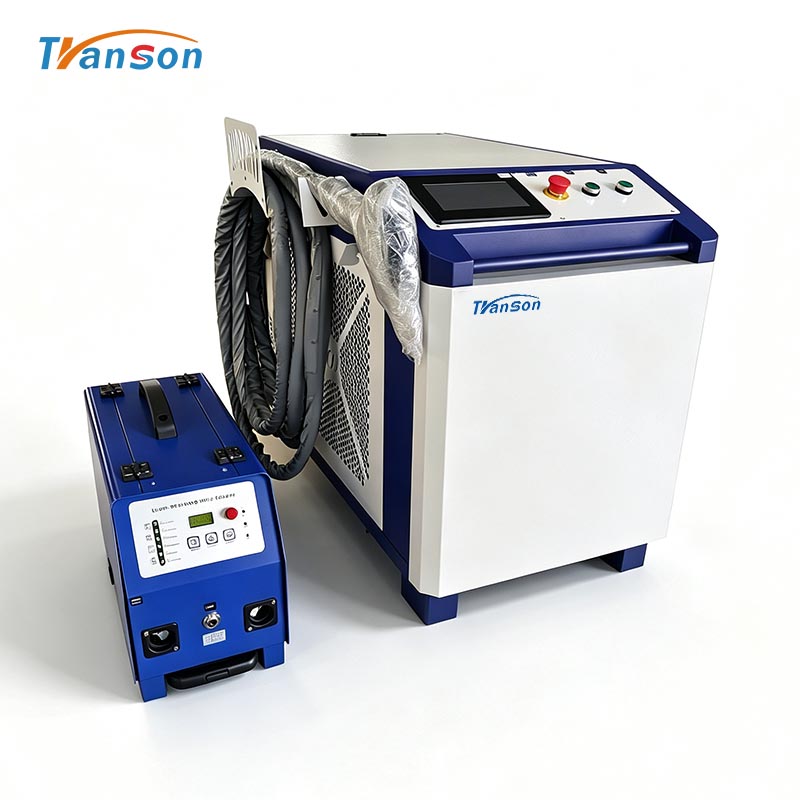

This laser welder cutter cleaner standard with wire feeder, with signal line connect to laser machine, user can easy feeding or withdrawal welding wire on control panel.

Wire Feeder

Raycus Fiber Laser Source

Laser welder cutter cleaner standard with Raycus continuous laser beam laser source, with more than 100,000 hours life span, 2-3 years warranty, durable enough. Optional : Raycus 1500W 2000W 3000W

Raycus Fiber Laser Source

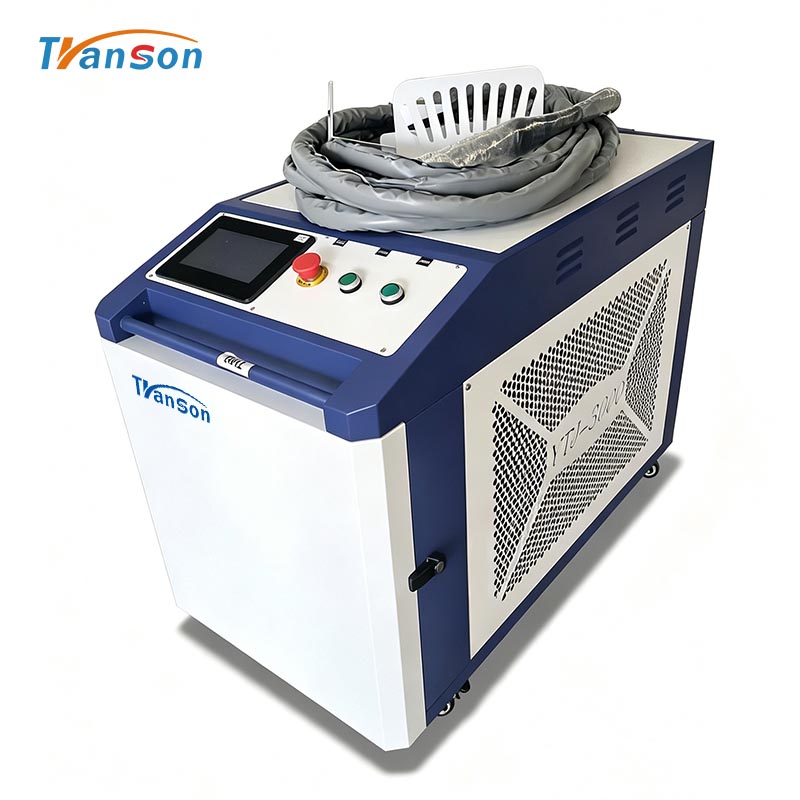

This 4 in One laser welder cleaner cutter with 7 inch touch screen control panel. Easy operate.

Control Panel

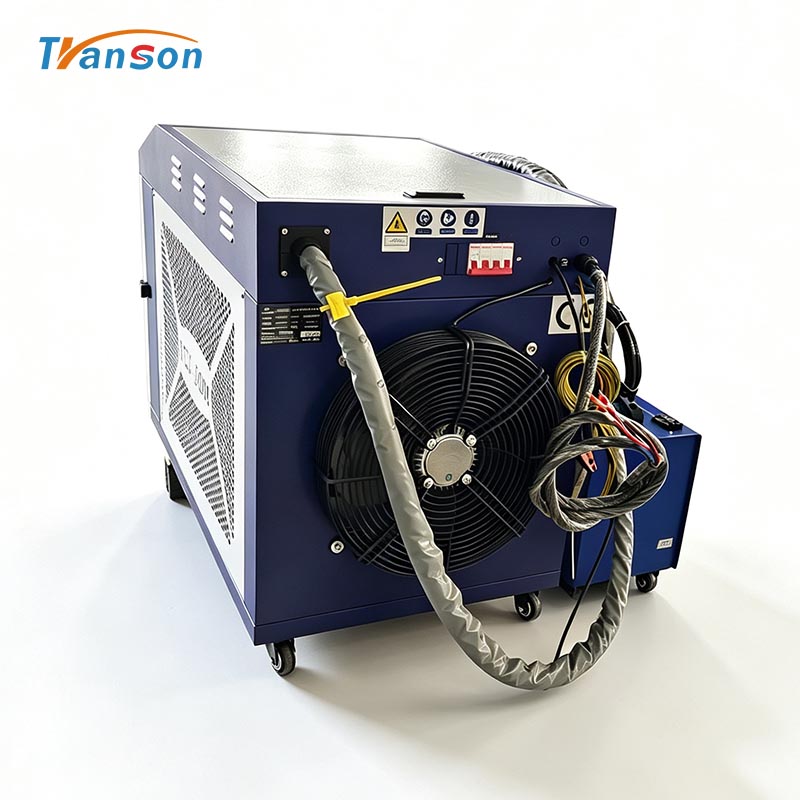

Industrial grade water chiller, it has good protection for theinternal components of laser welder,can greatly prolong the service life of the laser welding machine.

Water Chiller

Battery welding

With this function, user can easy repair lithium battery for different electric vehicle.

Battery welding

APPLICATION

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
