CO2 Laser Cutter Engraver

Home  > CO2 Laser Cutter Engraver  >

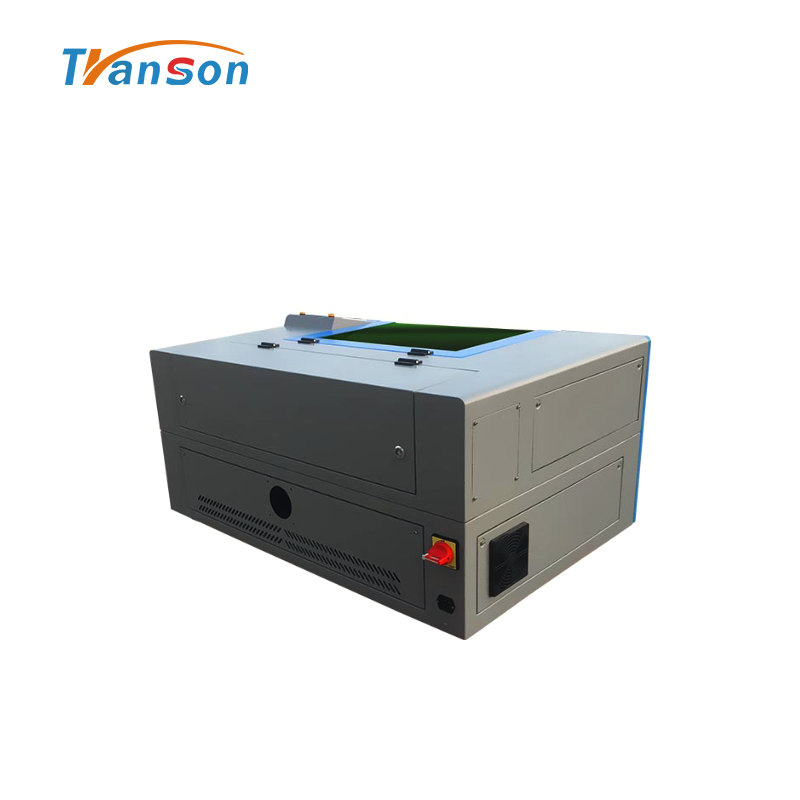

Transon New Design 3060 Portable Laser EngraverDiy for Home Business

这里可以自定义设置
Transon New Design 3060 Portable Laser EngraverDiy for Home Business
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Engraving
Applicable Material:
Acrylic, Glass, Leather, MDF, Paper, Plastic, Rubber, Stone, Wood
Laser Type:
CO2
Engraving Speed:
0-70000mm/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst
Condition:
New
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Place of Origin:
Shandong, China
Brand Name:
Transon
Dimension(L*W*H):
1130mm*780mm*600mm
Certification:
ce, ISO, FDA
Laser Source Brand:
TONGLI
Laser Head Brand:
Transon
Servo Motor Brand:
stepper
Guiderail Brand:
PMT
Control System Brand:
Trocen
Optical Lens Brand:
Wavelength
Weight (KG):
165 KG
Key Selling Points:
High Safety Level
Warranty:
1 Year
After-sales Service Provided:
Online support
Applicable Industries:
Garment Shops, Manufacturing Plant, Retail, Printing Shops, Advertising Company, model industry,decoreation,arts and crafts
After Warranty Service:
Video technical support, Online support
Local Service Location:
United Kingdom, Philippines, Peru, Pakistan, Russia, Romania
Showroom Location:
United Kingdom, Philippines, Peru, Russia, Romania
Product name:
Laser Engraving Equipment
Laser power:
40W
Laser tube:
CO2 Glass Tube
Working area:
600*300mm
Working table:
Honeycomb
Software support:
CoreIDraw Photoshop AutoCAD TAJIMA
Keywords:
40 Laser Engraving Machine
Control system:
Trocen Control
Software:
LaserCAD V8
Material:
Non-metel
Engraving Area:
600*300mm/23.62in*11.81in
Supply Ability
Supply Ability:
300 Set/Sets per Month

Transon New Design 3060 Portable Laser Engraver  Diy for Home Business



Product Description

This equipment can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free,fast processing speed,high precision,less waste and higher efficiency.It is the best optional for upgrading traditional equipments in various industries.

Parameters:

Model

TN3060

Working area

600mm*300mm/23.62in*11.81in

Laser power

40W

Laser type

CO2 sealed laser tube, water-cooled

Worktable

Electric up down honeycomb worktable, up down distance 100mm

Engraving speed

0-70000mm/min

Cutting speed

0-40000mm/min

Highest scanning precision

2500DPI

Power supply

220V/50Hz or 110V/60Hz

Min. shaping character

English 1.0 x 1.0mm

Graphic.format.supported

NC, AI, SVG, PDF, DXF, PLT,DST,DSB,UD5,BMP,GIF,JPG,JPEG,PNG.

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA

Control system

High speed Trocen DSP control system

Control Panel support language

Portuguese,Turkish,Russian,French, Korean,Arabic, Spanish, Vietnamese, Chinese

Machine work software

LaserCAD V8

Laser output control

1-100% by setting in the software

Interface

USB 2.0

Driving system

JMC easy servo motor and driver

Color separation

Yes

Machine size

1130mm*780mm*600mm

Plywood packing size

1210mm*860mm*720mm

Plywood package G.W

165kgs

Applicable industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoreation, arts and crafts, electronics and electric appliances, etc.



Applicable Materials:
Double color sheet, acrylic, glass, wood, mdf, bamboo ware, coconut shells, paper, leather, cloth, marble, ceramic tile, shells and other nonmetal materials.

Machine Parts



1.water / tempreture indicator





2.Metal slat worktable





3.Laser head





4.Control panel





5. Security door key





6.Control system





7.Emergency stop button & Key switch.





Special features:

1, 600x300mm working area with 40W laser tube

2, Water tank, water pump, air assist pump all inside machine

3, Water level display and water temperature display

3, Motorized up down honeycomb worktable, up down distance 100mm.

4, With auto focus function,no need use ruler find focus length

5, Machine with high speed outer sliding rail

6, Machine with JMC easy servo motor and driver

7, Machine with TROCEN brand controller

8, Large green acrylic window, it can prevent laser radiation to operator.



High Safety Level:

1, Emergency stop button, key switch, LED light all DC24V

2, Machine will stop work if detect water tank water temperature higher than standard.

3, machine up cover with mechanical lock, only when cover closed can machine start work, cover open machine stop work.

4, Machine easy Servo motor with damage protection function, whenever they detect damage from motor, machine will stop work, and no laser come out from laser tube, this can greatly improve security when machine work.



Packing

Our laser machines package include 3 layers:

1.Outside package:Polywood case with metal belt

2.Middle package:We use foam to cover the machine

3.Inner package:We use waterproof plastick bag to cover all the machine.





Company Information

     Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010. Our main products include fiber laser marking machine,CO2 laser marking machine,CO2 laser engraving cutting machine,CNC router and

CNC plasma cutter. They are widely used in industry of woodworking, advertising, decoration,

arts and crafts, electronics industries,etc.





FAQ

Q1: Are you a factory or trading company?

A: We are a manufacturer found in 2010.

Q2: Where are you located? How can we visit you?

A: We locates in Jinan city of Shandong, in the north of China.

Q3: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:

    1) What work you will do?

    2) What work table size you will need?

Q4: What's your payment terms? Delivery time and MOQ?

A: We accept T/T(bank transfer), L/C, Paypal,  West union, Paypal, etc.

     Usually we need 30% as deposit, balance paid before shipment.

     Delivery Time: 7-10 days after payment

     MOQ: 1set

Q5: If I bought a machine, how could you make it safe while shipping.

A: We have a professional package suitable for oversea transportation. Machine will be fixed well

     in the case.

Q6: What's your quality control system?

A: All machines with CE and FDA certificate. Our QC department will do full test of each machine      after finish, and send you test video and photos for confirm.

Q7: What's your after-sales service?

A:  1) Warranty 1 year for whole machine. Fiber laser source 3 years.

     2) Engineers available service machinery overseas

     3) 7X24hours online support and whole life maintenance.

Q8: If I don't know how to use the machine, can you teach me?

A:  1) There is a U disc send together with the machine           including machine user manual and software user manual .

     2) Online (Skype, Whatsapp, Wechat, Phone)

     3) Remote desktop software (Team viewer)

     4) Demo Video

Q9:This is my first time buy machine from China, how i buy machine from you?

A: Choose suitable machine through talking with our seller manager → Pay to us→ manufacture

    and testing machine(about 3-5 workdays) →shipping to you



If you have any other questions, please write email to us or call us, we will reply you ASAP.

This product will remove the physical need of man, and created a society that has never been known to man. It provides the option to cut thicker materials. This product will promote the standardization of work quality. It is able to make the work done very neat and accurate. It provides the option to cut thicker materials.
