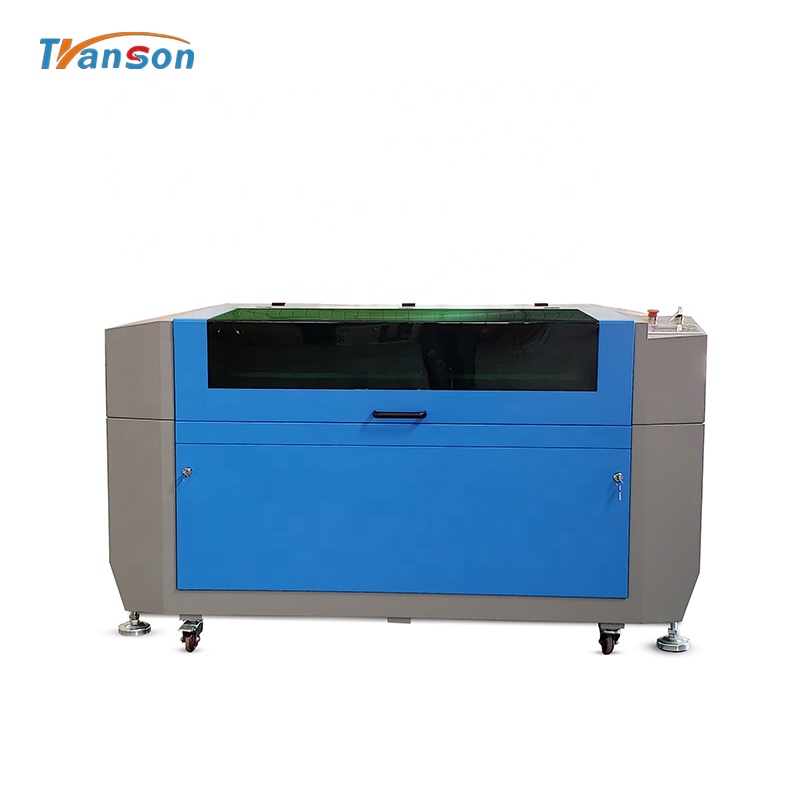

Transon New 1390 CO2 Laser Engraving Cutting Machine with High Safty Design for Wood Leather Paper Acrylic Mdf Nonmetal

这里可以自定义设置
Transon New 1390 CO2 Laser Engraving Cutting Machine with High Safty Design for Wood Leather Paper Acrylic Mdf Nonmetal
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Engraving
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Engraving Area:
1300*900mm
Laser Type:
CO2
Engraving Speed:
0-40000mm/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, JPEG
Condition:
New
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Place of Origin:
Shandong, China
Brand Name:
Transon
Dimension(L*W*H):
1800x1360x1030mm
Certification:
ce, ISO
Laser Source Brand:
Reci
Laser Head Brand:
Transon
Servo Motor Brand:
JMC
Guiderail Brand:
PMT
Control System Brand:
Ruida
Optical Lens Brand:
Wavelength
Weight (KG):
300 KG
Key Selling Points:
High Safety Level
Warranty:
1 Year
After-sales Service Provided:
Online support
Applicable Industries:
Hotels, Garment Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Advertising Company
After Warranty Service:
Video technical support, Online support
Local Service Location:
United Kingdom, Philippines, Peru, Pakistan, Russia, Romania
Showroom Location:
United Kingdom, Philippines, Peru, Pakistan, Russia, Romania
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Motor, Engine
Working Voltage:
AC 220V 50HZ / AC 110V 60HZ
Laser tube:
RECI
Control system:
Ruida High-speed Control System
Laser wavelength:
10.64um
Lifespan of Laser:
10000 hours
Laser output:
1~100% software setting
Highest Scanning Precision:
2500DPI
Cooling System:
S&A CW3000
Software:
RDworks
Support Graphic Format:
BMP PLT CDR DMG DXF
Supply Ability
Supply Ability:
300 Set/Sets per Month
Video Description

This equipment can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries.

The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting It's with high compatibility powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, Al and many other graphs, support win 7, win 8 and win 10 computer operating system

Parameter:

Model

TN1390

Working area

1300mm*900mm

Laser power

Reci W2 90-100W Glass tube

Laser type

CO2 sealed laser tube, water-cooled

Engraving speed

0-70000mm/min

Cutting speed

0-40000mm/min

Highest scanning precision

2500DPI

Power supply

220v/50Hz , 110v/60Hz

Min. shaping character

English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Graphic.format.supported

BMP, PLT, DST, DXF, AI

Software supported

CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut

Control system

Ruida RDC6442S controller

Driving system

JMC easy Servo motor and driver

Color separation

Yes

N.W/G.W

300kg/340kg

Machine size/ box size

1.8X1.36X1.03m/1.9x1.46x1.2m (W*L*H)

Consumable parts

(Recommended)

 1.Extra laser tube

2.Extra 1 lens and 3 mirror



Upgrade Special Features:

1. Machine body beautiful diamond design, front back feed material, feed material the max 50mm thickness. Front and back feed gate can be open without open the up cover.



2. Machine with large area visible window design, the green acrylic not only allow operator see inside the machine, can also prevent laser radiation to operator.

3. Machine cover with mechanical lock, only when the key insert to the lock can machine work. Its safer and has longer life span.

4.Machine X Y axis with JMC Easy Servo motor and driver, both motor connect with a single line. Whenever detect a motor damage, machine will stop work, and laser beam stop come out from laser tube this can greatly improve security when machine work.



5. Machine key switch, emergency stop, LED light, and LED light on/off button all DC24V voltage, low voltage make sure operators safety when operate the machine.

6. Machine standard with electric up down metal slat worktable, up down distance up to max 400mm. All ball screws and belt are all covered, Effectively protects bearings and belts from laser and work waste.The closed design facilitates discharge of exhaust gases through the exhaust system.
