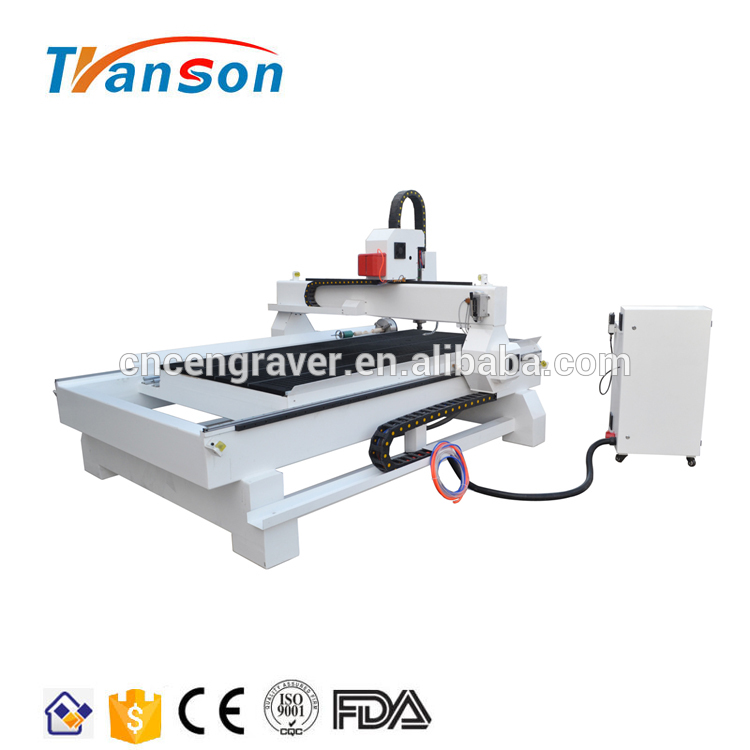

Transon Brand High Speed 3d Wood Carving Cnc Router With Dsp...

Overview

Quick Details

Condition:: New

CNC or Not:: CNC

Place of Origin:: Shandong, China

Brand Name:: Transon

Voltage:: 380V

Dimension(L*W*H):: 1300*2500*200mm

Certification:: CE ISO

Power (kW):: 4.5

Weight (KG):: 1300

Warranty:: 1 Year, 1 year

After-sales Service Provided:: Online support

Key Selling Points:: Long Service Life

Applicable Industries:: Building Material Shops, Manufacturing Plant, Retail, Printing Shops, Construction works , Advertising Company

X,Y Worksize:: 1300x2500mm

Z-axis worksize:: 200mm

Control system:: DSP

Spindle power:: 4.5kw

Cooling way:: Water Cooling

Spindle rotating speed:: 0-24000rpm

Max Speed:: 60m/min

Working speed:: 25m/min

Cutter diameter:: 3.175-12.7mm

Supply Ability

Supply Ability:: 30 Set/Sets per Month for wood CNC router

Transon Brand High Speed 3d wood carving cnc router with DSP Prices TSW1325B With 4.5 KW Spindle

hot-sale cnc wood engraving

1.convenient operation
2.high processing-speed
3.DSP control system
4.CE ,low price,stable quality

Description

This machine is mainly used in furniture making industry, furniture decoration industry,

wood craft industry, wood decoration industry, automotive tooling industry, solid wood furniture,

solid wood door, classical furniture, decoration material, door cabinets, computer tables,

plate furniture, office furniture, wooden sound box, wooden kitchen furniture and other processing.

Applicable materials:

Acrylic,PVC board, wooden products,bamboo,crystal,rubber,other plastc products,double plate,PCB board,paper,fur&leather,tiles,etc

Parameters:

Model	TSW1325B
X,Y Working area	1300x2500mm
Z-axis working area	200mm
Control system	DSP
Vertical Spindle	Power: 4.5kw
	Rotating speed: 0-18000rpm
	Cooling way: Fan cooling
Horizontal Spindle	Power: 3kw
	Rotating speed: 0-24000rpm
	Cooling way: Water Cooling
Spindle control model	Air cylinder
Transmit way	X,Y Gear Wheel, Z Ballscrew
voltage	380v/50hz-60Hz
Machine power	1500w
Command	G code
Max Speed	35m/min
Working speed	25m/min
Motor	Stepper
Bracket	Large Tube
Compatible Software	Type3,Artcam,Ucancam
Machine table	Vacuum table/6 areas and T- Slot Aluminum table
Vacuum pump	5.5kw
Oiling system	With
Dust collector	with
Adjustable bases	with
Cutter diameter	3.175-12.7mm

samples

If you are interested in it and would like to know specification,please contact me.Thank you!

The product is able to achieve optimal production or increase productivity by reasonably allocating the resources of workers and equipment. It always receives attention at exhibitions such as Indonesia industrial machinery and electronic products exhibition. The product is less likely to require repairs, which can help the company avoid delays and keep projects running on time. It always receives attention at exhibitions such as Indonesia industrial machinery and electronic products exhibition.
