Transon Best Sale High Safety 1390 Co2 Acrylic Laser Cutting...

Overview

Quick Details

Application:: LASER CUTTING

Applicable Material:: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Paper, Polyester Film,

Condition:: New

Laser Type:: CO2

Cutting Area:: 1300*900mm

Cutting Speed:: 0-40000mm/min

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT

Cutting Thickness:: Materials

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: RDWorks V8

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO

Laser Source Brand:: RECI

Laser Head Brand:: Transon

Servo Motor Brand:: JMC Hybrid Servo

Guiderail Brand:: PMT

Control System Brand:: RuiDa

Weight (KG):: 330 KG

Key Selling Points:: High Safety Level

Optical Lens Brand:: Wavelength

Warranty:: 1 Year, 1 Year

After-sales Service Provided:: Online support, Video technical support

After Warranty Service:: Video technical support, Online support, Field maintenance and repair service

Applicable Industries:: Manufacturing Plant, Retail, Printing Shops, Construction works , Advertising Company

Local Service Location:: Turkey, United Kingdom, Pakistan, Russia, Romania

Showroom Location:: United Kingdom, Peru, Pakistan, Russia, Romania

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: New Product 2020

Warranty of core components:: 1.5 years

Core Components:: Motor, PLC

Acrylic laser cutting machine power:: Reci W2 90-100W Glass Tube

Co2 Laser Cutting Machine Usage:: Engrave and Cut Nonmetal Material

Min. Shaping Character:: English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Software Supported:: CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut

Cooling System:: CW3000 Water Chiller

Electric up down worktable:: include

Machine size:: 1.8x1.36x1.03m

Package:: 1.9*1.46*1.20m

Net Weight Gross Weight:: 300KGS/340KGS

Supply Ability

Supply Ability:: 300 Set/Sets per Month

Product Description

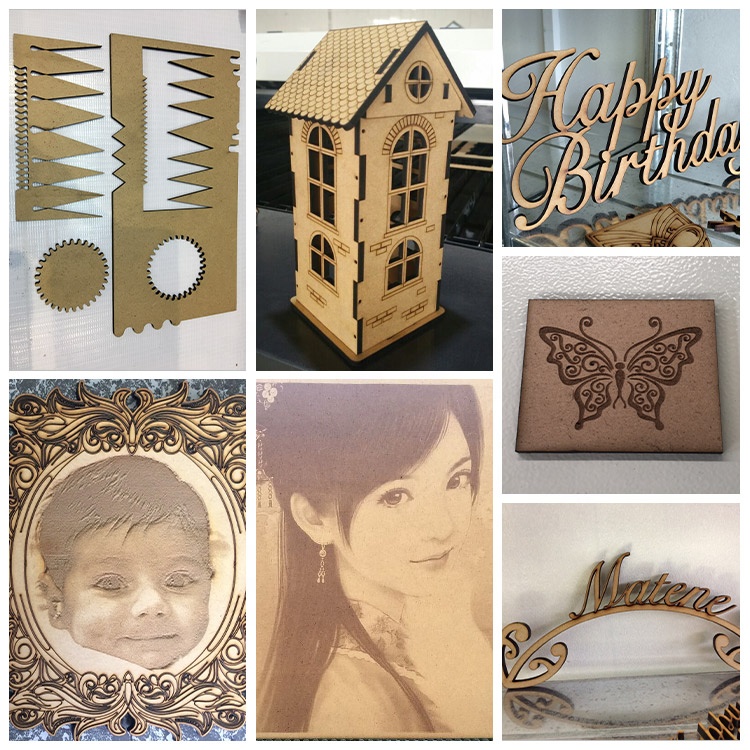

This is Transon factory 2020 new designed high safety CO2 laser engraving cutting machine. It can be applied to almost all nonmetal materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipment in various industries.

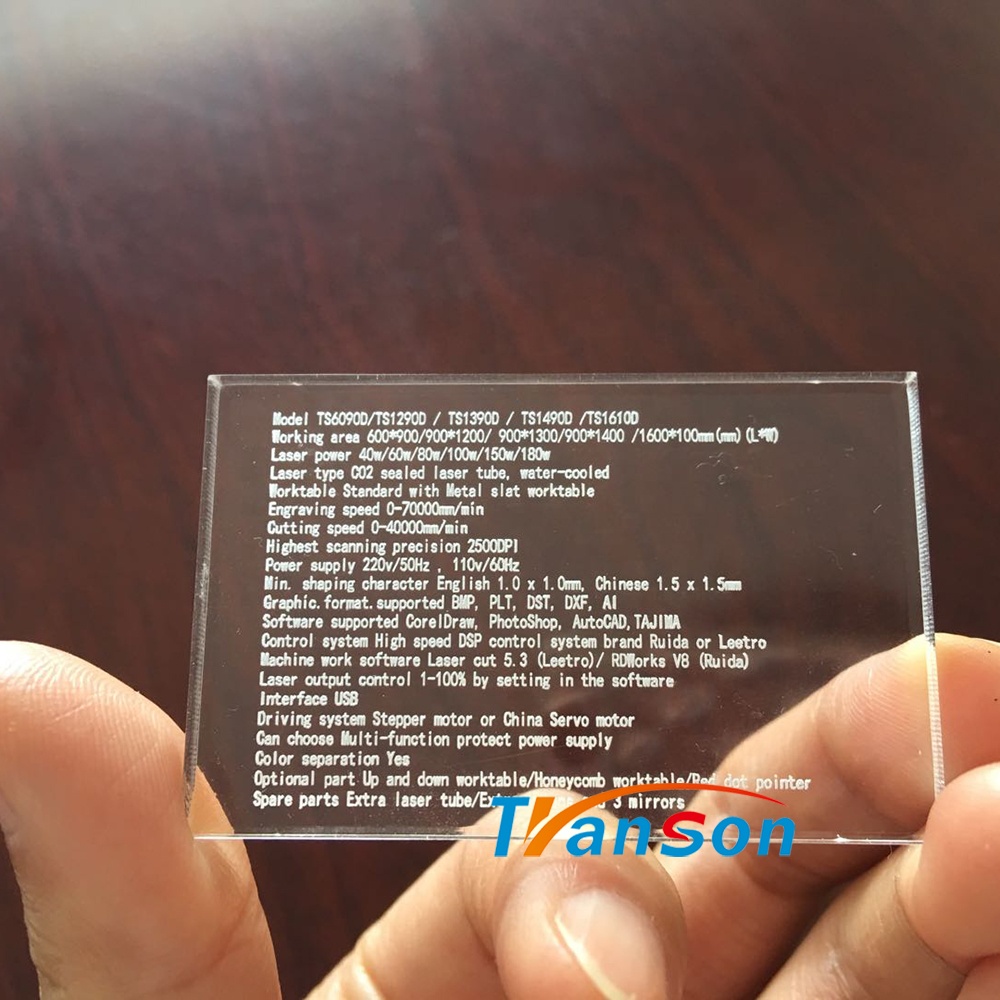

Specification

Model			TN1390
Working area			1300mm*900mm
Laser power			Reci W2 90-100W Glass tube, >15,000 hours life span, 540 days warranty
Laser type			CO2 sealed laser tube, water-cooled
Engraving speed			0-70000mm/min
Cutting speed			0-40000mm/min
Highest scanning precision			2500DPI
Power supply			220v/50Hz , 110v/60Hz
Min. shaping character			English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported			BMP, PLT, DST, DXF, AI, etc.
Software supported			CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut
Control system			Ruida newest RDC6445G controller
Driving system			JMC Hybrid Servo motor and driver
Color separation			Yes
N.W/G.W			300kg/340kg
Machine size/ box size			1.8X1.36X1.03m/1.9x1.46x1.2m (WLH)
Consumable parts (Recommended)			1.Extra laser tube2.Extra 1 focus lens and 3 reflect mirror

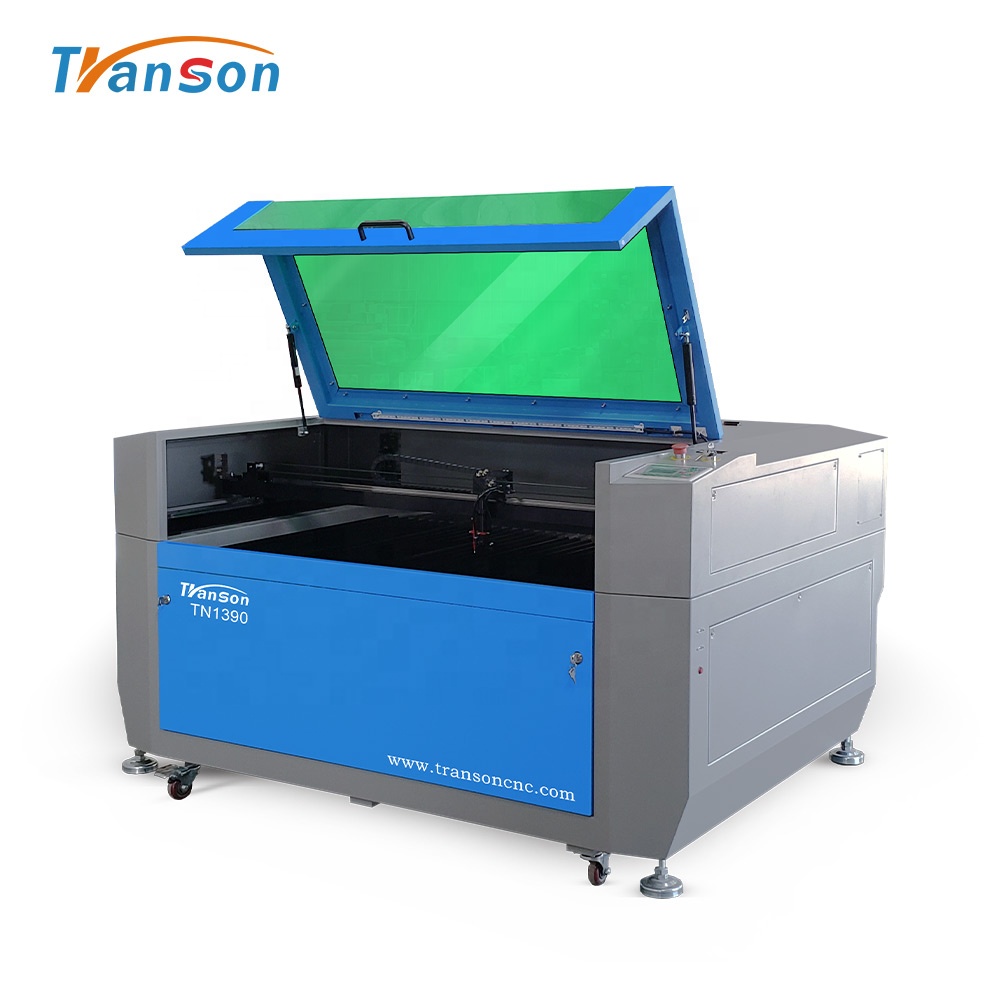

High Safety Design

1. Big Green Acrylic Window, Prevent Radiation to Operator

Machine with large area visible window design, the green acrylic not only allow operator see inside the machine, can also prevent some laser radiation to operator.

2. Safety Lock, only Window Closed Can Machine Work

Machine cover with mechanical lock, only when the key insert to the lock can machine work. It’s safer and has longer life span.

3. All Touched Buttons Are DC 24V, Not 110V Nor 220V.

Machine key switch, emergency stop, LED light, and LED light on/off button all DC24V voltage, low voltage make sure operator’s safety when operate the machine.While normal laser machine on the markets are 110V or 220V.

4. Easy Servo Motor

Machine X Y axis with JMC Easy Servo motor and driver, both motor connect with a single line. Whenever detect a motor damage, machine will stop work, and laser beam stop come out from laser tube this can greatly improve security when machine work.

5. Safe And Clean Electric Up Down Worktable

Machine standard with electric up down metal slat worktable, up down distance up to max 400mm. All ball screws and belt are all covered, Effectively protects bearings and belts from laser and work waste.The closed design facilitates discharge of exhaust gases through the exhaust system.

6. Feed Longer Material Without Open the Cover

Machine front back feed material, front and back feed gate can be open without open the up cover. Feed through material the max thickness 50mm.

Product details

Ruida Newest RDC6445G Controller

Ruida Newest RDC6445G Control System
1, 5 inch big LCD display.2, With Z+/Z- buttons, one button control up down of worktable.
3, With U+/U- button, one button feed material in rolls like fabric, leather, paper.
4, With "Focus" button, one button control auto focus the worktable suit for different thick material.
5, With 0-9 numbers, easy set paramters for files.

Control Panel Support 11 Languages

RDC6445G control panel support different languages, include: English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese

RDWorksV8 Software

Standard RDWorksV8 software: It support 15 different languages, include: Chinese, English, Japanese, French, German,Portuguese,
Polish,Spanish, Russian, Korean, Vietnamese, Indonesian, Italian,Turkrish,Arabic.
It can compatible with many other software, like Coreldraw, Photoshop, AutoCAD, TAJIMA,etc.
You can use these software to make designs, then import to Rdworks to cut or engrave.

Standard Reci W2 90W-100W Laser Tube

China top brand Reci brand W2 90-100W CO2 laser tube, with estimate 15,000 hours life span and 540 days warranty.

Optional power:
Reci W1 75-90W/ W4 100-130W
W6 130-150W/ W8 150-180W

Optional glass tube: EFR, Yongli, SPT, JKlaser

Optional RF tube: Synrad, Coherent, DAVI

S&A Brand CW3000 Water Chiller

Advanced CW3000 water chiller for cycle water, with water temperature display and water circle unsuccessful alarm function. With
signal line connect to machine water flow signal port, if machine detect water flow
unsuccessful, the laser machine will stop work to protect laser tube.

Optional: CW5200, CW6000 with refrigerants.

Square Rail Guide + USA Carlisle Belt

PMT square rail guide and USA brand Carlisle belt, high precise and high smooth, durable with long life span than normal belt.

Auto Focus And Red Dot Pointer

Standard with auto focus function and red dot pointer.

With auto focus, users can easy focus by press "Focus" button on control panel for different thickness material.

Red dot pointer help shows where the laser beam goes.

Air Fan And Air Hose Include

Air fan and air hose for suck smoke and tiny waste when laser cut or engrave.

After Sales Service

Transon After-sales Service For Laser Machines:
1) Warranty 2 year for whole machine and water chiller, Reci laser tube 540 days warranty.
2) Machine whole life technical support.
3) Engineers available service machinery overseas
4) Online support by email, Whatsapp, Videocall, tell, Team viewer. We will help solve the any problem within 8 hours.

Company Profile

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer found in 2010. We specialized in manufacture of fiber laser cutting machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter, and we support OEM.

After 10 years growth, Transon CNC has won an excellent reputation in the global market. Our CNC machines have sold to more than 100 countries and we have some long-term cooperate agents in Euro, Asia and South America. We are looking for distributors all over the world, welcome worldwide customer come to visit our factory to cooperate.

Good Feedback

Our products are well received

FAQ

FAQ:

Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010, all our CNC machines are assemble and calibrate by our full experience engineers.

Q2: Where are you located? How can we visit you?
A: We welcome worldwide customer visit us anytime. Factory locates in Jinan city of Shandong, in the north of China, near Beijing
and Qingdao.

Q3: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1).What work you will do?
2). What work table size you will need?

Q4: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, and Alibaba Trade Assurance.
Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set

Q5: What's your quality control system?
A: All our CNC machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send
you test video and photos for confirm.

Q6: What's your after-sales service?
A: 1) Warranty 2 year for whole machine.
2) Machine whole life technical support.
3) Engineers available service machinery overseas
4) Online support by email, Whatsapp, Videocall, tell, Team viewer. We will help solve the any problem within 8 hours.

Q7: If I don't know how to use the machine, can you teach me?
A: There is a U disc send together with the machine including machine install video, some video of how to use machine, user manual
and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
1) Online call or video call (Email, Skype, Whatsapp, Wechat, Phone)
2) Remote desktop software (Team viewer)
