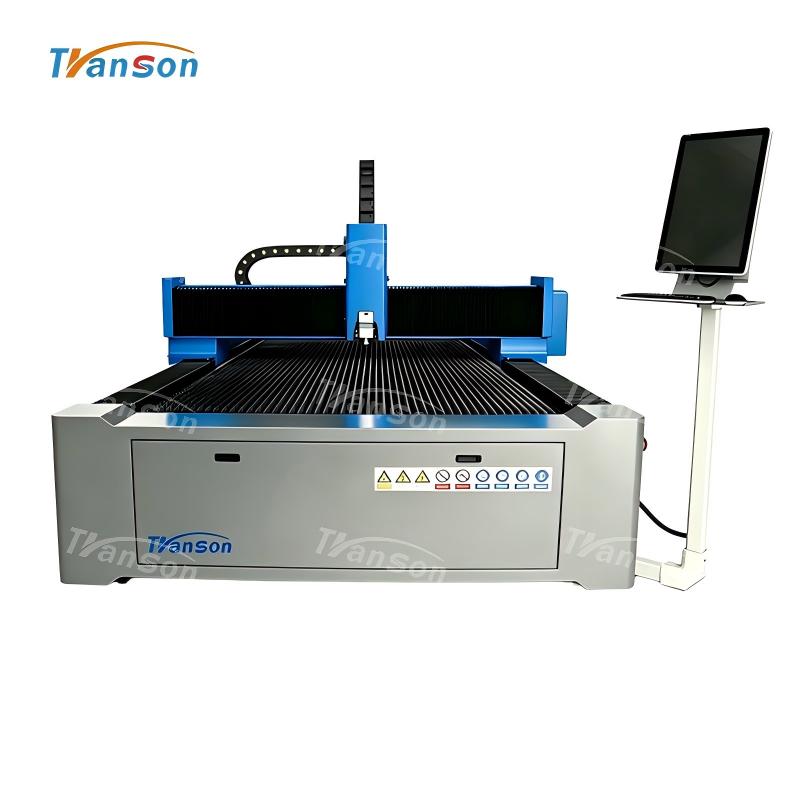

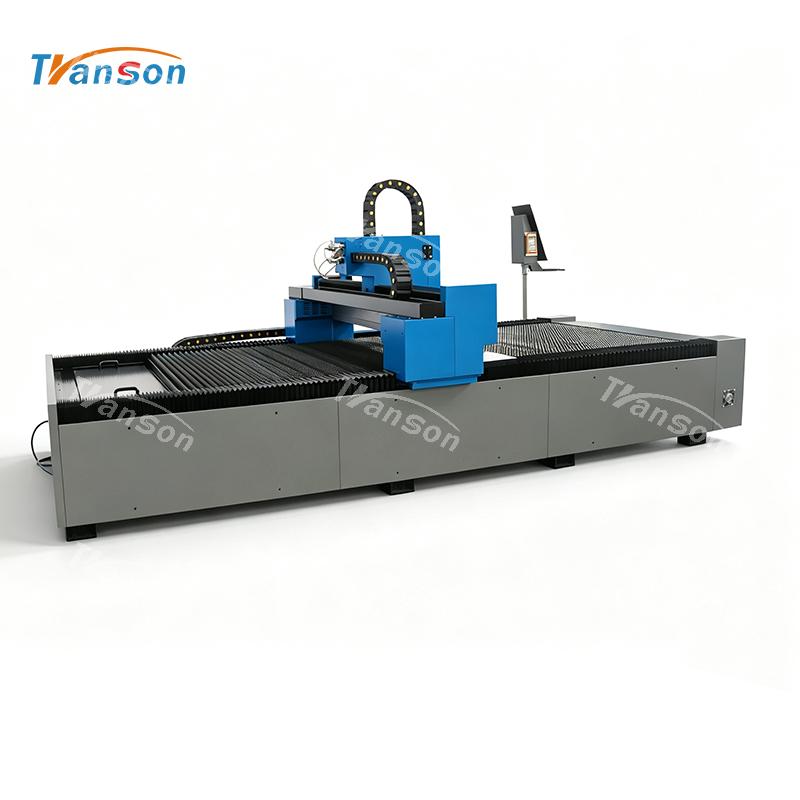

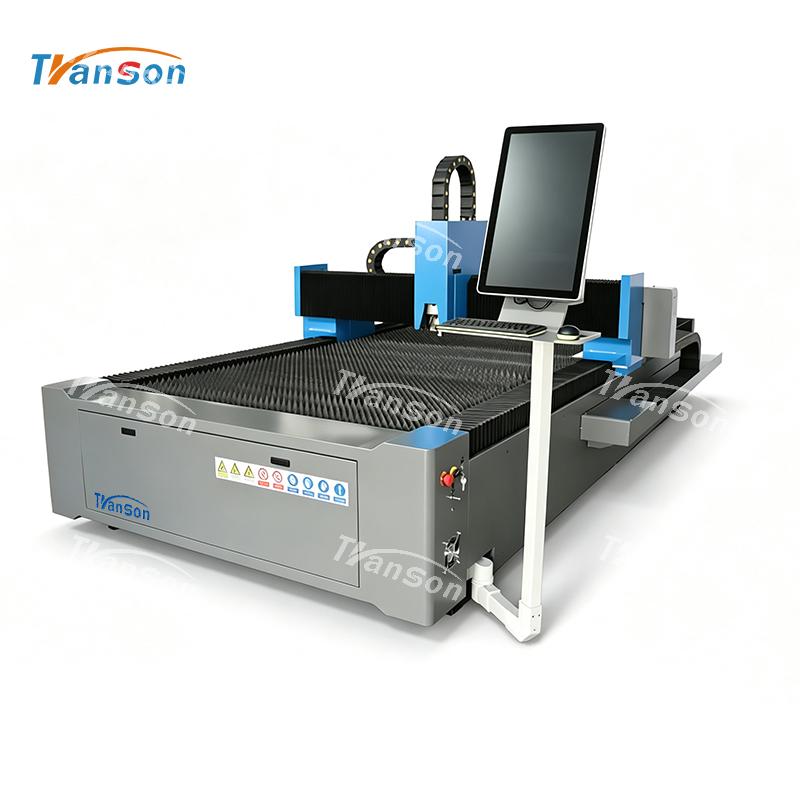

Transon 1500*3000mm Work Area Metal Sheet Fiber Laser Cutting Machine Tsf1530...

TSF 1325 1530 Fiber Laser Metal

Cutting Machine 1000w 1500w

2000w 3000w 6000w

Model: TSF1325 /TSF1530
Cutting range: 1300 x 2500 mm / 1500 x 3000 mm
Cooling Type:Water cooling
Power: 1000w-6000w optional
Laser Head: Raytools

这里可以自定义设置

TSF1325 TSF1530 Fiber

Laser Metal Cutting

Machine

1.The first one dual-use fiber laser cutting machine in China,can cut metal and non-metal material at the same time.

2.Moved crossbeam with imported high precision ball screw and rail guide transmission makes the stable driving and high precision work.

3.Machine frame, crossbeam and worktable adopt integral welding, in accordance with the standard large machine, to stress annealing after rough machining, and then vibration aging treatment, can completely eliminate the welding stress and processing. Can also keep high strength, high precision, and also keep the 20 years of normal use of deformation.

4. X and Y axis equip with import servo motor, high precision, high speed, large torque,

largeInertia for a steady and durable work

Machine Videos

TSF1530 cutting 10mm carbon steel

TSF1530 cutting 2mm stainless steel

PRODUCT DESCRIPTION

Technical Parameters

Description	Specification
Product Name	Transon Fiber Laser Cutting Machine
Model	TSF1530
Type	Fletbed
Working area	1500*3000mm
Laser Power	1500w/2000w/3000w/6000w optional
cooling way	Water cooling
Laser Type	Fiber
Wavelength	1080±5nm
Control system and Cutting Head	Bochu /Raytools/Au3tech optional
X/Y Max Speed	60m/min
Maximum acceleration	1.0G
repeat positioning accuracy	±0.02 mm
Voltage	220V/50HZ , 1 phase for 1500w-2000w 380v/50hz, 3 phase for 3000w-6000w
Drive system	Servo motor for x y z axis
Transmission way	Rack and Gear

APPLICATION

Applicable Materials:

Stainless steel sheet, carbon steel sheet, alloy steel sheet, iron sheet, galvanized iron sheet, galvanized sheet, copper sheet, brass sheet, bronze sheet, gold sheet, silver sheet, titanium sheet and other metal sheets.

Application industry

Automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo,car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products, subway accessories, decoration, textile machinery, food machinery , Construction machinery, ships, tooling, metallurgical equipment, aviation, aerospace and other manufacturing and processing industries.

PACKAGING & DELIVERY

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.

Supply Ability: 100 sets / Month

Port: Qingdao

Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.

Packaging Detail: International standard plywood export box

Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

OUR SERVICE

Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer in Jinan China found in 2010.

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email, Whatsapp, Skype within 24 hours
2. Friendly English version manual and operation video CD disk
3. Engineers are available to serve overseas services

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after receiving machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email,whatsapp,skype,tel,etc.
