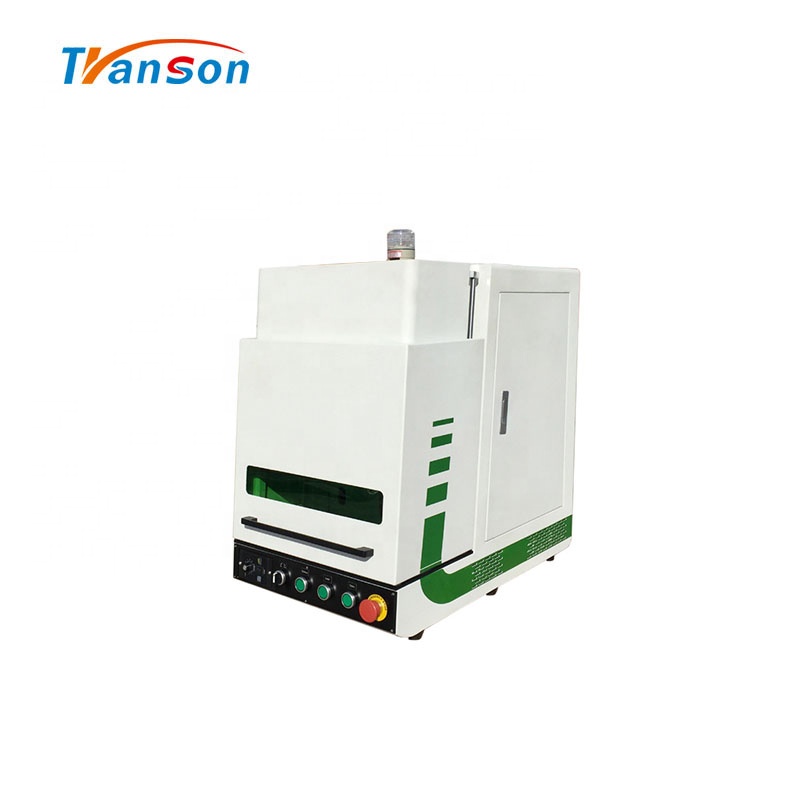

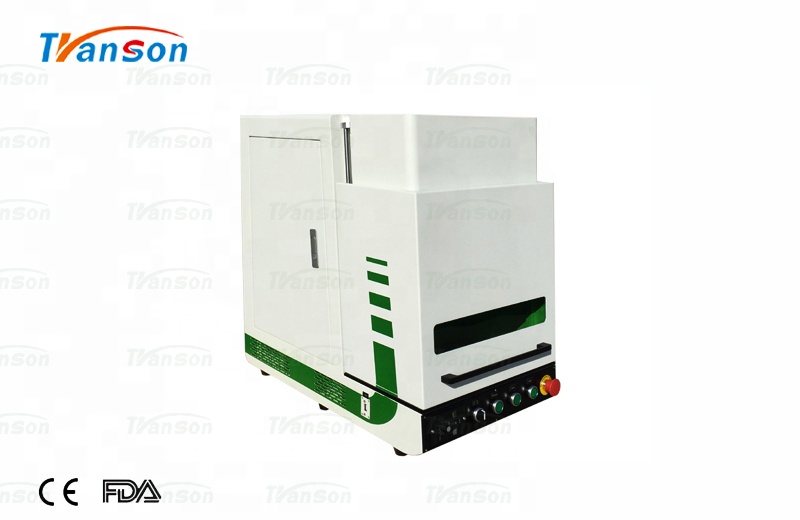

Sale 20W 30W 50W 100W Enclosed White Fiber Laser Mark Cut Engraving Machine

这里可以自定义设置
Sale 20W 30W 50W 100W Enclosed White Fiber Laser Mark Cut Engraving Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Marking
Working Accuracy:
0.001mm
Graphic Format Supported:
AI, PLT, BMP, Dst, SVG,JPC,NC,G,BOT,GBR, JPG,JPEG,GIF,TGA,PNG,TIF,TIFF.
Laser Type:
Fiber Laser
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
RAYCUS
Control System Brand:
BJJCZ
Marking Head Brand:
Sino
Weight (KG):
91 KG
Key Selling Points:
Easy to Operate
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Applicable Industries:
Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, marking laser machine
After Warranty Service:
Video technical support, Online support
Local Service Location:
United Kingdom, Philippines, Peru, Pakistan, Russia, Romania
Showroom Location:
United Kingdom, Philippines, Peru, Russia, Romania
Marking Area:
110mm*110mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
3 years
Core Components:
laser source
Laser source:
Raycus
Laser wavelength:
1064nm
Marking Depth:
0.01-1mm
Marking Speed:
0-7000mm/s
Lifespan of laser device:
100000 Hours
fiber laser mark machine Color:
Requirement
Voltage:
220/110V
Support format:
Graphics, Text, Bar Codes, QR Code, Serial Number,etc.
Laser head:
Galvenometer Head
Cooling system:
Air Cooling System
Supply Ability
Supply Ability:
200 Set/Sets per Month
Video Description
Sale 20W 30W 50W 100W Enclosed White Fiber Laser Mark Cut Engraving Machine
Product Description
Sale 20W 30W 50W 100W Enclosed White Fiber Laser Mark Cut Engraving Machine
Laser type
Fiber Laser
Laser power
Raycus 20W/ 30W (IPG, JPT, Max optional)
Beam quality
M2< 1.5
Laser wavelength
1064±1 nm
Power adjustment range
10~100%
Output fiber length
1~2m
Frequency of pulse
20~80KHz
Power supply
220V/50Hz /8A (110V/60Hz /15A can choose)
Cooling system
Air Cooling
Graphic format supported
Bitmap: BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF
Vector: AI, PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR
Working area
110mm*110 mm(Standard)
can choose 50*50, 150*150, 175*175, 200*200 (mm)
Marking depth
<1mm
Marking speed
<5000mm/s
Min. line width
0.05mm
Repeatability accuracy
0.003mm
Power Machine
300-600W
Operation temperature
0~40°C
Operation system
Microsoft Windows system Win7, Win8, Win10.
Plywood package size
840*530*820mm(L*W*H)
Grosse weight
91KGS

Our service

1.12 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
2.Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3.Software is on update for free whole life.
4.Our engineer could support you technology to your country if necessary.
5.Our engineer could service on weekend even on vacation.
6.Our engineer could train you in our factory for free.
7.Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
8.English manual and CD video for machine using and maintaining will send you with the machine.

Package & Shipping

1.Standard plywood case, its compressive strength and bearing quality is better;
2.The board area is bit, the soil structure is good, it is better in leakproofness and waterproof;
3.When importing, the plywood case is with fumigation-free, the procedure is simple;
4.Delivery Detail: within 20days after received your payment.
Our factory
Why Choose Us

Q1:How can I get the best laser marking machine for me?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2:This is the first time I use thisCNC router machine, is it easy to operate?
We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by “Teamviewer” online help software. Or we can talk by phone, email or other contact ways.

Q3:If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under “normal use”.

Q4:How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Q5:How long is the delivery time?
For standard machines, it would be 5-9 days; For non-standard machines and customized machines according to client’s requirements, it would be 10 to 15 days.

Many thanks for your reading. Any laser marking machine questions, please feel free to contact me.
The product can be accepted by customers in the industry due to its increasing economic benefits. It ensures the materials being cut have smooth edges. The development of the product keeps track with the current industry trends. It ensures the materials being cut have smooth edges.
