Rubber Stamp Acrylic Wood Paper Mini Laser Engraving Machine...

Overview

Quick Details

Application:: Laser Engraving

Applicable Material:: Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, fabric,cloth,double color etc

Engraving Area:: 400*400mm

Laser Type:: CO2, CO2 sealed laser tube

Engraving Speed:: 0-70000mm/s

Graphic Format Supported:: AI, BMP, Dst, DXF, PLT

Condition:: New

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Place of Origin:: Shandong, China

Brand Name:: Transon

Dimension(L*W*H):: 400mm*400mm

Certification:: CCC, ce, GS, ISO, Sgs, UL, FDA

Warranty:: 1 Year, 1 Year

After-sales Service Provided:: Field maintenance and repair service, Engineers available to service machinery overseas

Working area:: 400mm*400mm / 15.75in*15.75in (L*W)

Laser Engraving Machine Power:: 40W optional

Driving System:: Stepper Motor And Driver

Min. Shaping Character:: English 1.0 x 1.0mm

Supply Ability

Supply Ability:: 500 Set/Sets per Month

Rubber Stamp Acrylic Wood Paper Mini Laser Engraving Machine Price 40W 4040 Laser

This is a mini Laser engraving machine which is designed according to market requirement. It is small enough and could be taken easily. TS4040 is the perfect choice for home shop, DIY, sign maker, engraver, panel maker, stamp making, arts and craft making and so on. It’s economical model, full function, small enough to fit into almost any work space.

It can be used to engrave or cut alone on the surface of various materials and can simultaneously conduct engraving and cutting. The features of equipment are fast operation speed, easy to use, low cost, reliable engraving effects and burr-free cut edges. Thus, the grinding is not necessary to handle again and the cutting waste is little. Besides, the engraving depth can be easily adjusted with high precision.

Applicable Industries
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration and photo Frame Making, ect.

Applicable Materials
Non metal materials such as double-color sheets, acryl, glass, wood planks, paper, leather, rubber, marble, granite and tiles, etc.

Machine Parameters:

Model	TS4040
Working area	400mm400mm / 15.74in15.74in (L*W)
Laser power	40w
Laser type	CO2 sealed laser tube, water-cooled
Worktable	Standard with Metal slat worktable
Engraving speed	0-70000mm/min
Cutting speed	0-40000mm/min
Highest scanning precision	2500DPI
Power supply	220v/50Hz , 110v/60Hz
Min. shaping character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported	BMP, PLT, DST, DXF, AI
Software supported	CorelDraw, PhotoShop, AutoCAD,TAJIMA
Control system	High speed DSP control system brand Ruida or Leetro
Machine work software	Laser cut 5.3 (Leetro)/ RDWorks V8 (Ruida)
Laser output control	1-100% by setting in the software
Interface	USB
Driving system	Stepper
Color separation	Yes
Optional part	Up and down worktable/Honeycomb worktable/Red dot pointer /Auto focus/Rotary attachment with rollor/Rotary attachment with clip
Spare parts	Extra laser tube/Extra 1 lens and 3 mirrors

Machine detail picture, with honeycomb worktable:

40W glass tube use a water pump to cooling the glass tube.

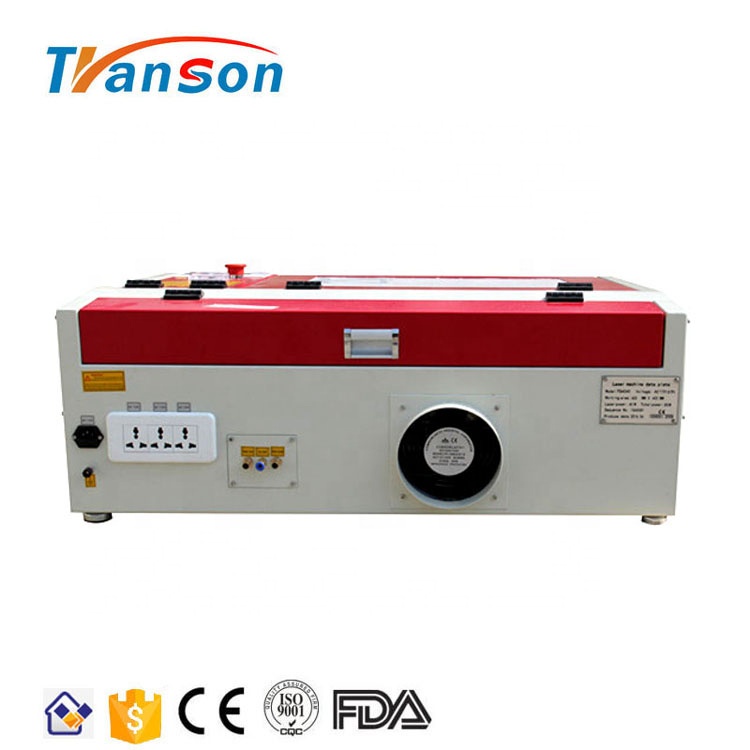

Socket: Multi-function socket at the back of the machine:

Product Description

TS4040 Machine standard parts(coming with machine)

1	USB port LED panel
2	DSP offline control, LCD screen
3	Software
4	LED Lamp
5	Air Pump
6	Whater pump
7	Exhaust Fan
8	Exhaust Fan tube
9	Laser tube
10	Imported Lens and Mirrors (installed in the machine )
11	Water flow sensor
12	User manual of machine (English version)
13	User manual of software
14	USB Cable
15	Communication cable
16	U flash memory disk
17	Tool box include tools
18	Electrical wires

Our Services

1, All the components of our laser machines are with the highest quality, good finish and good quability. Our quality control department will fully check and test EVERY ONE of our laser machines before shipment. We can 100% make sure all our customers will get good products from us, and we have TWO year warranty for our laser machine. Usually the life time of glass laser tube is 100,000 hours, machines can keep working 24 hours a day, usually working more than 8 hours a day is totally no problem.

2, Together with the laser machines we send together "Instruction Book", "Operation Manual" and "Training Video" (in English version) our customer can easily understand and operate our machines when they arrive.

3, We will offer plenty of online supports, by email, video, telephone and fax.

4, Our engineer can make a door-to-door instruction training service.

Contact

Contact: Linda/ Sales Department

Email: linda(at)transoncnc.com

Add: A area of Xingquan industry park, Jinan city, Shandong province, China250000.

Tel: 0086-531-82920890 MP: 0086-15990907892 Fax: 0086-531-82920891

Skype: Linda_Transon

Whatsapp: 008615990907892

QQ: 651388879
