Roll Fabric/textile Laser Cutting Machine Ts1630

Overview

Quick Details

Application:: LASER CUTTING

Applicable Material:: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crytal

Condition:: New

Laser Type:: CO2

Cutting Area:: 1600 X 3000 mm

Cutting Speed:: 0-1000mm/min

Graphic Format Supported:: AI, BMP, Dst, DXF, PLT

Cutting Thickness:: According material

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: RDworks software

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO

Warranty:: 1 Year

After-sales Service Provided:: Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas

Working area:: 1600x3000mm

Laser power:: 100W

Laser tube:: Reci brand W2 90-100W

Cutting speed:: 0-10000 mm/min

Laser type:: CO2 sealed, water cooling

Cooling Type:: Water-cooled and Protection System

Laser Output Control:: 1-100% Software Setting

Water chiller:: CW3000 water chiller

Auto feeding system:: Include

Supply Ability

Supply Ability:: 30 Set/Sets per Month

Roll fabric/textile laser cutting machine TS1630

Auto Feeding Cloth Laser Cutting machine

1. Professional design for cutting Non Woven fabric, fabric, leather, textile, cloth, jens, as well as wood, acrylic and so on.

2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree,

cutting and drilling holes etc.

3. Owns functions of restoring from power off, continuation on break point.

4. Transmit files directly in Coreldraw, AutoCAD,etc.

5. Adopt international linear rail, more precision.

Machine Parameters

Model	TS1630 Textile Laser Cutting Machine
Laser Power	80W/100W/150W
Laser Type	CO2 sealed, glass laser tube, water cooling
Work Area	1600 X 3000 mm
Cooling Type	Water-cooled and Protection System
Engraving Scanning Speed	0-60000 mm/min
Cutting Speed	0-10000 mm/min
Laser Output Control	1-100% Software Setting
Smallest Character Engraving	English: 1.0X1.0 mm
Highest Scanning Precision	2500DPI
Power Supply	AC 110-220V±10%, 50-60Hz
Operating Temperature	0°-45°C
Operating Humidity	5%-95%
Locating Precision	≤±0.01mm
Supported File Format	DSTPLTBMPDXFAI
Compatible Software	TAJIMACORELDRAWPHOTOSHOPAUTOCADAll
Slope Engraving	360°Slope Can Be Designed Easily
Driving System	3 Phases Stepper Motor
Standard Software	LaserCut5.3
Net Weight	1000KGS
Gross Weight	1250KGS
Optional Spare Parts	Up-down Worktable, Rotary System, Honeycomb Worktable
Removable Spare Parts	Laser Tube and Lens

Machine standard and optional parts

Accessories

water chiller aircompressor

Details

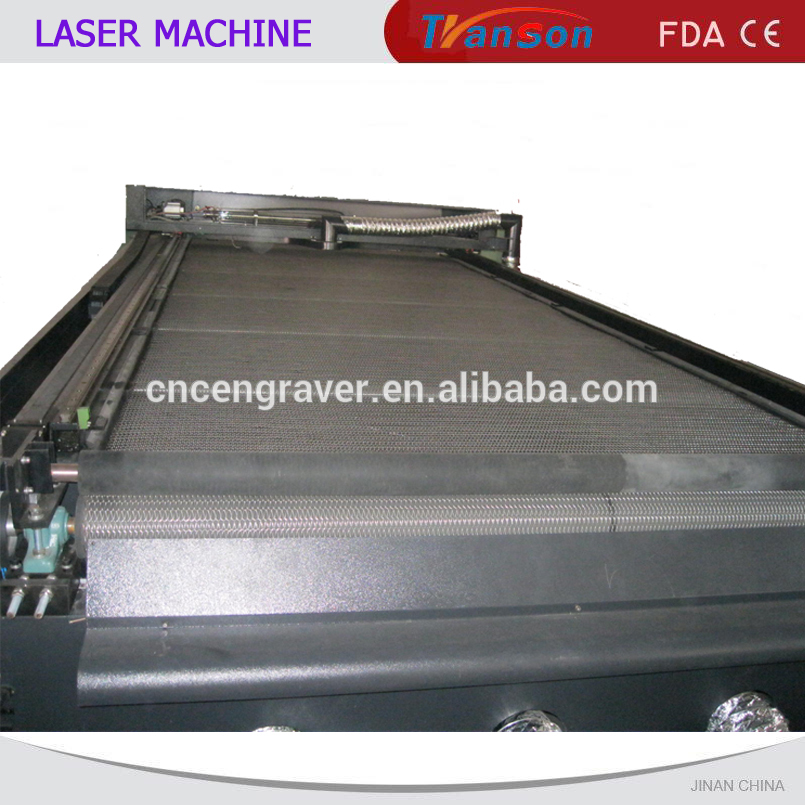

Auto feeding

Laser head

Samples

More model

1610/Auto-feeding

1810/Auto-feeding
