Raycus Metal Fiber Laser Marking100W Laser Engraving Machine On Curve Surface Aluminum Alloy

这里可以自定义设置
Raycus Metal Fiber Laser Marking100W Laser Engraving Machine On Curve Surface Aluminum Alloy
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
Laser Marking
Working Accuracy:
0.001mm
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, SVG,JPC,NC,G,BOT,GBR, JPG,JPEG,GIF,TGA,PNG,TIF,TIFF.
Laser Type:
Fiber Laser
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Laser Source Brand:
RAYCUS
Control System Brand:
BJJCZ
Marking Head Brand:
Sino
Weight (KG):
69 KG
Key Selling Points:
Easy to Operate
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Applicable Industries:
Manufacturing Plant, Retail, Printing Shops, Advertising Company, rotary attachment for laser engraving machine
After Warranty Service:
Video technical support, Online support
Local Service Location:
Russia
Showroom Location:
United Kingdom, Philippines, Peru, Russia, Romania
Marking Area:
110mm*110mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Motor, PLC
Marking Speed:
0-7000mm/s
Laser source:
Raycus
Fiber laser marking machineLaser head:
Galvenometer Head
Marking Depth:
0.01-1mm(depend on materials)
Lifespan of laser device:
100,000 hours
Laser wavelength:
1064nm
Marking format:
Picture,Graphics, Text, Bar Codes, QR Code, Serial Number,etc.
Working Voltage:
110V/220V
Color:
Customrized
Product name:
whats the best engraving machine to engrave metal
Supply Ability
Supply Ability:
300 Set/Sets per Month
Video Description

Raycus Metal Fiber Laser Marking100W Laser Engraving Machine On Curve Surface Aluminum Alloy

Product Description

Fiber laser marking machine is the use of laser beam in a variety of different material surface marked with a permanent mark. Effect of marking is exposed deep substance through the surface material evaporation, showing the required the etching pattern, text, and other types of bar code graphics.

Benefits of Fiber Laser Marking Machine

1).Environmentally friendly: Using no harsh chemicals during the process. No need water chiller to cool, small size small occupation, can be easily installed in many places.

2).Cost-effective: No maintenance during the 100,000 hours working life. One machine can be used in many different materials & industry. Minimal part replacement.

3).High efficiency: Computer operated, suitable for automatically processing(like production line, automatically filling line).





Parameters



Raycus Metal Fiber Laser Marking100W Laser Engraving Machine On Curve Surface Aluminum Alloy
Model TSF100
Laser  type Fiber Laser
Laser  power 100W (Normall and Mopa)
Beam  quality M2< 1.5
Laser  wavelength   1064±1 nm
Power  adjustment  range 10~100%
Output  fiber  length 1~2m
Frequency  of  pulse 20~80KHz
Power  supply  220V/60Hz /8A (110V/60Hz /15A can choose)
Cooling  system Air Cooling
Graphic  format  supported DWG.DXF.PLT.CNC.GBR.DST.AI.BMP
XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA
Working  area  110mm*110 mm(Standard) can choose 150*150mm 200*200mm 300*300mm
Marking  depth <1mm
Marking  speed <5000mm/s
Min. line  width 0.05mm
Repeatability  accuracy 0.003mm
Power  Machine 300-600W
Operation  temperature 0~40°C
Operation  system Microsoft Windows system
Operating  environment Clean and free of dust, focal

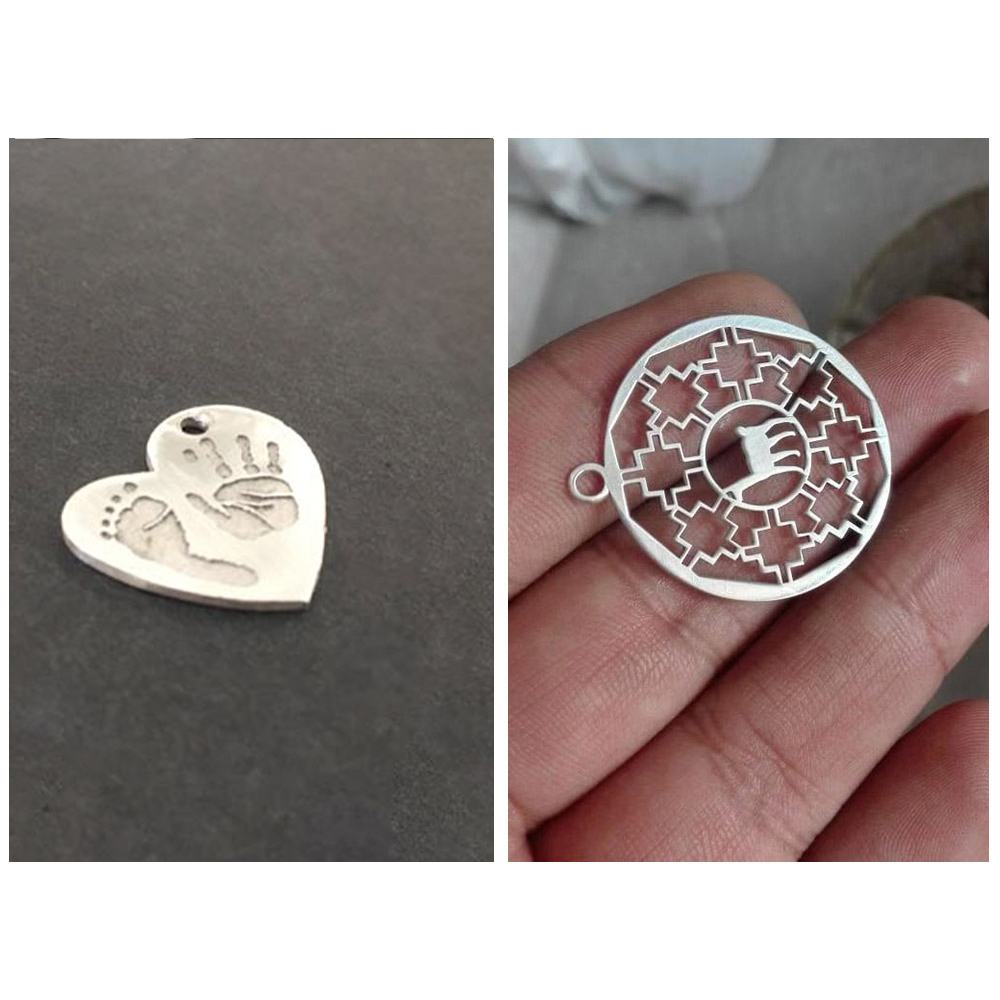

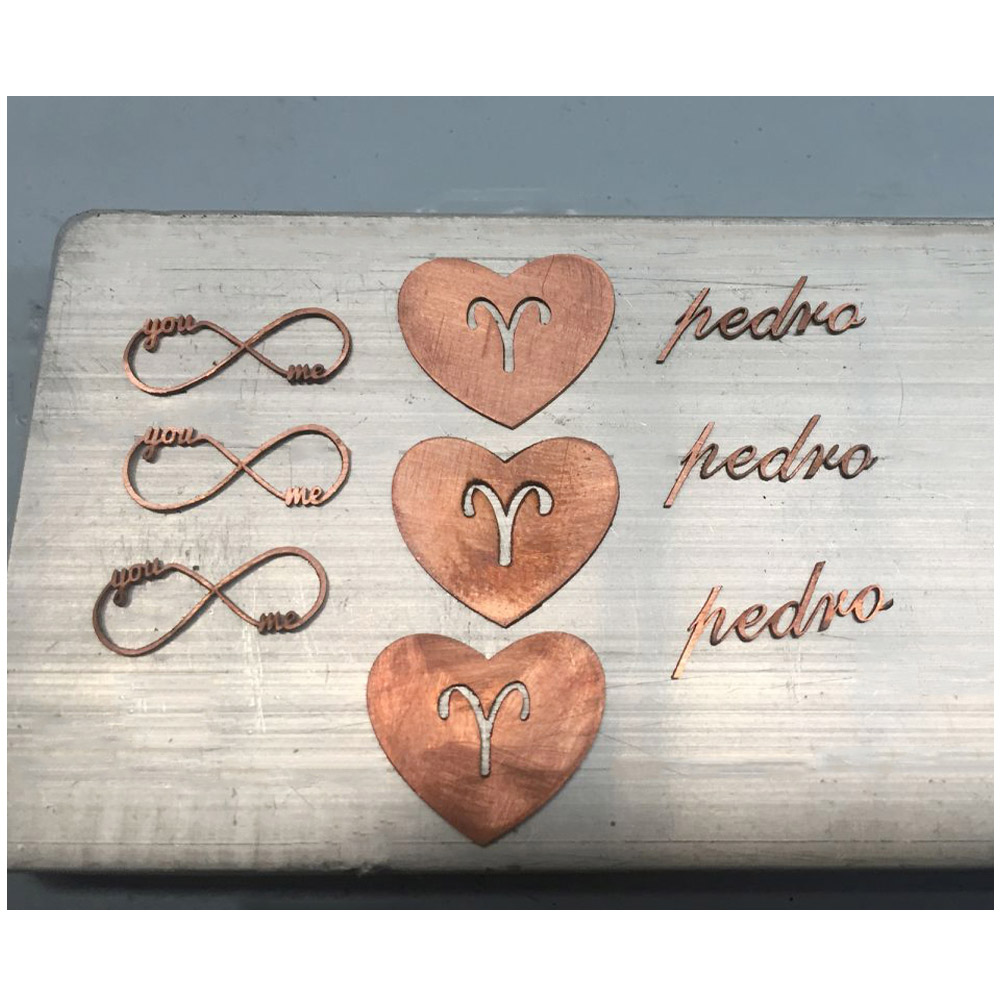

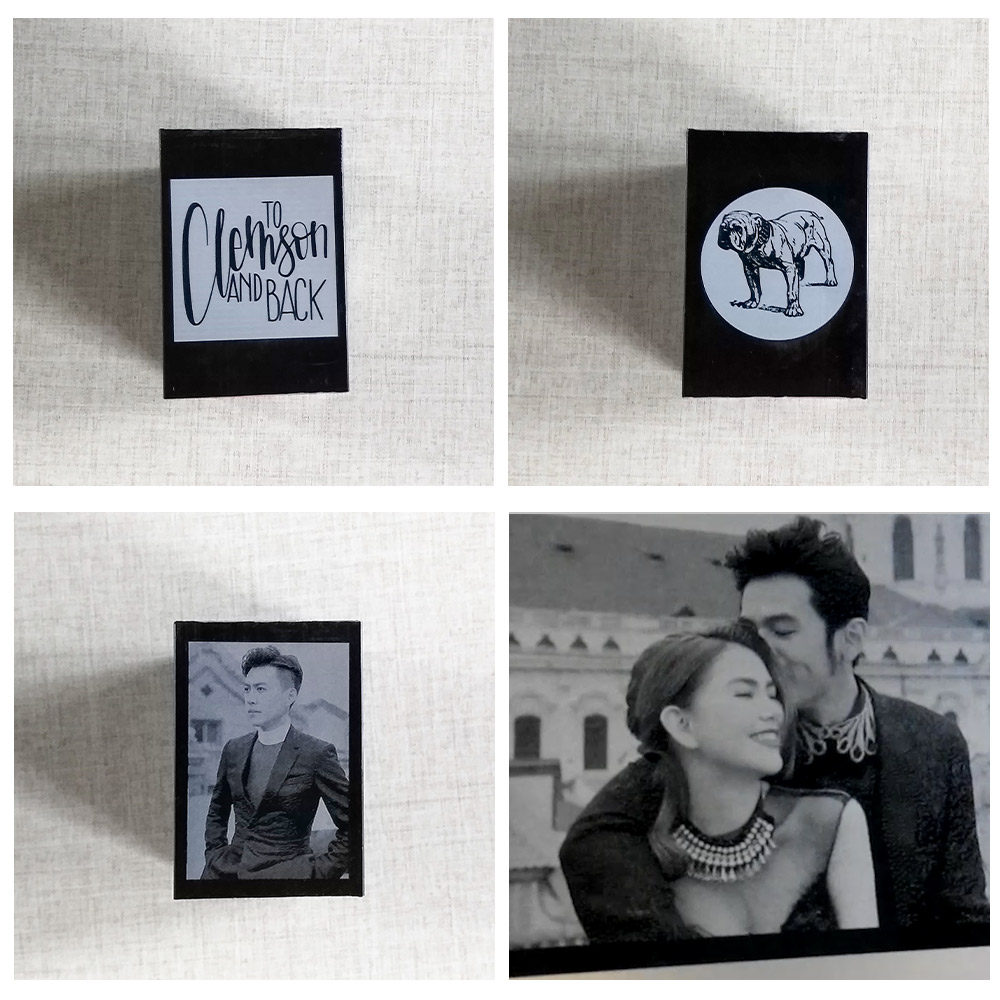

Product Application

Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components,integrated circuits(IC), electrical appliances, communication products, sanitary ware,tools, accessoires, knives, eyeglasses and clocks,jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.



Applicable materials

Metals(inluding rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

Packaging&Shipping



Company Information



This product is widely used in the industry and it is deeply trusted by users at home and abroad. It always receives attention at exhibitions such as Indonesia industrial machinery and electronic products exhibition. The product perfectly adapts to the market trend and has a great potential for wider application. It always receives attention at exhibitions such as Indonesia industrial machinery and electronic products exhibition.
