Popular Transon Brand Co2 Laser Cutting Machine Ts6090

Overview

Quick Details

Application:: LASER CUTTING

Model Number:: TS6090

Applicable Material:: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, fabric cloth, Crytal

Condition:: New

Laser Type:: CO2

Cutting Speed:: 0-40000mm/min

Graphic Format Supported:: AI, Dst, DXF, PLT

Cutting Thickness:: depend on laser power and the materials

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: DSP OFFLINE CONTROL SYSTEM

Place of Origin:: Shandong, China

Brand Name:: Transon

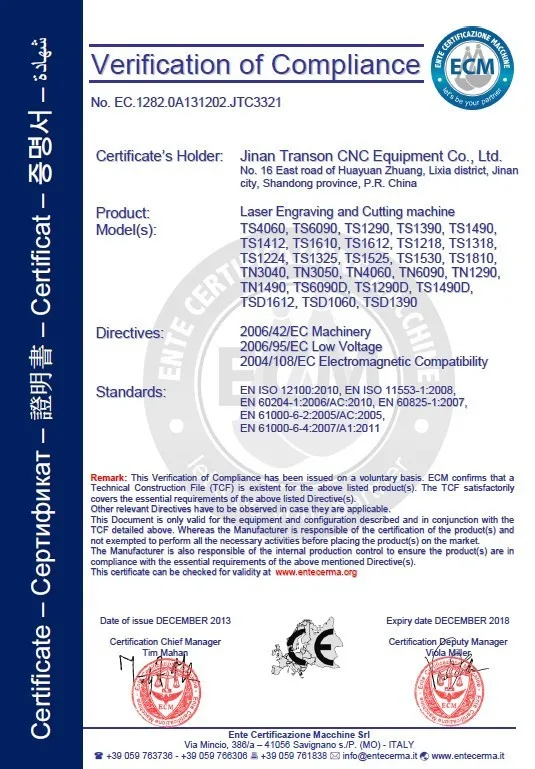

Certification:: ce, ISO, FDA

Laser power:: 60W/80W

Laser type:: CO2 sealed laser tube,water-cooled

Engraving speed:: 0-70000mm/min

Working area:: 900mm*600mm / 35in*24in (L*W)

Highest scanning precision:: 2500DPI

Power supply:: 220v/50Hz , 110v/60Hz

Min. shaping character:: English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm

Driving system:: Stepper motor

Software supported:: CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut

After-sales Service Provided:: Engineers available to service machinery overseas

Cutting Area:: 600mm*900mm

Supply Ability

Supply Ability:: 200 Unit/Units per Month according to the contract

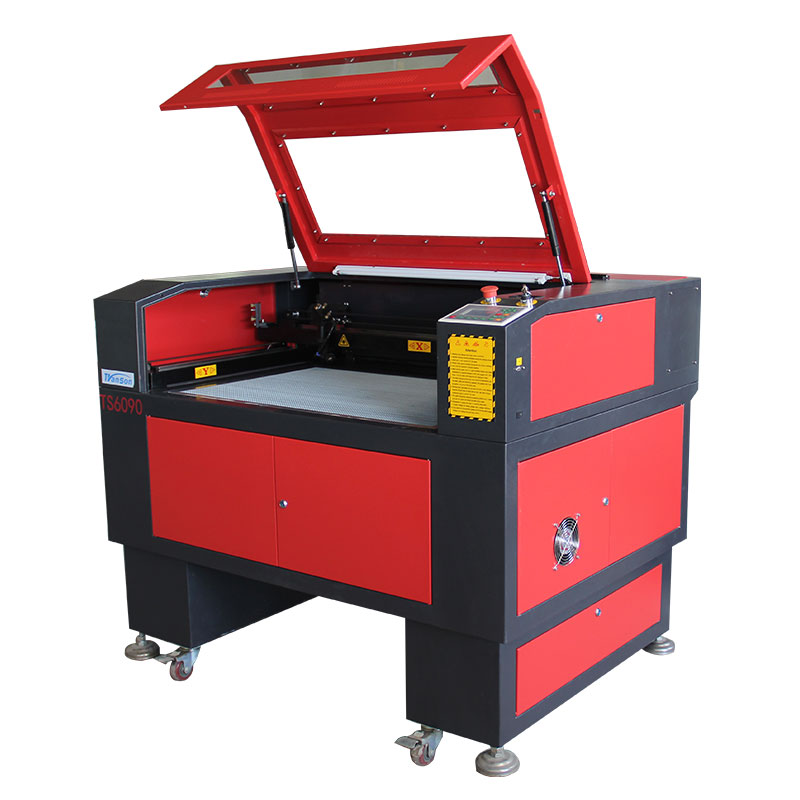

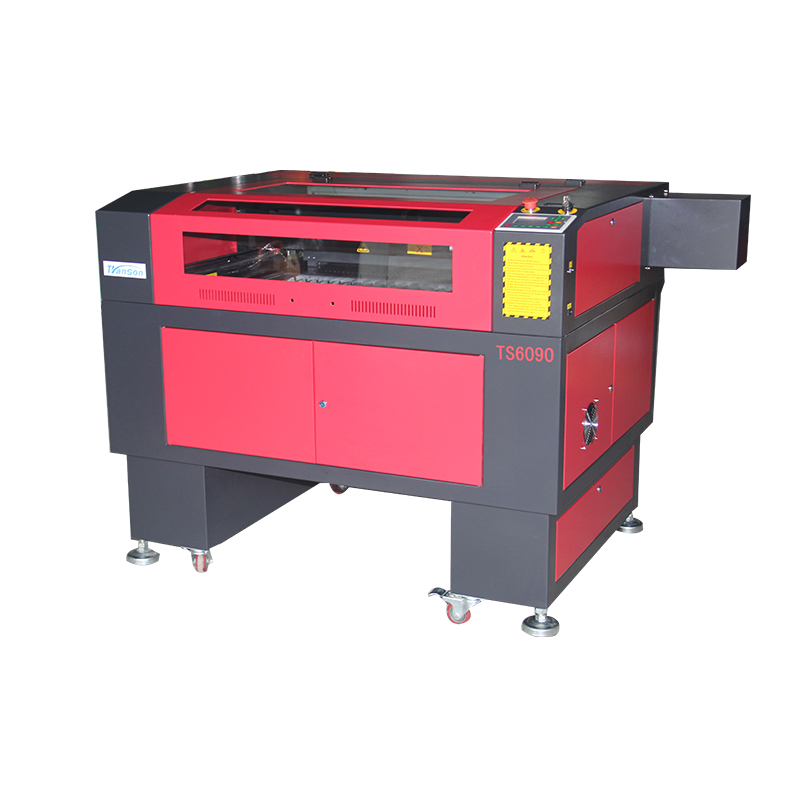

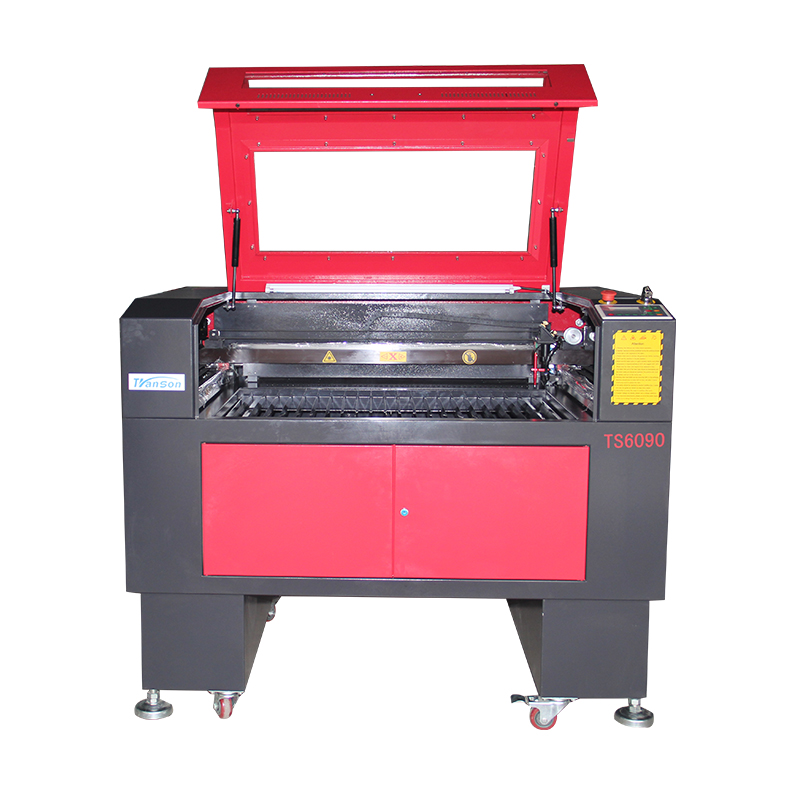

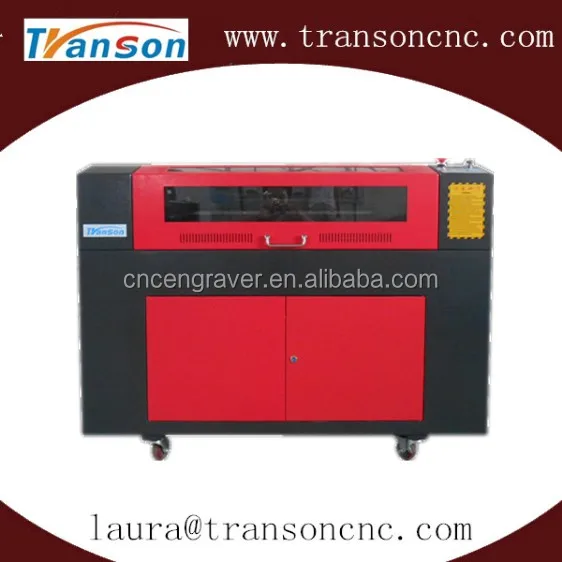

Popular Transon Brand CO2 Laser Cutting machine TS6090

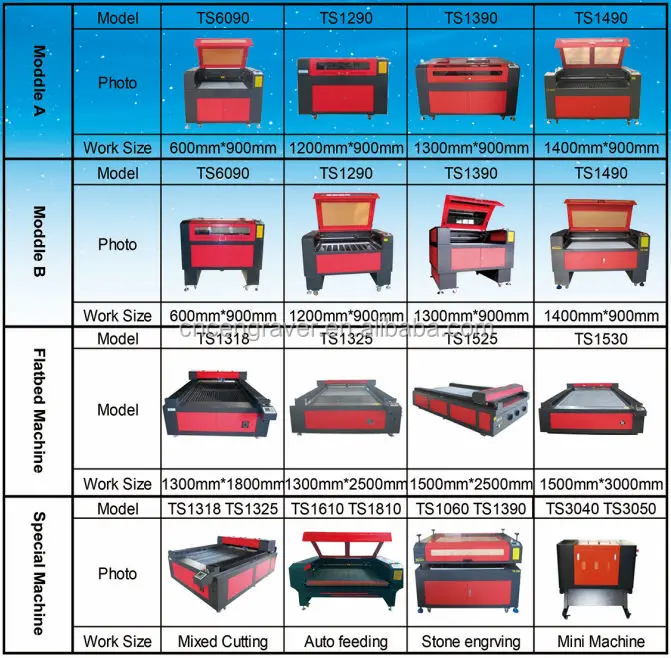

Model A Model B

Description:

Based on the advantages of the laser such as high energy density and easy operation,Transon

has successfully developed a new generation XP system high speed laser cutting machine.This

equipment can be applied to different kinds of materials and has many advantages such as smooth

cutting edges,free from polishing, noise free, dust free,fast processing speed, high precision,

less waste and higher efficiency. It is the best option for upgrading traditional equipments in various industries.

Applicable Industries:

Model industry (construction models, aviation and navigation models and wooden toys), advertisement,

decoration, arts and crafts, electronic and electric appliances, etc.

Working materials:

Nonmetal materials such as acyl, wood planks (light planks, paulownia wood), bamboo ware. double

color sheets, paper,leather, shells, coconut shells.ox horns, resin, animal grease, ABS boards, lampshade, etc.

Parameter:

Model		TS6090
Working area		900mm600mm / 35in24in (L*W)
Laser power		60w/80w
Laser type		CO2 sealed laser tube, water-cooled
Engraving speed		0-70000mm/min
Cutting speed		0-40000mm/min
Highest scanning precision		2500DPI
Power supply		220v/50Hz , 110v/60Hz
Min. shaping character		English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported		BMP, PLT, DST, DXF, AI
Software supported		CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut
Control system		DSP
Driving system		Stepper motor
Color separation		Yes
Equipment Dimension / Packing Dimension	60w	1350mm950mm970mm/53in37in38in (LWH) 1460mm1060mm1200mm/57in42in47in (LWH)
	80w	1750mm950mm970mm/69in37in38in(LWH) 1850mm1060mm1200mm/73in42in47in(LWH)
N.W/G.W	60w	230kg/300kg
	80w	240kg/310kg
Optional parts	1.Motorised up and down worktable 2.Rotary attachment with roller/clip 3 Water chillers 4 Red dot pointer 5.Auto focus
Consumable parts (Recommended)	1.Extra laser tube 2.Extra 1 lens and 3 mirrors

Samples:

If you are interested in it and would like to know more, please don't hesitate to contact me.Thank you!

The product is able to get a big workload done with little energy consumption, which is not only fast but also labor-saving. It supports formats including DXF, DWG, EPS, AI, BMP, JPG, TIF, and GIF. With the help of this product, the production can be finished at a faster and smoother manner, which can ensure project completion in a given deadline. It supports formats including DXF, DWG, EPS, AI, BMP, JPG, TIF, and GIF.
