Paper Card/Invitation Card/Wedding Card Cutting Machine Lasers

这里可以自定义设置
Paper Card/Invitation Card/Wedding Card Cutting Machine Lasers
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Application:
LASER CUTTING
Model Number:
TS1490
Applicable Material:
Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plywood, Rubber, Wood
Condition:
New
Laser Type:
CO2
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
DSP
Place of Origin:
Shandong, China
Brand Name:
Transon
Certification:
ce, ISO, FDA
Working area:
140cm*90cm / 55in*35in
Standard laser power:
100W(Optional 80w)
Laser type:
CO2 sealed laser tube
Engraving speed:
0-6000cm/min
Cutting speed:
0-5000cm/min
Power supply:
220V/50HZ , 110V/60HZ
Graphic format supported:
BMP, PLT, DST, DXF, AI
Software supported:
Photoshop, Coreldraw, AutoCAD, Artcut, TAJIMA
Net Weight:
450kg
Driving system:
Stepper motor
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Unit/Units per Month according to the constract

                                       China CNC cutter fabric laser machine







Laser Solution For Paper Crafts, Advantage:
Non-contact processing,
Section smooth, fast, no deformation, no wear, no need mould
Precise cutting
Personalized cutting designs
Low maintenance and operation cost
Easy operation
Create incredible high added value of your products



Features

Specifically developed for the features of paper processing. Multi-position material uploading and unloading meets the requirement of batch processing and production.
The machine can precisely cut paper and also precisely engrave paper with high speed and simple operation.
Boundless innovation of design with one-time prototyping cutting and engraving of all kinds of complex pattern. No need of further processing.
It is non-contact heat processing with high cutting quality. The contour is clear with no burr and deformation.



Applicable industries & Materials

Applicable to paper, cards and packaging materials, etc.
Applicable to greeting cards, shadow puppets, labels, packaging, paper art and other industries.



Parameter

TS1490 Tranoson laser cutting machine

Item  /  Model

TS1490

Cutting area

1400x900mm

Laser power

60W/80W/100W/150W/180W

Laser type

CO2 Laser tube

Cutting speed

0-50000mm/min

Resetting positioning accuracy

0.01mm

Power supply

220V/50HZ  110V/60HZ

Operating temperature

0 - 45°C

Operating humidity

5-95%

Min. shaping character

English 1.0x 1.0mm

Graphic format supported

PLT,AI,DXF,BMP,DST.ect.

Software supported

 CorelDraw, PhotoShop, AutoCAD, Tiandao,Tajima

Driving system

3 phases actuator / Stepper/Servomotor

Cooling mode

Water-cooling and protection system

Equipment Dimensions

1960*1310*1120mm

Net Weight:

550kg

Shipping Dimensions

2060*1410*1200mm

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens



Optional Equipment:
1. Rotary system. For engraving column & cylinder, etc.
2. Motorized up-down table. For feeding thick work piece, often adopted together with rotary system.
3. Water-cooling unit. For cooling down the laser tube.
4. Red-light position. Clear to see where the laser will be
5. Vacuum table. For light-weight work piece such as paper textile, etc


Machine standard and optional parts

Guarantee & after sales Service:
1. Laser tube guarantees 3 months. While the whole machine guarantee for 1 year.
2. 24 hours technical support by email or calling
3. English manual and video tutorial

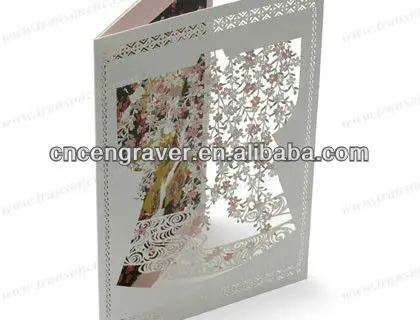

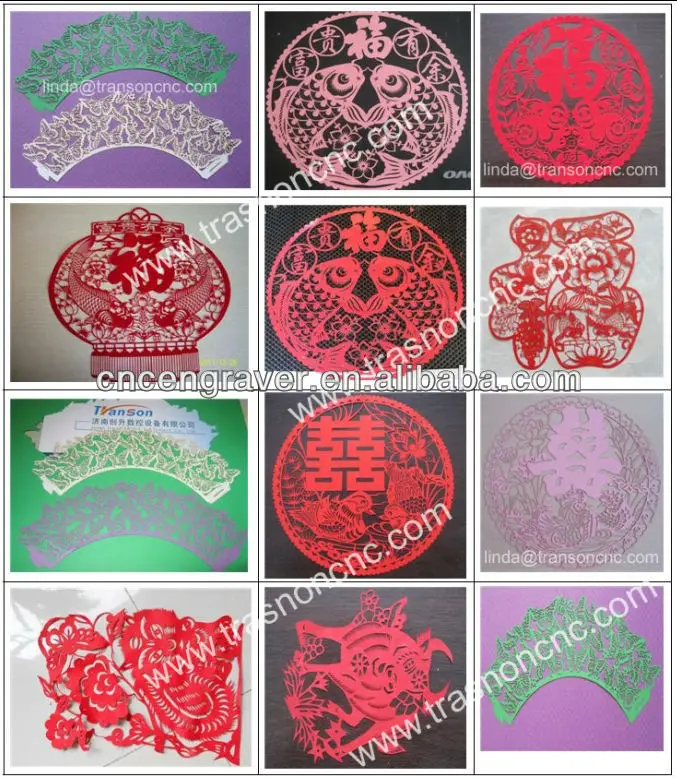

Paper laser engraving and cutting sample

The product is widely used in public areas like housing, education&research institutions, hospitals, hotels restaurants, and cinema halls. Endowed with electrical safety, it allows for maximum operator safety. Even if trends change, people will always find this product is included in the latest, most fashionable jewelry styles. Endowed with electrical safety, it allows for maximum operator safety.
