New Design 1390 Cnc Laser Diy Engraving Cutting Machine...

Overview

Quick Details

Application:: LASER CUTTING

Applicable Material:: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal, Bamboo

Condition:: New

Laser Type:: CO2

Cutting Area:: 1300cm*900cm

Cutting Speed:: 0-70000mm/min

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, DSB

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: RDWorks V8

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, ISO, FDA

Laser Source Brand:: RECI

Laser Head Brand:: Transon

Servo Motor Brand:: Steeper

Guiderail Brand:: PMT

Control System Brand:: RuiDa

Weight (KG):: 165 KG

Key Selling Points:: High Safety Level

Optical Lens Brand:: Wavelength

Warranty:: 1 Year

After-sales Service Provided:: Online support, Video technical support

After Warranty Service:: Video technical support, Online support

Applicable Industries:: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Model industry

Local Service Location:: United Kingdom, Philippines, Peru, Pakistan, Russia, Japan, Romania

Showroom Location:: United Kingdom, Peru, Russia, Romania

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: PLC, Laser source

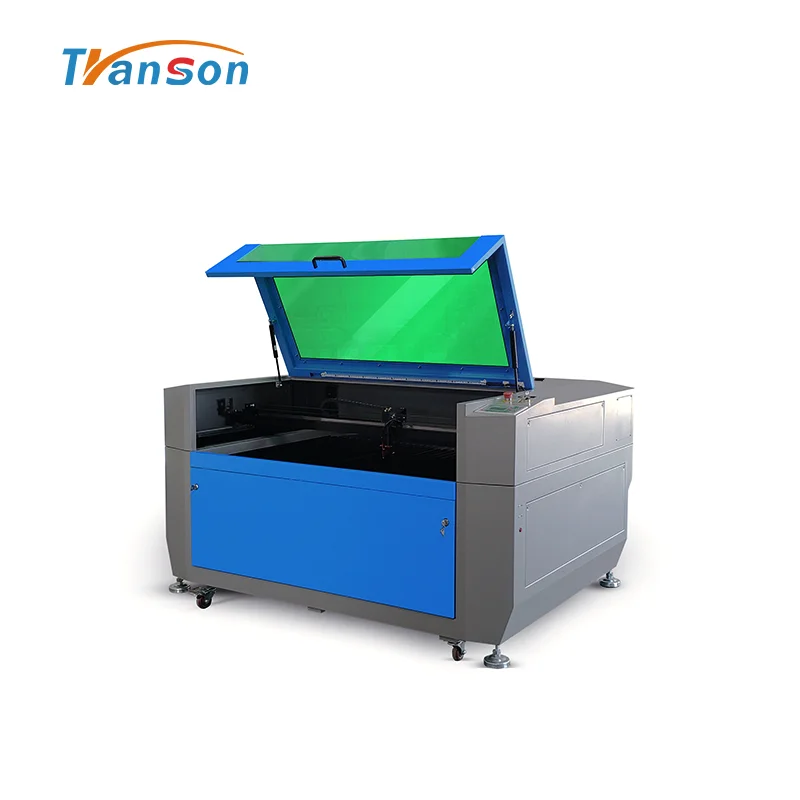

Product name:: New Design 1390 CNC Laser DIY Engraver and cutter

Keyword:: New Design 1390 CNC Laser DIY Engraver and cutter for wood and leather

Laser power:: 90W

Function:: Cutting Nonmetal Materials

Laser tube:: Sealed CO2 Glass Tube and Metal Tube

Cutting materials:: Acrylic Wood Mdf Plywood Plactical

Working area:: 1300mm*900mm

Name:: Transon CNC Laser Cutting Engravering Machine

Type:: Water Cooling CO2 Laser Cutting and Engravering Machines

Laser source:: Raycus IPG

Supply Ability

Supply Ability:: 300 Set/Sets per Month

Product Description

Manufacturer of 100W 1390 CO2 Laser Engraving Machine Cutting Machine Looking for Distributors

1,Machine large green acrylic window,can prevent laser radiation to operator.
2, Machine can front back feed material without open cover, max feed thickness 50mm.
3, Motorized up down metal slat worktable, up down distance 400mm.
4, All ball screws and belt are all covered, Effectively protects bearings and belts from laser and work waste.
5, Machine XY axis with JMC Hybrid servo motor and driver.

Model			TN1390
Working area			1300mm*900mm
Laser power			Reci W2 90-100W Glass tube, 10000 hours life span
Laser type			CO2 sealed laser tube, water-cooled
Engraving speed			0-70000mm/min
Cutting speed			0-40000mm/min
Highest scanning precision			2500DPI
Power supply			220v/50Hz , 110v/60Hz
Min. shaping character			English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported			BMP, PLT, DST, DXF, AI
Software supported			CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut
Control system			Ruida RDC6442S controller
Driving system			JMC Hybrid Servo motor and driver
Color separation			Yes
N.W/G.W			300kg/340kg
Machine size/ box size			1.8X1.36X1.03m/1.9x1.46x1.2m (WLH)
Consumable parts (Recommended)			1.Extra laser tube2.Extra 1 focus lens and 3 reflect mirror

Product details

Key switch Water level display Linear guider

40w CO2 Laser tube Laser power supply Control cabinet

Honeycomb worktable Laser head Emergency stop button

Control system ZnSe focus lens Tool box

Optional Parts

Metal slat worktable Rotary with roller

Application

Applicable industries

Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoreation, arts and crafts,electronics and electric appliances, etc.

Applicable materials

Double color sheet, acrylic, glass, wood, mdf, bamboo ware, coconut shells, paper, leather, cloth, marble, ceramic tile, shells and other nonmetal materials.

Acrylic Fabric Double color sheet

Glass bottle Leather MDF

Stone Wood MDF

Packing and Shipping

Our laser machines package include 3 layers:
1, Outside package: Polywood case with metal belt
2, Middle package: We use foam to cover the machine.
3, Inner package: We use waterproof plastick bag to cover all the machine.

Certifications

Exhibition

Our factory

Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC router and Laser engraver. Our purpose is supply the machines with best ratio in quality to price. Our machine has exported to worldwide, such as: Uk, Poland, Finland, Croatia, Italy, Holland, United States, Mexico, Brazil, Colombia, Canada, Argentina, Russia, India, Thailand, Singapore, Malaysia, U.A.E an so on. In order to establish a long term business, we will give our distributor maximum profits to support your efforts to resell our products in your markets.Welcome friends from worldwide to visit our fatory and give us your valuable suggestions. We wish to establish long business relationship and friendship with you. We welcome more and more clients come to visit our factory and use our machine.

FAQ

Q1: Are you a factory or trading company? A: We are a manufacturer found in 2010. Q2: Where are you located? How can we visit you? A: We locates in Jinan city of Shandong, in the north of China.Tell us your flight nimber or train number,we will pick you up. Q3: How can I choose suitable machine? 2) What work table size you will need? A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us: 1) What work you will do? Usually we need 30% as deposit, balance paid before shipment. Q4: What's your payment terms? Delivery time and MOQ? A: We accept T/T(bank transfer), L/C, Paypal, West union, Paypal, etc. Delivery Time: 7-10 days after payment A: We have a professional package suitable for oversea transportation. Machine will be fixed well MOQ: 1set Q5: If I bought a machine, how could you make it safe while shipping. in the case. Q6: What's your quality control system? Q7: What's your after-sales service? A: All machines with CE and FDA certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm. A: 1) Warranty 1 year for whole machine. Fiber laser source 3 years. If you have any other questions, please write email to us or call us, we will reply you ASAP. 2) Engineers available service machinery overseas 3) 7X24hours online support and whole life maintenance.
