Metal/wood/die Board Laser Cutting Machine 1224 Good Price

Overview

Quick Details

Application:: LASER CUTTING

Model Number:: TS1224

Applicable Material:: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crytal

Condition:: New

Laser Type:: CO2

Cutting Speed:: 0-40000mm/min

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF

Cutting Thickness:: 20mm

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: DSP

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, FDA

Laser Power:: 80W

Highest scanning precision:: 2500DPI

Color separation:: Yes

Engraving speed:: 0-70,000mm/min

Control system:: DSP

Cutting speed:: 0-40,000mm/min

Graphic.format.supported:: BMP, PLT, DST, DXF, AI

Driving system:: Stepper motor

After-sales Service Provided:: Engineers available to service machinery overseas

Cutting Area:: 1200mm*2400mm

Supply Ability

Supply Ability:: 30 Set/Sets per Month

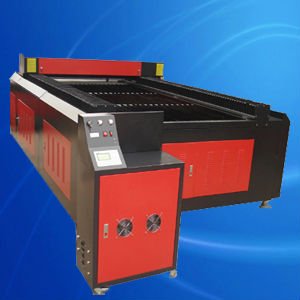

Metal/Wood/Die board laser cutting machine 1224 good price

Product Description

Description:

1,Imported linear rail, High precision stepper motor,Running at a high speed,Cutting is very stable, cutting surface smooth
2,High standards, high precision mechanical structure design,Data control is stable
3,Configuration of high-tech laser tube, high beam quality, long service life
4,Introduction of the United States imported reflector and projection lens, cutting strength is veryhigh
5,Machine is equipped with advanced laser cooling system, to guarantee the steady work for a long time
6,Good software compatibility, support the PLT, BMP, DXF graphics format, etc

1,Imported linear rail, High precision stepper motor,Running at a high speed,Cutting is very stable, cutting surface smooth

2,High standards, high precision mechanical structure design,Data control is stable

3,Configuration of high-tech laser tube, high beam quality, long service life

4,Introduction of the United States imported reflector and projection lens, cutting strength is veryhigh

5,Machine is equipped with advanced laser cooling system, to guarantee the steady work for a long time

6,Good software compatibility, support the PLT, BMP, DXF graphics format, etc

Applicable Industries:

Model industry (construction models, aviation and navigation models and wooden toys),advertisement,

decoration, arts and crafts, electronic and electric appliances, etc.

Applicable Materials:

Nonmetal materials such as acryl, wood planks (light planks, paulownia wood), bamboo ware. Double color sheets,

paper,leather, shells, coconut shells.ox horns, resin, animal grease, ABS boards, lampshade, etc.

Parameters

Model: TS 1224
Laser type	Sealed CO2 laser tube
Laser power
Laser output Control	0-100%software setting
Cutting Speed	0-40000mm/min
Engraving Scanning Speed	0-70000mm/min
Smallest character engraving	English 1.0mm*1.0mm
Highest Scanning Precision	2500DPI
Locating precision	≤±0.01mm
Power supply	220V/50HZ , 110V/60HZ
Driving system	3 phases stepper motor

Supported Graphic Format	PLT,AI,BMP,DST,DXF,etc
Compatible Software	CoreDraw,Photoshop,AutoCAD,TAJIMA,etc
Color separation	Yes

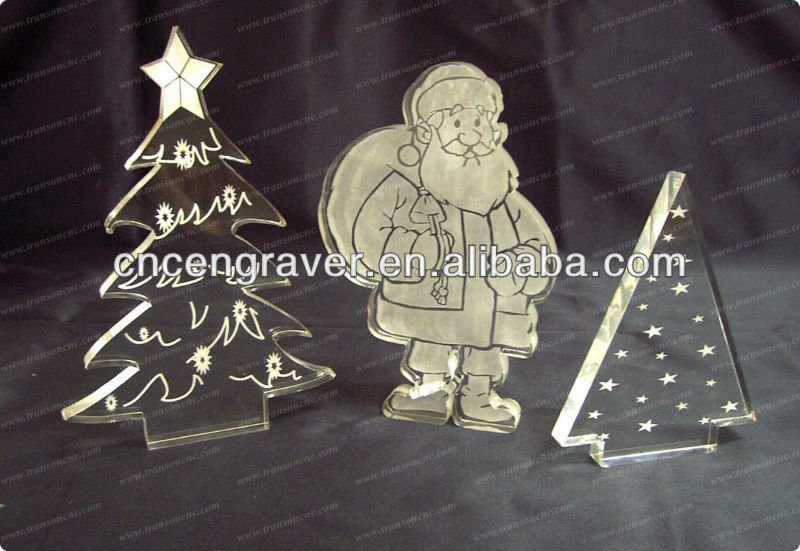

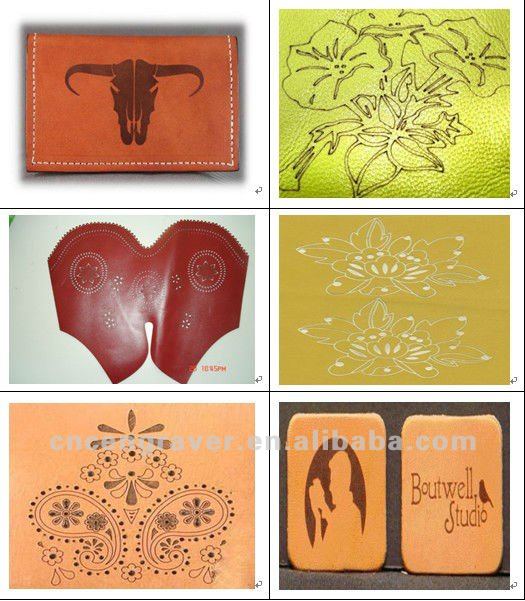

Samples

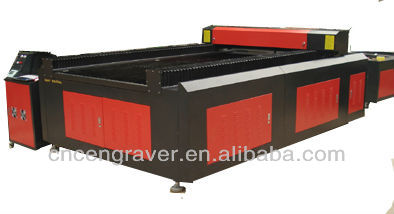

Metal/Wood/Die board laser cutting machine 1224 good price
