Memorial Stone Laser Ingraver Machine

Overview

Quick Details

Application:: Laser Engraving

Applicable Material:: Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Engraving Area:: 1300 x 900mm

Laser Type:: CO2

Engraving Speed:: 0-70m/min

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, PLT

Condition:: New

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, FDA

Warranty:: 1 Year

After-sales Service Provided:: Field maintenance and repair service, Engineers available to service machinery overseas

Laser power:: 100W/150W

Locating precision:: ±0.01mm

Supported software:: Coreldraw, Autocad, Photoshop, Tajima

Supply Ability

Supply Ability:: 500 Set/Sets per Month

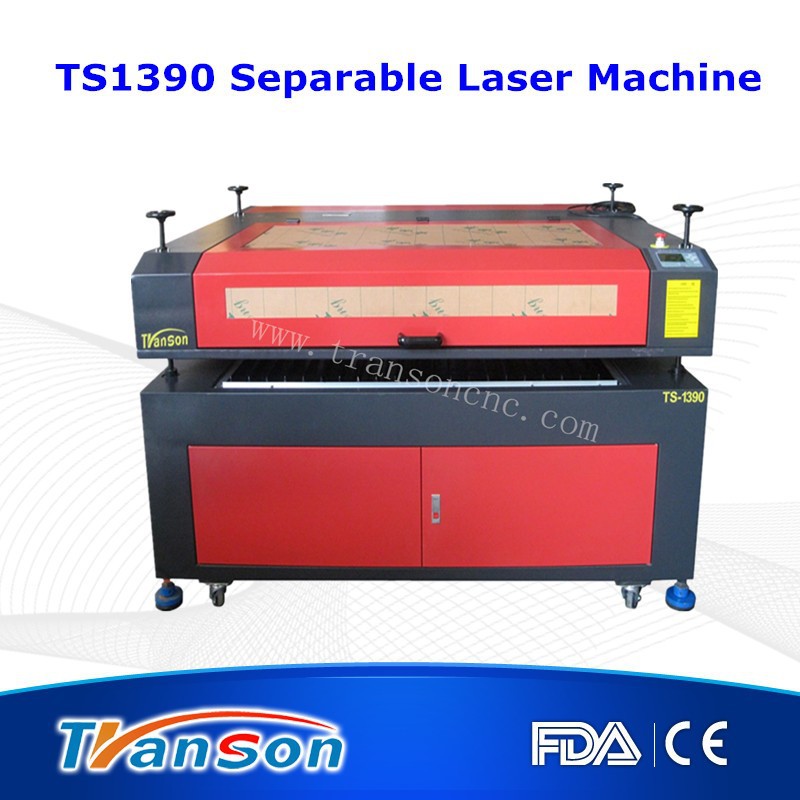

TS1390 Memorial Stone Laser Ingraver

Features

1).The upper part and the under part of the machine are separated. The upper part can put on large and thick

marbles/stones/granites directly.

2).The machine is double up-down worktable. The upper part and the under part can move up and down automatically,

which are very convenient for thick material.

Applicable Materials

Marble, granite, tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, glass and other

non-metal materials, etc.

Parameter

Model	TS1390
Working Area	1300mm*900mm
Laser Power	100W/150W
Cooling way	Water cooling
Engraving Speed	0-70,000mm/min
Cutting Speed	0-40,000mm/min
Location Precision	≤±0.01mm
Supported Graphic Format	BMP, PLT, AI, DST, DXF
Supported Software	AutoCAD, CorelDraw, Photoshop, TAJIMA
Highest Scanning Precision	2500 DPI
Color separation	Yes
Control system	DSP offline control system
Driving system	Stepper motor
Laser output	1-100% software setting
Intrerface	USB

Optional parts	1.Rotary tools 2 Water chillers 3 Red dot pointer

Optional parts

1.Rotary tools

2 Water chillers

3 Red dot pointer

Machine configuration

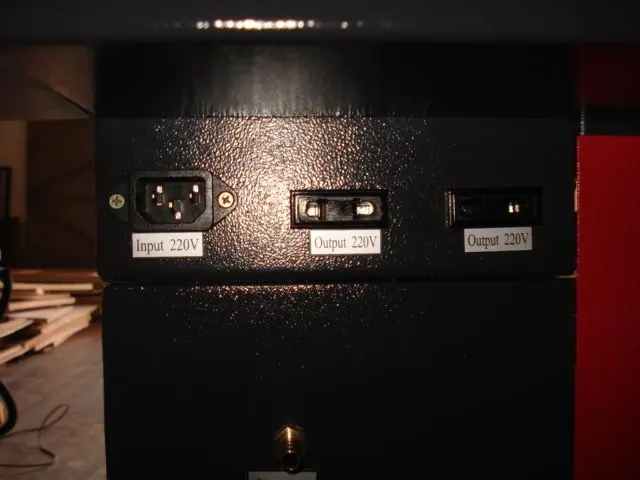

Switches

Water chiller which has a better cooling effect and if laser power is 80w or up, it is better to use water chiller

3 kinds of worktables

Red dot pointer which makes the laser beam seen

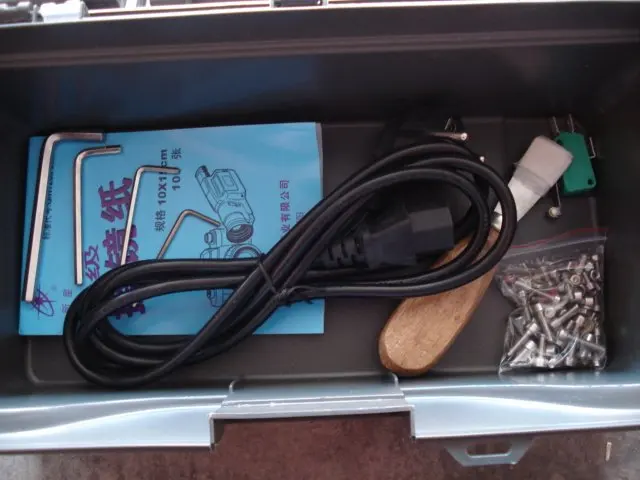

Tool box

Sample

CE certificate

The product has alleviated the need to hire a large workforce. From a cost-savings standpoint, it can reduce the size of a business's workforce. It can achieve a manufacturing precision of 0.05 mm. For manufacturers, the product brings about enormous economic benefits, because it helps improve productivity and cut expenditure on labor. It can achieve a manufacturing precision of 0.05 mm.
