Marbles Granite Printing Laser Engraving Machine Ts1060

Overview

Quick Details

Application:: Laser Engraving

Applicable Material:: Acrylic, Crytal, Glass, Leather, Paper, Plywood, Rubber, Stone, Wood, Other

Engraving Area:: 100cm*60cm / 39.4in*23.5in

Laser Type:: CO2

Engraving Speed:: 0-60000mm/min

Graphic Format Supported:: AI, BMP, Dst, DXF, PLT

Condition:: New

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Place of Origin:: Shandong, China

Brand Name:: Transon

Dimension(L*W*H):: 1450mmx950mmx1070mm

Certification:: ce

Warranty:: 1 Year

After-sales Service Provided:: Field maintenance and repair service

Laser power:: 60w/80w/100w

Cutting speed:: 0-40000mm/min

Power supply:: 220V/50HZ , 110V/60HZ

Graphic format supported:: BMP, PLT, DST, DXF, AI

Software supported:: CorelDraw, PhotoShop, AutoCAD,TAJIMA

Laser Output Control:: 0-100% software setting

Highest scanning precision:: 2500DPI

Driving system:: stepper motor

type:: marbles granite printing

cooling type:: water-cooled

Supply Ability

Supply Ability:: 30 Set/Sets per Month

Marbles granite printing laser engraving machine TS1060

Applicable Industries:

Marble Engraving industry, advertisement, gift, packaging, shoes, garments, toys, model, decoration, arts

and crafts, paper industry, etc.

Applicable Materials:

Marble, Granite, Tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, glass and other non-metal materials, etc.

Features:
1). Upper part and the under part of the machine are separated. The upper part can put on large and thick marbles/stones/granites directly.
2). The machine is with double updown worktable. The upper part and the under part can move up and down automatically, which are very convenient for thick material.

3). Very useful for small house doors.

Parameters:

Divisible Laser Engraving machine
Model	TSD1060
Working area	100cm60cm / 39.4in23.5in
Equipment size	1450mmx950mmx1070mm/57.1in37.4in42.1in
Laser power	60W
Laser type	CO2 sealed laser tube, water-cooled, 10.6um
Engraving speed	0-60000mm/min
Cutting speed	0-30000mm/min
Laser output control	1-100% software setting
Communication interface	USB
Smallest Character Engraving	English 1.0mm*1.0mm
Locating Precision	≤±0.01mm
Highest Scanning precision	2500DPI
Operating temperature	0 - 45°C
Cooling type	Water cooling
Power supply	220V/50HZ , 110V/60HZ
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving system	2 phases stepper motor	3 phase stepper motor
Net Weight	245kg
Gross weight	310Kgs
Package size	1560mmx1060mmx1320mm/61.4in41.7in52.0in
Spare Parts Recommend (R): Laser Tube(R), Lens(R), Mirror(R)
Optional Parts:
Water chiller Rotary tool with rollers/Rotary tool with clips Red dot positioner Honeycomb work table Auto focus

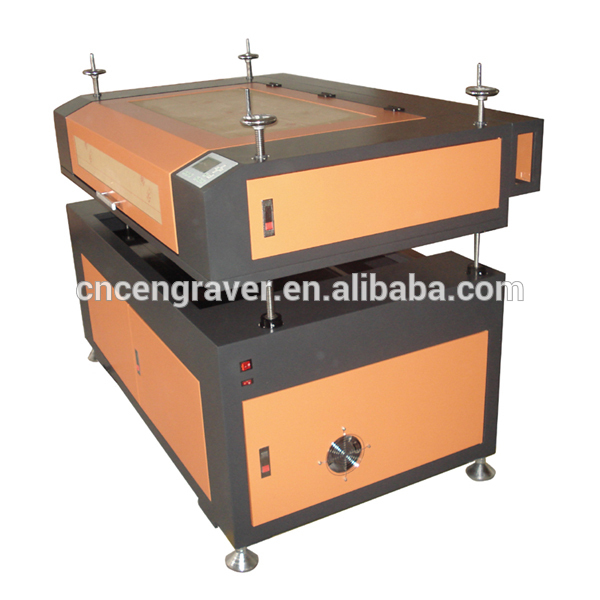

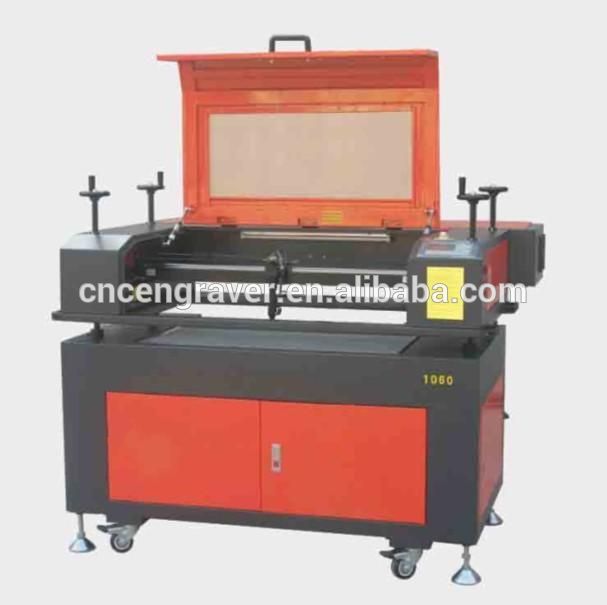

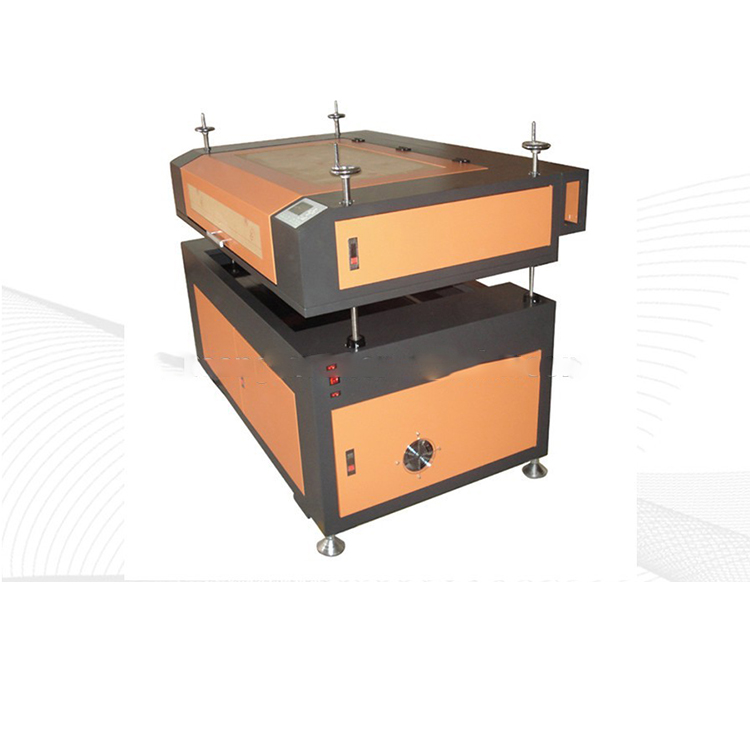

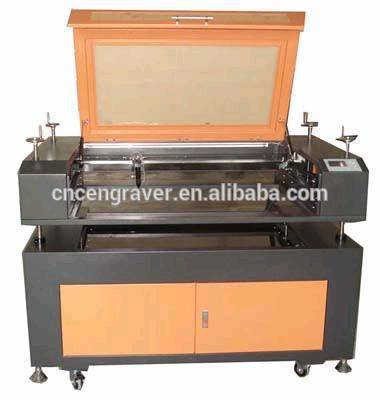

Machine photo

Detail

Accessories

water chiller ratary device

Red light pointer Autofocus

More model

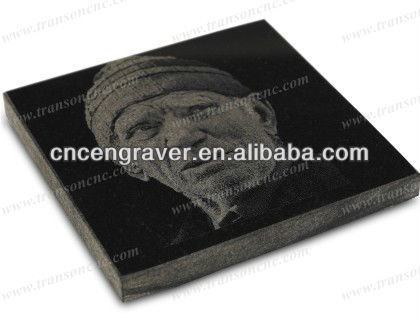

Samples

Packaging & Shipping
