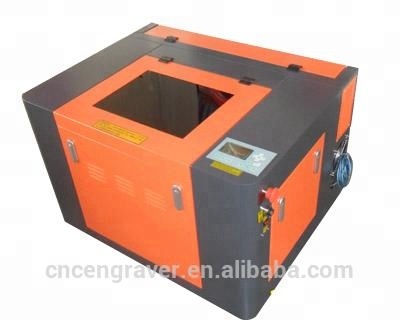

Low Cost Easy To Control Laser Label Die Cutting Machine Ts3050...

Overview

Quick Details

Application:: Laser Engraving

Applicable Material:: Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Wood, fabric plush component

Engraving Area:: 500*300mm

Laser Type:: CO2

Engraving Speed:: 0-60000mm/min

Graphic Format Supported:: AI, BMP, Dst, DXF, PLT

Condition:: New

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Place of Origin:: Shandong, China

Brand Name:: Transon

Certification:: ce, FDA

Warranty:: 1 Year

After-sales Service Provided:: Field maintenance and repair service, Engineers available to service machinery overseas

Power supply:: 220V±10% 50HZ or 110V±10% 60HZ

Laser type:: CO2 Laser tube

Supply Ability

Supply Ability:: 40 Set/Sets per Month

Low cost easy to control laser label die cutting machine TS3050

Model	TS5030
Laser Tube Power(standard)	40w/60W optional
Work Area (mm)	500*300mm
Gross power	1000w
Laser type	CO2 Laser tube
Cutting depth	Acryl 0-7mm
Max Engraving speed	X: wheel, Y: round guide: 500mm/s Square guide on both X,Y: 1200mm/s
Resetting positioning accuracy	<0.01mm
Minimum forming character	1x 1mm
Power supply	220V±10% 50HZ or 110V±10% 60HZ
Software supported	Direct output software: CorelDraw, AutoCAD, LASERCUT Design software: PhotoShop, ArtCut, Adobe Reader
Picture Formats Supported	PLT/DXF/BMP/AI (Direct output) JPG,GIF,PGN,TIF(Conversion output)
Water Cooling	Yes
Maximum Height of Material	80mm (Motorized Up-down adjustable)
Laser tube	1200-1500 hours
Machine Weight	80KG
Gross weight	120KG
Machine Dimension	900x690x580mm/35in27in23in
Packing Dimension	980x870x740mm/39in34in29in(Wooden box)
Certificate	CE and FDA
Assistant Equipment:	Water pump	Air pump	Exhaust Fan	Iron honeycomb worktable
Optional Accessory:	Red dot pointer	Rotary Clamp	Auto Focus	Water chiller	Stand

Product Description

1. The imported beeline lead rail, imported stepper engine with the lower speed running structure, the cutting is very stable, the cutting face is smooth.

2. High intention, high precision mechanic structure design, the data control is stable.

3. Choose high technical laser tube, the beam of light is of high quality and the life is long.

4. Input the American imported focusing lens and mental condensing lens, the cutting strength is high.

5. Co figurate the industrial water cooling system with protection, the continuum work ability is stable.

6. The compatibility of the software is good, which can support the format of PLT, BMP, and DXF etc.

Applicable Industries

Suitable for industries such as billboards,artistic gifts,crystal ornaments,paper-cut engraving,bamboo embossment,printing,garments and leather industries,embroidery,interior decoration and frame fabrication,etc.

Applicable Materials

Non-metal materials such as fabric,double-color sheets,acryl,glass,wood planks,paper,leather,rubber,marble,granite and tiles,etc.

The warranty after-sale service

1).one years quality guarantee for whole machine except of laser tube and lens ;

2).The machines delivery is quickly,delivery time is short.

3).24 hours technical support by e-mail, calling or door-to-door service
English software, user manual and detailed Videos CD

Using this product makes many dangerous and heavy-load works be done easily. This also helps relieve workers' stress and workload. Its protective cabinet contains an integrated fume extraction facility. Heavy tasks are now done with the help of this product. It produces more work with little energy and also within a limited time. Its protective cabinet contains an integrated fume extraction facility.

Low cost easy to control laser label die cutting machine TS3050
